EarthQuake IQ600 User Manual

EarthQuake IQ600 User Manual

Digital feedback class “j” subwoofer amplifier 600wrms

Advertisement

Quick Links

MODEL
IQ600
Sound That Will Move You.
Digital Feedback Class "J" Subwoofer Amplifier
600WRMS
U S E R M A N U A L
Earthquake Sound Corporation | 2727 McCone Avenue, Hayward CA 94545
www.earthquakesound.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQ600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EarthQuake IQ600

  • Page 1 MODEL IQ600 Sound That Will Move You. Digital Feedback Class “J” Subwoofer Amplifier 600WRMS U S E R M A N U A L Earthquake Sound Corporation | 2727 McCone Avenue, Hayward CA 94545 www.earthquakesound.com...
  • Page 2 The and sound quality. In addition Earthquake Sound’s IQ certification and patented information which is stored in microprocessor turns on a preset group delay Class “J”...
  • Page 3: Unpacking And Warnings

    IQ Suboowfer Power Amplifier Unpacking and Warnings ITEMIZED LIST OF INCLUDED ACCESSORIES: 1. One (1) AC Power Cable 2. One (1) Owners Manual 3. One (1) Registration Card 4. One (1) Remote Control 4. Rack Mounting Brackets and Screws When you have safely removed the amplifier from the packaging and placed it in a safe area, perform a thorough physical inspection and report any damage to the dealer that you purchased the unit from.
  • Page 4: Subwoofer Placement Guide

    To give you three- dimensional front-end bass that allows you to have a low frequency dynamic stage, Earthquake designed dual input circuits that use buffers to maintain your stereo separation on the processor side while mixing stereo front signals to produce 3D bass.
  • Page 5: Front And Back Panel Overview

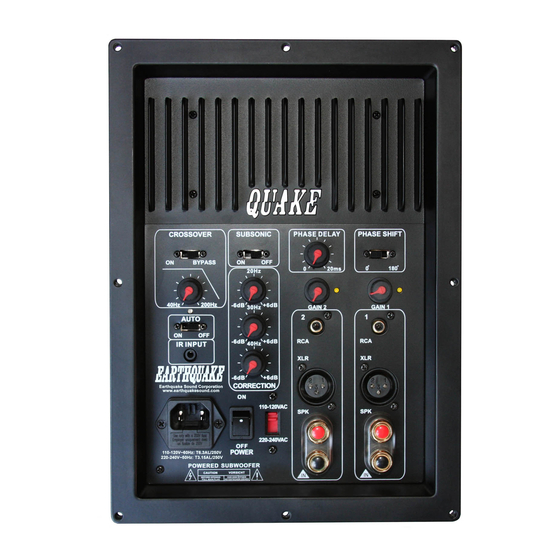

    IQ Suboowfer Power Amplifier Front and Back Panel Overview 25Hz, 12dB/Oct 0°-180° Phase Shift Switchable Subsonic Filter 0-20 MS.Phase Delay 20, 30 and 40Hz CROSSOVER SUBSONIC PHASE DELAY PHASE SHIFT 24dB/Oct Individual Channel Room Equalization Lowpass Gain Controls BY PASS With 12dB range 20ms 0°...
  • Page 6 IQ Suboowfer Power Amplifier Dual Subwoofer Stereo Connection Split L/R RCA's To Amplifiers INPUT LEFT/RIGHT Channels. LEFT The back side of a typical processor or receiver RIGHT MAIN AUDIO OUTPUTS LEFT LEFT SUR CENTER RIGHT RIGHT SUR CROSSOVER SUBSONIC PHASE DELAY PHASE SHIFT CROSSOVER SUBSONIC...
  • Page 7 IQ Suboowfer Power Amplifier Single Subwoofer Mono Connection The back side of a typical processor or receiver MAIN AUDIO OUTPUTS LEFT LEFT SUR CENTER RIGHT RIGHT SUR CROSSOVER SUBSONIC PHASE DELAY PHASE SHIFT BY PASS 20ms 0° 180° 20Hz -40Hz 200Hz -6dB +6dB...
  • Page 8: Room Correction

    IQ Suboowfer Power Amplifier Room Correction Specifications Are Subject To Change Without Notice...
  • Page 9: Amplifier Specifications

    Amplifier Specifications IQ Suboowfer Power Amplifier POWER OUTPUT 1 x 700 watts RMS @ 4 ohms Mono (1% distortion) 1 x 700 watts RMS @ 2 ohms Mono (1% distortion) 1 x 350 watts RMS @ 8 ohms Mono (1% distortion) 20Hz-2kHz FREQUENCY RESPONSE TOTAL HARMONIC DISTORTION...
  • Page 10 Shipping Instructions: Earthquake agrees to repair or replace - at our option - all such defective Product/s must be packaged in its original protective box/s to minimize products/parts subject to the following provisions: transport damage.
  • Page 11 REGULATIONS WHICH WERE IN EFFECT AT THE TIME OF THIS exceeding 85dB can be dangerous with constant exposure. Set PUBLICATION FOR PERMISSIBLE NOISE EXPOSURE, your audio system to a comfortable loudness level. Earthquake 1 - 1 1/2 PER 29CFR1910.95, TABLE G-16.
  • Page 12 Sound That Will Move You. Earthquake Sound Corporation • www.earthquakesound.com • 2727 McCone Avenue Hayward, California 94545 • Phone: 510-732-1000, Fax: 510-732-1095...
