Summary of Contents for EarthQuake MiNi D1000

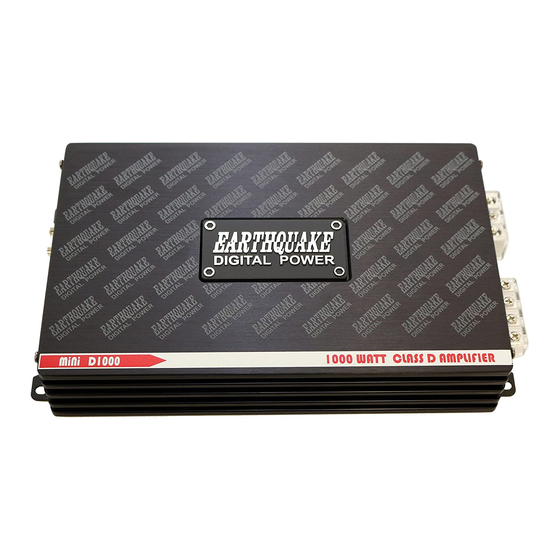

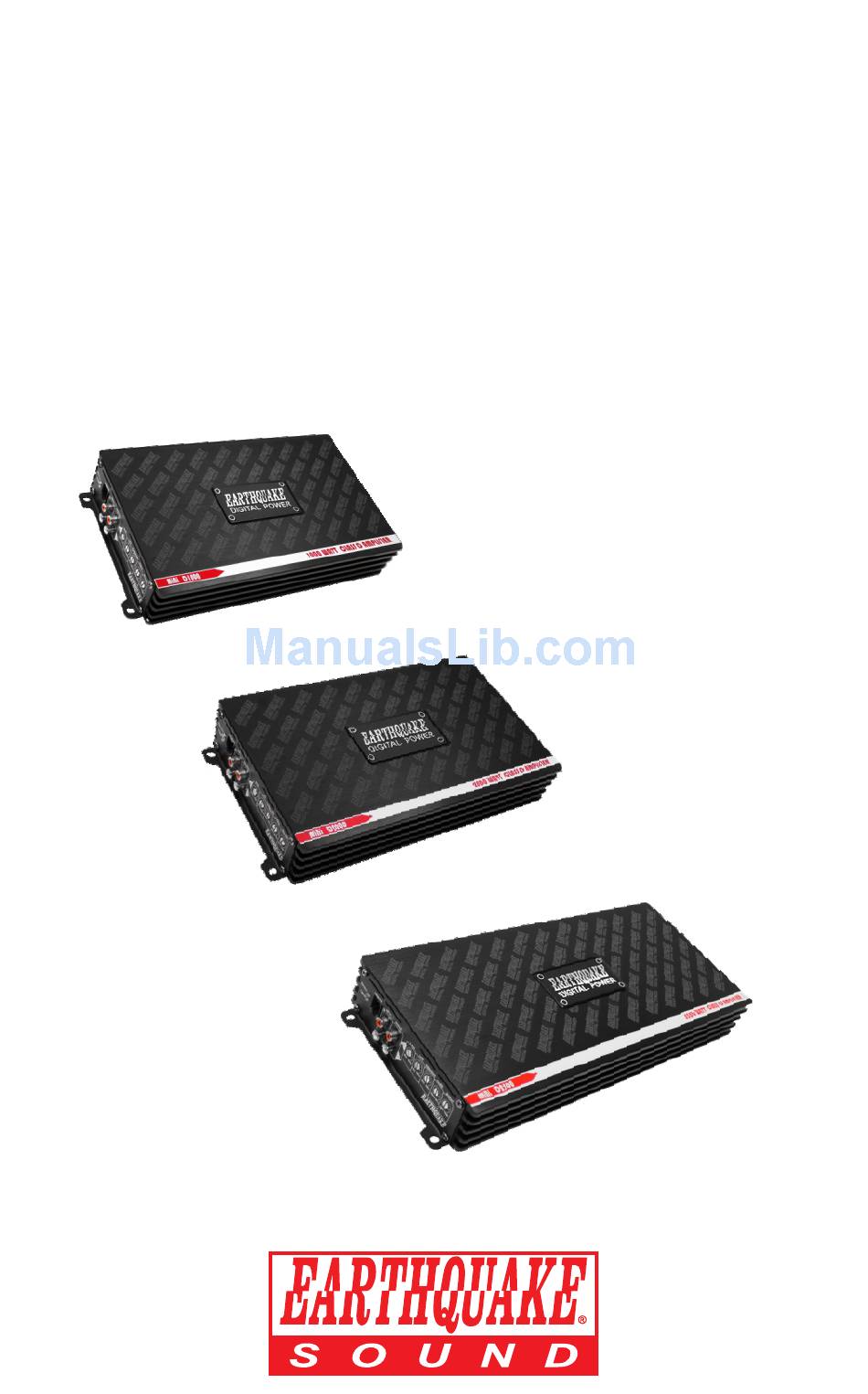

- Page 1 MiNi D Mono Amplifiers INSTALLATION MANUAL MiNi D1000 MiNi D2000 MiNi D2500 The Sound That Will Move You...
- Page 2 THANK YOU Thank you for choosing Earthquake Sound’s line of MiNi D amplifiers, the best way to enhance your factory mobile audio system. With proper installation and responsible listening, your amplifier(s) will give you years of near perfect sound reproduction.
- Page 3 MiNi D AMPLIFIERS INTRODUCING The MiNi D amplifier series is the most efficient class D series ever made, running cool as they deliver unbelievable power despite their compact size. Designed with the patented Optical Control Circuitry, each MiNi D amplifier comes with a built in protection fuse which can handle 1 to 4-Ohm loads (it is most efficient in 2-Ohm installation).
- Page 4 MiNi D AMPLIFIER FUNCTIONS AND FEATURES MiNi D POWER LED: When lit up, the amplifier is functioning properly. PROTECTION LED: When lit up upon powering on, the amplifier may be in self-test mode. If this LED stays on, shut down the amplifier and locate what may have triggered the amplifier to protection mode.
- Page 5 MiNi D AMPLIFIER FUNCTIONS AND FEATURES 13 14 15 SPEAKER CONNECTION: These terminals have been internally bridged/jumped. When connecting to both sets of terminals, there is a 2- Ohm minimum impedance per terminal. USB POWER PORT: This port provides 5.2V (2A) of power and can be used to ®...
-
Page 6: Wiring Preparations
MiNi D AMPLIFIER WIRING PREPARATIONS Test the alternator output. Factory alternators will produce 60 - 80 amperes at best. Wear and heat will reduce the output by 40%. Alternator ground (-) must be reinforced. Use a 4-gauge cable instead of the factory 8-gauge. -
Page 7: Wiring Configurations
MiNi D AMPLIFIER WIRING CONFIGURATIONS ONE SINGLE SUBWOOFER (1-OHM MINIMUM) ONE DUAL 4-OHM SUBWOOFER @ 8-OHM TWO SINGLE 4-OHM SUBWOOFERS @ 2-OHM www.earthquakesound.com... - Page 8 MiNi D AMPLIFIER WIRING CONFIGURATIONS TWO DUAL 4-OHM SUBWOOFERS @ 1-OHM FOUR DUAL 4-OHM SUBWOOFERS @ 2-OHM (PARALLEL) Specifications are subject to change without notice...
- Page 9 510-732-1095 © Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document.
- Page 10 MiNi D AMPLIFIER SETTINGS SELECTING LOW PASS FILTER FREQUENCY ½ -3dB 45Hz 55Hz 132Hz 177Hz SELECTING SUBSONIC FILTER FREQUENCY ½ 28Hz 37Hz 47Hz 60Hz Specifications are subject to change without notice...
- Page 11 SELECTING BASS BOOST FREQUENCY ½ 33Hz 38Hz 60Hz 85Hz SUGGESTED COMBINED SETTING ½ www.earthquakesound.com...
-
Page 12: Specifications
MiNi D AMPLIFIERS SPECIFICATIONS MiNi MiNi MiNi D1000 D2000 D2500 Amplifier Class Amplifier Output Mono Mono Mono Max Power 1000 Watts 2000 Watts 2500 Watts 18Hz Variable 18Hz Variable 18Hz Variable Subsonic Filter Level Level Level Crossover Variable 40 - 180Hz 40 - 180Hz 40 - 180Hz Low Pass... - Page 13 MiNi D AMPLIFIERS SPECIFICATIONS MiNi D1000 ” (160mm) ” (250mm) ” (49mm) 10 / ” (277mm) MiNi D2000 ” (160mm) 10 / ” (268mm) ” (49mm) 11 / ” (295mm) MiNi D2500 ” (160mm) 14 / ” (344mm) ” (49mm) 14 / ”...
- Page 14 If products were received with improper protective packaging, customer will be charged product repackaging in addition to labor, parts and shipping charges. (C) Earthquake agrees to repair or replace - at our option - all such defective products/parts subject to the following provisions: ...
-
Page 15: Serial Number
Earthquake Sound Corp. 2727 Mc Cone Avenue Hayward, CA 94545 Tel: (510) 732-1000 You are responsible for the cost of shipping the product to Earthquake Sound Corporation. (G) Disputes Resolution: All disputes - between clients and Earthquake Sound Corporation - resulting from the one (1) year limited warranty policy must be resolved according to the laws &... - Page 16 The Sound That Will Move You Earthquake Sound reserves the right to amend the details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation • 2727 McCone Avenue. Hayward, CA 94545. USA www.earthquakesound.com...
