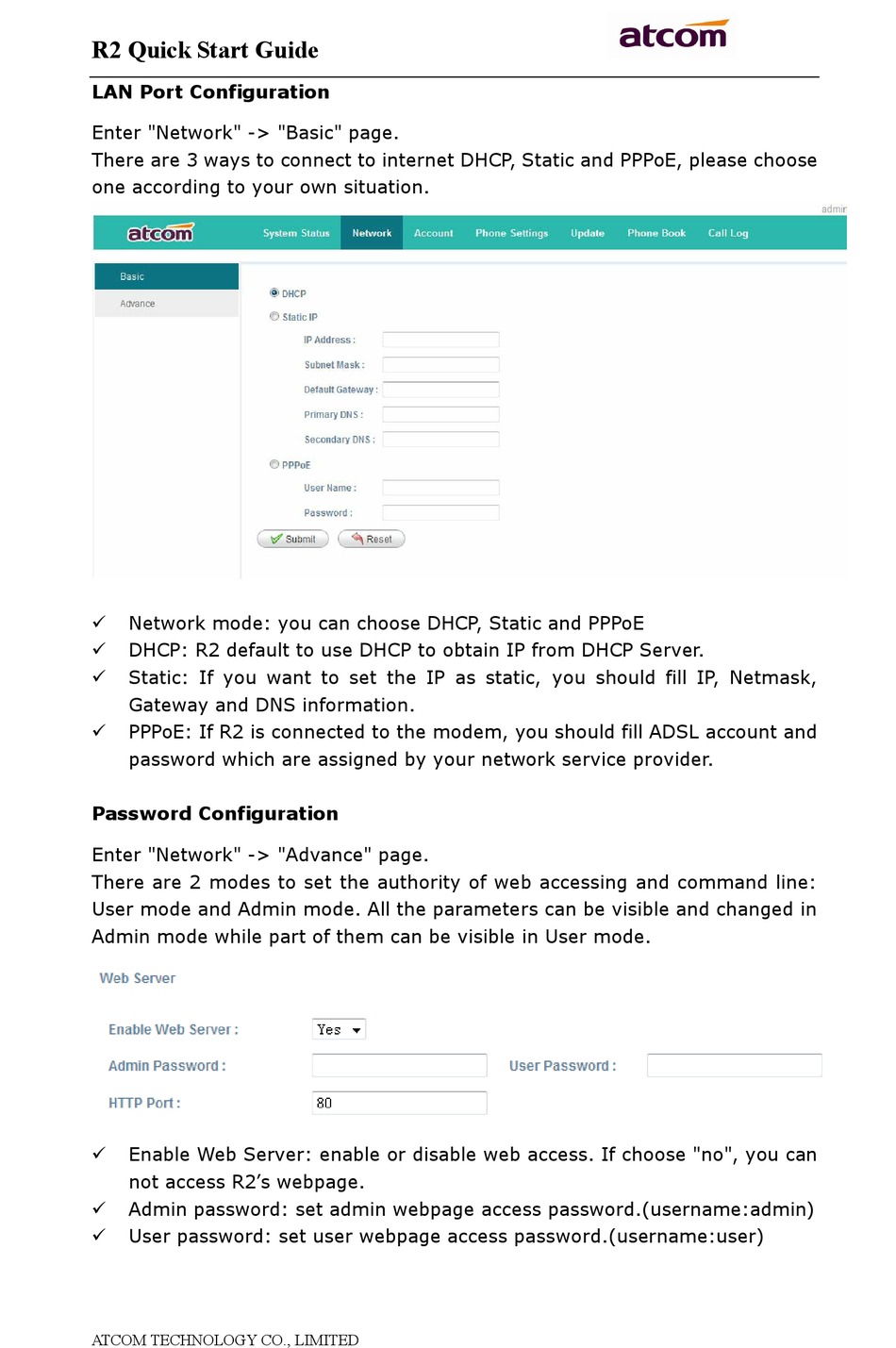

ATCOM r2 Quick Start Manual page 10

R2 Quick Start Guide
LAN Port Configuration
Enter "Network" -> "Basic" page.
There are 3 ways to connect to internet DHCP, Static and PPPoE, please choose
one according to your own situation.
 Network mode: you can choose DHCP, Static and PPPoE
 DHCP: R2 default to use DHCP to obtain IP from DHCP Server.
 Static: If you want to set the IP as static, you should fill IP, Netmask,
Gateway and DNS information.
 PPPoE: If R2 is connected to the modem, you should fill ADSL account and
password which are assigned by your network service provider.
Password Configuration
Enter "Network" -> "Advance" page.
There are 2 modes to set the authority of web accessing and command line:
User mode and Admin mode. All the parameters can be visible and changed in
Admin mode while part of them can be visible in User mode.
 Enable Web Server: enable or disable web access. If choose "no", you can
not access R2's webpage.

Admin password: set admin webpage access password.(username:admin)
 User password: set user webpage access password.(username:user)
