Haier AP242ACAAA Technical Manual page 27

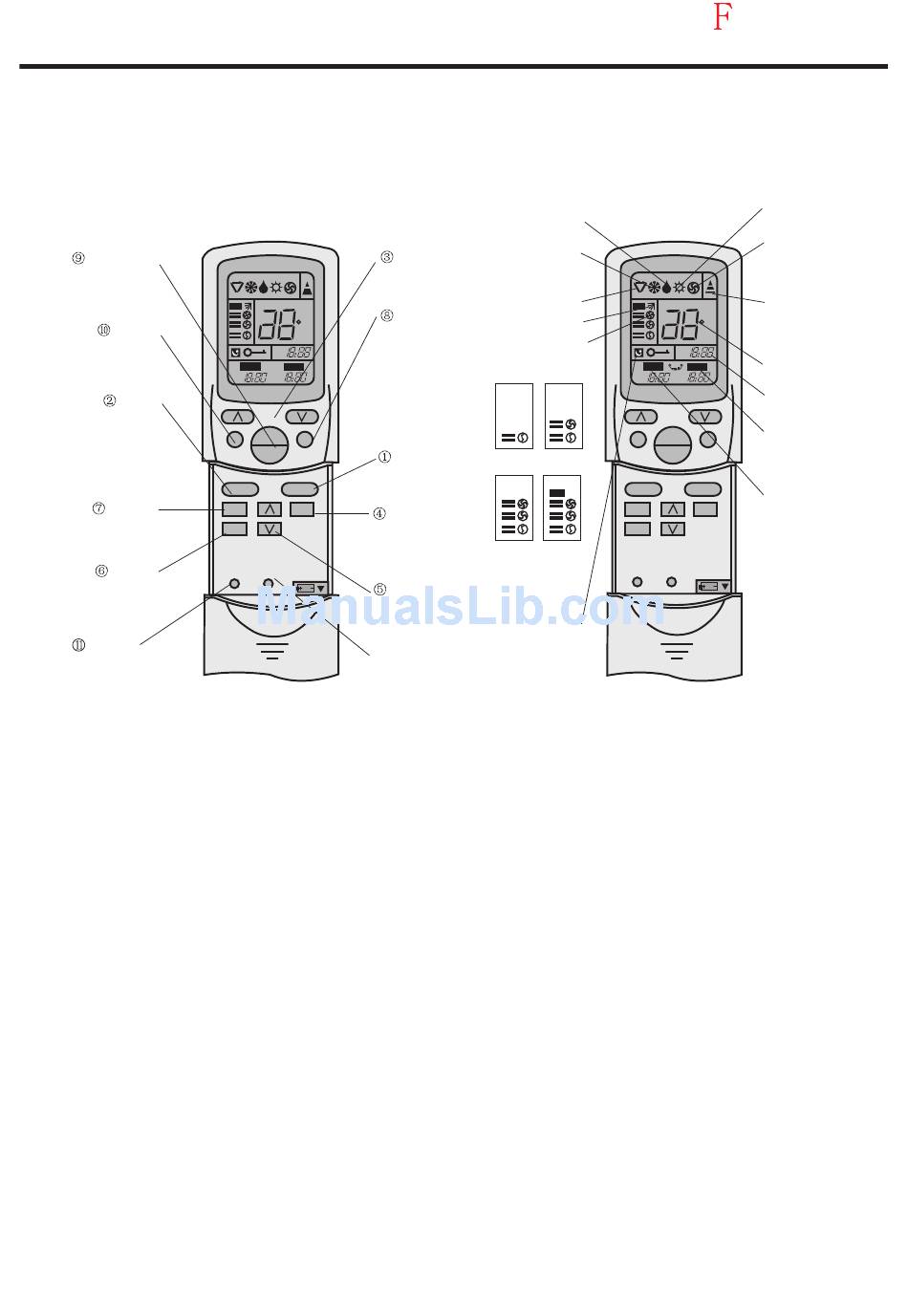

Remote controlled operation
Power ON/OFF
Used for unit
start and stop.
AUTO
SWING
Used to set auto
fan direction
AM
PM
MODE
Used to select
AUTO run,
COOL, DRY,
SWING
HEAT and FAN
operation.
MODE
CLOCK
CLOCK
Used to correct
TIMER
time.
TIMER
LOCK
Used to lock buttons
and LCD display.
LOCK
Used to lock the
kenote-controller's
buttons and LED display
TEMP
Used to select your
desired temp.
FAN
C
Used to select fan
speed: LOW,MID,
AM
PM
HIGH,AUTO.
ON OFF
AM
PM
TEMP
ON
OFF
FAN
SLEEP
Used to select
sleep mode.
SLEEP
SET
SET
Used to confirm
Timer and
Clock setting
RESET
HOUR
Used to set clock
and timer setting.
RESET
Used to reset the controller
back to normal condition.
DRY
COOL
AUTO
SWING
FAN SPEED
LOW MID
HIGH AUTO
AUTO
SLEEP
17
HEAT
FAN
OPERATION
SIGNAL
SENDING
AUTO
C
AM
PM
TEMP
ON OFF
AM AM
PM
PM
CLOCK
TEMP
TIMER OFF
ON
OFF
SWING FAN
MODE SLEEP
TIMER ON
CLOCK SET
TIMER
LOCK RESET
