9. Opening the entrance of a Multi-entry Panel

With Password
1) Open the entrance with resident password.
Note : The doors do not open by default password "1234"
Only after changing default password, can you use this function.
Press resident number and "
①
② Press PIN number and "
The door opens with the "OPEN" message display on the LCD screen.
2) Open the entrance with Building password.
Enter "9900" and "
①
Enter the Building Password and the "
②
The door opens with the "OPEN" message display on the LCD screen.
8
" button
" button
"button
" button

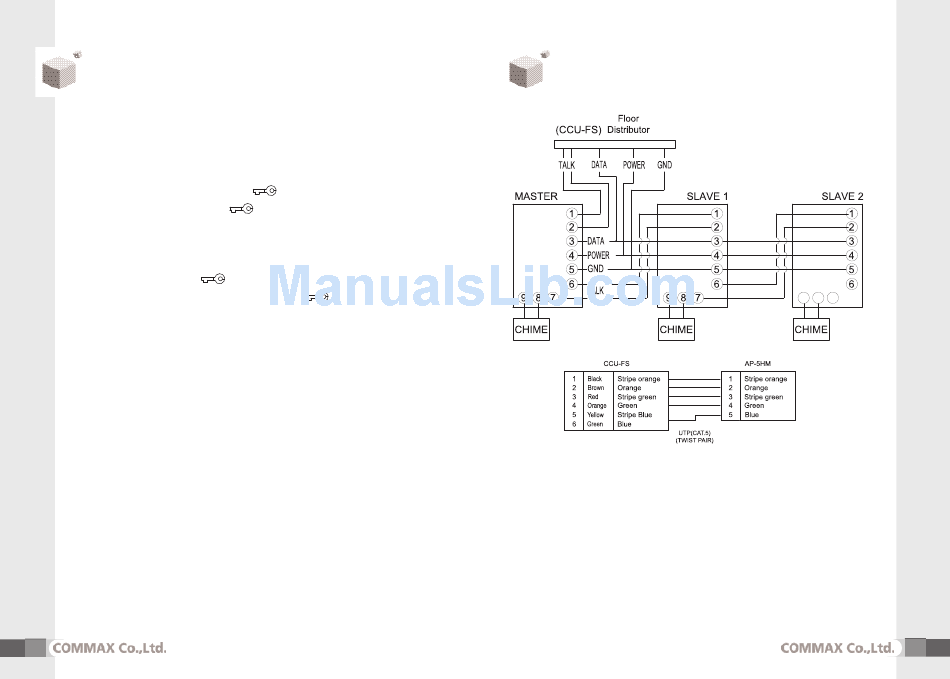

10. Wiring

2)Wiring
①
Please pay attention to the polarity of the wires, Units will not
work properely when mis-wiring
* Use UTP(CAT.5) cable and be careful to match the color of
the wires shown to the left
②
The power of Master unit supplied from Floor distrbutor
without additional power supply.
9 8 7
9
