Chapter 1
1. 2. 2.

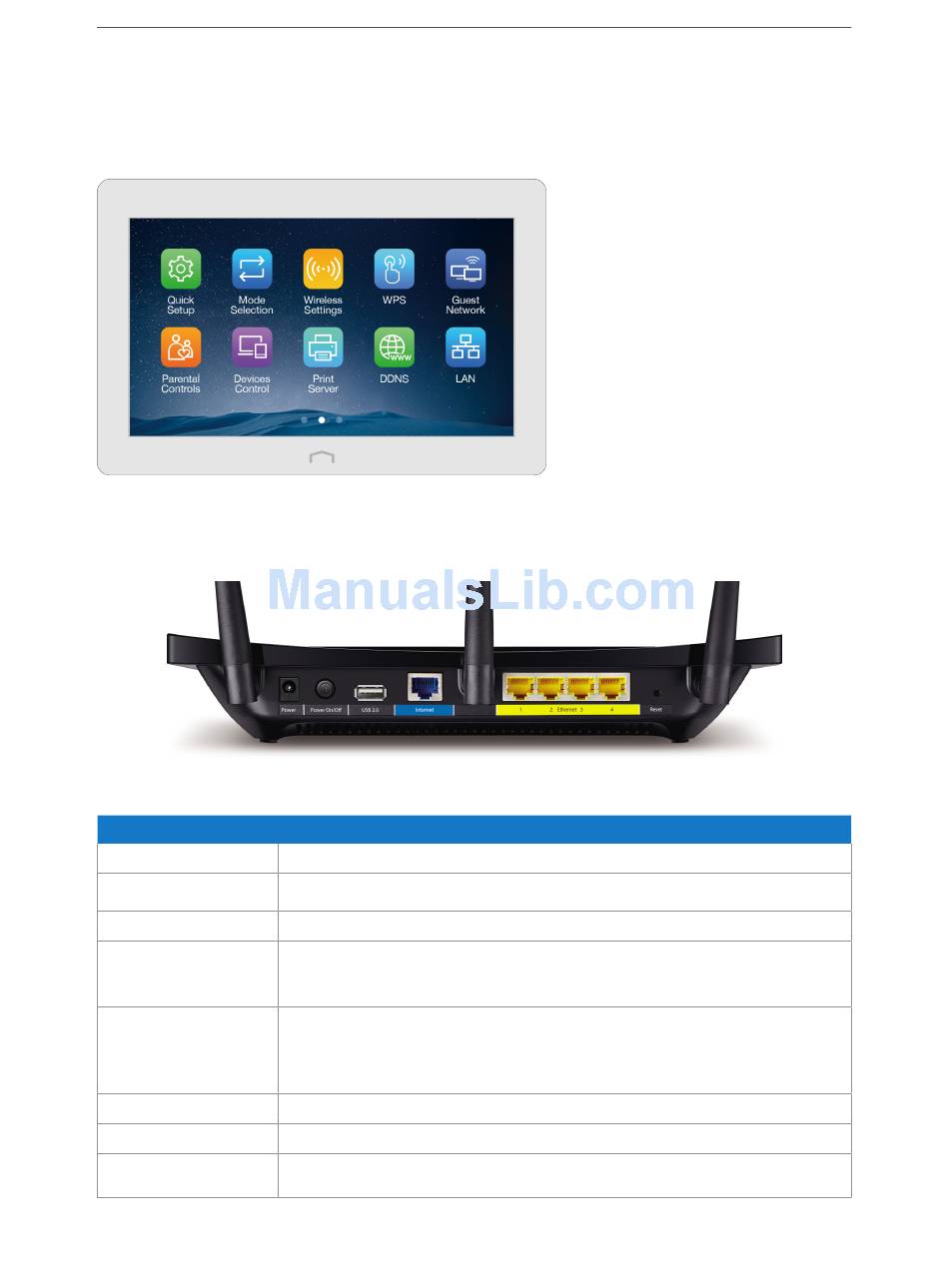

Menu Screen

Tap the icons to perform various functions of your Touch P5, such as Quick Setup, Mode
Selection, Parental Controls, etc.
1. 3.

Button and Port Explanations

The router's buttons and ports (view from left to right) are located on the back panel.
Item
Power Port
Power On/Off Button
USB 2.0 Port
USB 3.0 Port
Internet Port
Ethernet Ports (1, 2, 3, 4) For connecting the router to your PC or other Ethernet-enabled devices.
Reset Button
Antennas
For connecting the router to a power socket via the provided power adapter.
Press this button to power on or off the router.
For connecting to a 2.0 USB storage device or a 2.0 USB printer.
It's on the right front corner of your Touch P5.
For connecting to a 3.0 USB storage device or a 3.0 USB printer. It is also compatible
with USB 2.0 devices.
In router mode, for connecting to a DSL/Cable modem, or Ethernet.
In repeater mode, for connecting to an Ethernet-enabled device, working as an
Ethernet port.
In access point mode, for connecting to a host router or the Internet.
Press and hold the Reset button until the Touch P5 logo displays.
Used for wireless operation and data transmit. Upright them for the best Wi-Fi
performance.
Get to Know About You Router
Description
