TP-Link Archer C4000 Quick Installation Manual

Quick Installation Guide
AC4000 MU-MIMO Tri-Band Wi-Fi Router
Image may differ from your actual product.

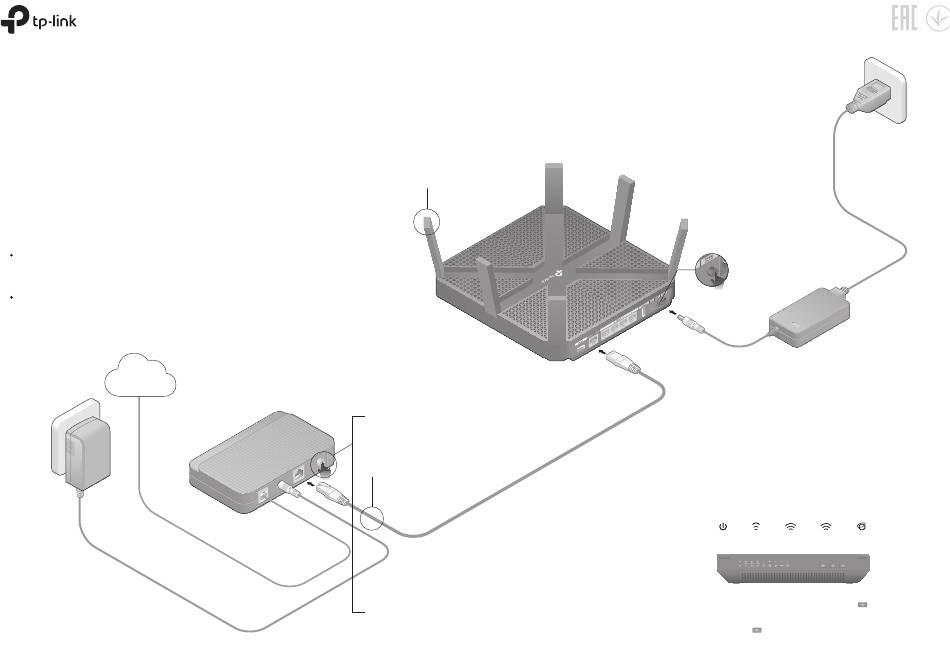

Connect the Hardware
If your internet connection is through an Ethernet cable from the wall instead of
through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to
the router's Internet port, then follow steps 1, 5 and 6 to complete the hardware
connection.
If you already have a router and want to configure this new router as an access
point to extend your network, refer to the Access Point Mode section on the
back page.
Internet
Power adapter Modem
1
Place the router horizontally and extend the
antennas to the maximum angle.
Note: For best performance, horizontal installation
is recommended.
Antenna's direction and position can affect
performance in vertical installation situations.
Router
2
Turn off the modem, and
remove the backup battery
if it has one.
3
Connect the modem to the
Internet port on your router
with an Ethernet cable.
4
Turn on the modem, and
then wait about 2 minutes
for it to restart.
Power adapter
5
Turn on the router.
6
Verify that the following LEDs turn solid on before
continuing with the configuration.
Power 2.4GHz 5GHz-1 5GHz-2 Internet
On On On On On
Notes:
1. If all the LEDs are off, press the LED On/Off button for about 1
second, then check the LEDs again.
2. If the 2.4GHz, 5GHz-1, and 5GHz-2 LEDs are off, press the Wi-Fi
On/Off button for about 1 second, then the three LEDs should
turn solid on.
