Position Your Router - TP-Link TOUCH P5 User Manual

Chapter 1
1. 4.

Position Your Router

• The product should not be located where it will be exposed to moisture or excessive
heat.
• Place the router in a location where it can be connected to various devices as well as
to a power source.
• Make sure the cables and power cord are safely placed out of the way so they do not
create a tripping hazard.
• The router can be placed on a shelf or desktop.
• Keep the router away from strong electromagnetic radiation and devices sensitive of
electromagnetic.

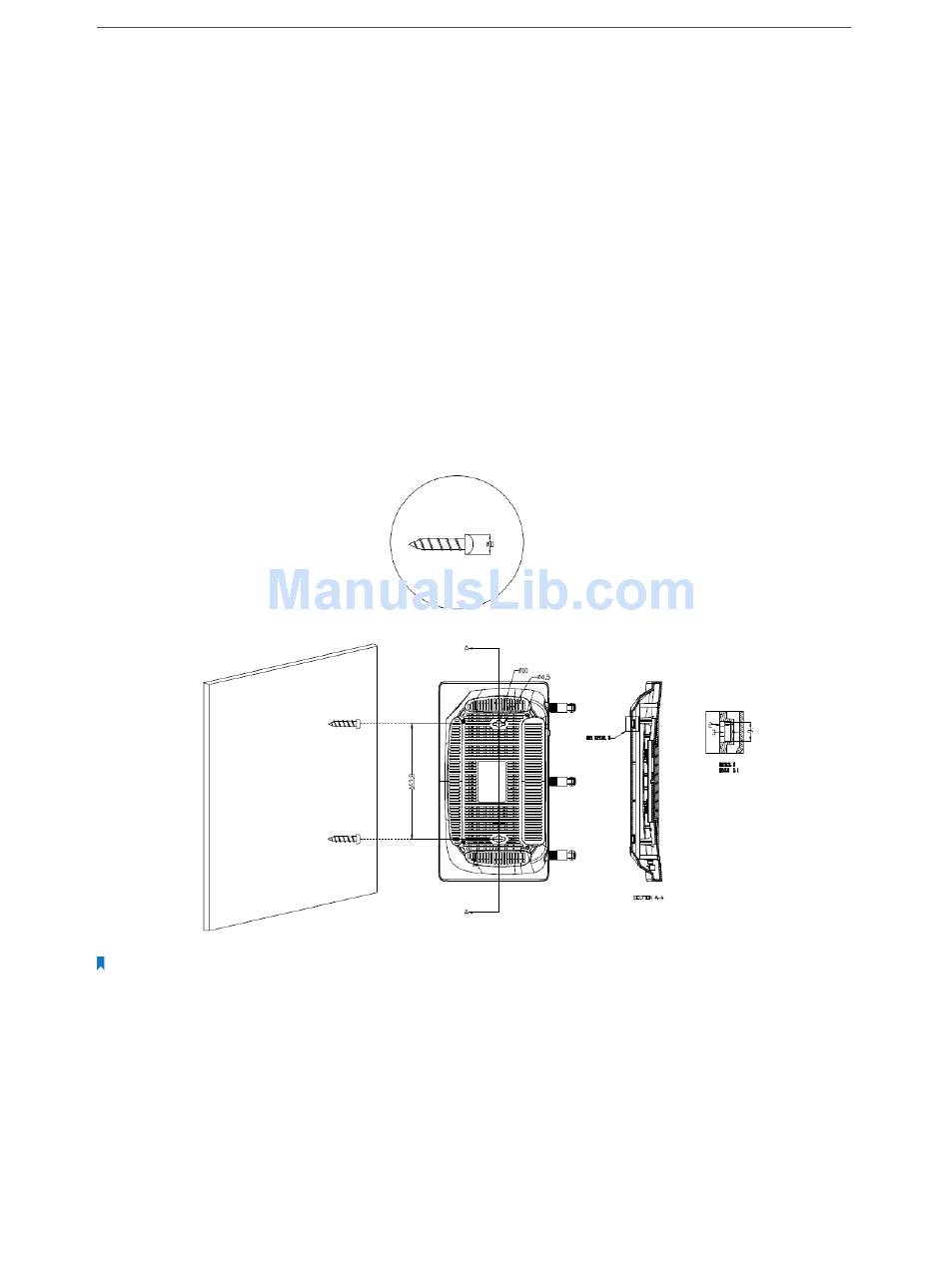

Generally, your router is placed on a horizontal surface. It can also be mounted on awall
as shown below.
Note:
The diameter of the screws should range from 3.5mm to 6mm, and the distance of two screws is 163.8mm. The
screws that project from the wall need around 4mm based, and the length of the screws need to be at least 20mm
to withstand the product.
Get to Know About You Router
5
