TP-Link Archer AXE5400 User Manual

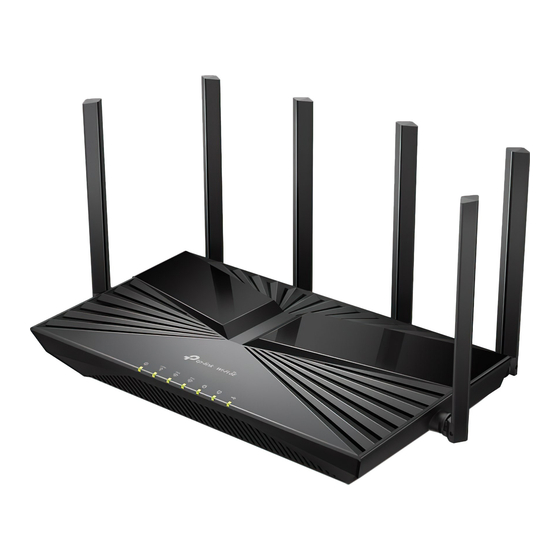

Axe5400 tri-band wi-fi 6e router
Hide thumbs Also See for Archer AXE5400:
Table of Contents

Advertisement

Quick Links

User Guide
AXE5400 Tri-Band Wi-Fi 6E Router
Archer AXE5400
© 2023 TP-Link
1910013450 REV1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Archer AXE5400 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link Archer AXE5400

Summary of Contents for TP-Link Archer AXE5400

  • Page 1 User Guide AXE5400 Tri-Band Wi-Fi 6E Router Archer AXE5400 © 2023 TP-Link 1910013450 REV1.0.0...

  • Page 2: Table Of Contents

    5. 4. Manage the Router via the TP-Link Tether App ......27 Chapter 6 Wireless Settings 6.
  • Page 3 6. 3. 3. Push the WPS Button..........33 6.
  • Page 4 Chapter 14 Customize Your Network Settings 14. 1. Change the LAN Settings ........... 88 14.

  • Page 5: About This Guide

    The Quick Installation Guide can be found where you find this guide or inside the package of the router. Specifications can be found on the product page at https://www.tp-link.com. TP-Link Community is provided for you to discuss our products and share knowledge at https://community.tp-link.com. Our Technical Support contact information can be found at the...
  • Page 6 * HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link com/homeshield for more information. * Use of WPA3 requires clients to also support the corresponding feature. * This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.

  • Page 7: Chapter 1 Get To Know About Your Router

    Chapter Get to Know About Your Router This chapter introduces what the router can do and shows its appearance. It chapter contains the following sections: • Product Overview • Appearance...

  • Page 8: Product Overview

    AR/VR, 8K streaming and more. Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive Tether app and powerful web interface.

  • Page 9: Back Panel

    Chapter 1 Get to Know About Your Router Name Status Indication The 2.4 GHz wireless band is enabled. 2.4 GHz The 2.4 GHz wireless band is disabled. The 5 GHz wireless band is enabled. 5 GHz The 5 GHz wireless band is disabled. The 6 GHz wireless band is enabled.
  • Page 10 Chapter 1 Get to Know About Your Router The following parts (view from up to down) are located on the back panel. Item Description LAN Port (1-3) For connecting your PC or other wired devices to the router. 1 Gbps WAN/LAN Port For connecting to a DSL/Cable modem, or an Ethernet jack.

  • Page 11: Chapter 2 Connect The Hardware

    Chapter Connect the Hardware This chapter contains the following sections: • Position Your Router • Connect Your Router...

  • Page 12: Position Your Router

    Chapter 2 Connect the Hardware Position Your Router • The product should not be located in a place where it will be exposed to moisture or excessive heat. • Place the router in a location where it can be connected to multiple devices as well as to a power source.

  • Page 13: Connect Your Router

    Chapter 2 Connect the Hardware Connect Your Router Before you start: 1 ) Turn off your modem, if any, and remove the backup battery if it has one. 2 ) Place the router horizontally and orient the antennas vertically. If your internet comes from an Ethernet outlet instead of a DSL / Cable / Satellite modem, connect the router’s WAN port to it, then follow steps 3 and 4 to complete the hardware connection.
  • Page 14 WPS. 1 ) Tap the WPS icon on the device’s screen. Here we take an Android phone for instance. 2 ) Within two minutes, press the WPS button on your router. WLAN TP-Link MyHome David HomeNetwork TP-Link_Home...

  • Page 15: Chapter 3 Log In To Your Router

    Chapter Log In to Your Router...
  • Page 16 Chapter 3 Log In to Your Router With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Mac OS or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

  • Page 17: Chapter 4 Set Up Internet Connection

    Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service. It contains the following sections: • Use Quick Setup Wizard • Quick Setup Via TP-Link Tether App • Manually Set Up Your Internet Connection • Set Up the Router as an Access Point •...

  • Page 18: Use Quick Setup Wizard

    • To learn more about the TP-Link Cloud service, please refer to the TP-Link Cloud Service section. • If you do not want to register a TP-Link ID now, you may click Skip to proceed. • If you have changed the preset wireless network name (SSID) and wireless password during the Quick Setup process, all your wireless devices must use the new SSID and password to connect to the router.

  • Page 19: Manually Set Up Your Internet Connection

    ISP. Follow the steps below to check or modify your internet connection settings. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
  • Page 20 Chapter 4 Set Up Internet Connection 2 ) If you choose Static IP, enter the information provided by your ISP in the corresponding fields. 3 ) If you choose PPPoE, enter the username password provided by your ISP. PPPoE users usually have DSL cable modems.
  • Page 21 Chapter 4 Set Up Internet Connection 4 ) If you choose L2TP, enter the username password and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen. 5 ) If you choose PPTP, enter the username and password, and choose the Secondary Connection...

  • Page 22: Set Up The Router As An Access Point

    Set Up the Router as an Access Point The router can work as an access point, transforming your existing wired network to a wireless one. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 23: Set Up An Ipv6 Internet Connection

    Your ISP provides information about one of the following IPv6 internet connection types: PPPoE, Dynamic IP(SLAAC/DHCPv6), Static IP, 6to4 tunnel, Pass-Through (Bridge). 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
  • Page 24 Chapter 4 Set Up Internet Connection Dynamic IP(SLAAC/DHCPv6): Click Advanced to input further information if your ISP requires. Click SAVE and then click Renew. PPPoE: By default, the router uses the IPv4 account to connect to the IPv6 server. Click Advanced to input further information if your ISP requires.
  • Page 25 Chapter 4 Set Up Internet Connection 6to4 Tunnel: An IPv4 internet connection type is a prerequisite for this connection type (Manually Set Up Your Internet Connection). Click Advanced input further information if your ISP requires. Click SAVE and then click Connect. Pass-Through (Bridge): Click SAVE...
  • Page 26 Chapter 4 Set Up Internet Connection 5. Configure LAN ports. Windows users are recommended to choose from the first two types. Fill in Address Prefix provided by your ISP, and click SAVE. 6. Click Status to check whether you have successfully set up an IPv6 connection. Tips: Visit the section if there is no internet connection.

  • Page 27: Chapter 5 Tp-Link Cloud Service

    TP-Link Cloud service provides a better way to manage your cloud devices. Log in to your router with a TP-Link ID, and you can easily monitor and manage your home network when you are out and about via the Tether app. To ensure that your router stays new and gets better over time, the TP-Link Cloud will notify you when an important firmware upgrade is available.

  • Page 28: Register A Tp-Link Id

    Manage the User TP-Link IDs. • Once you have registered a TP-Link ID on the web management page, you can only register another TP-Link ID via the Tether APP. Please refer to Manage the Router via the TP-Link Tether App to install the app.

  • Page 29: Manage The User Tp-Link Ids

    Password. 2. Enter the current password, then a new password twice. And click SAVE. Manage the User TP-Link IDs The TP-Link ID used to log in to the router for the first time will be automatically bound as the Admin...

  • Page 30: Add Tp-Link Id To Manage The Router

    3. Click , enter another TP-Link ID as needed and click SAVE. Note: If you need another TP-Link ID, please register a new one via the Tether app. Refer to Manage the Router via the TP-Link Tether App to install the app and register a new TP-Link ID.

  • Page 31: Manage The Router Via The Tp-Link Tether App

    5. Manage your router as needed. Note: If you need to remotely access your router from your smart devices, you need to: • Log in with your TP-Link ID. If you don’t have one, refer to Register a TP-Link • Make sure your smartphone or tablet can access the internet with cellular data or a Wi-Fi network.

  • Page 32: Chapter 6 Wireless Settings

    Chapter Wireless Settings This chapter guides you on how to configure the wireless settings. It contains the following sections: • Specify Wireless Settings • Schedule Your Wireless Function • Use WPS for Wireless Connection • Advanced Wireless Settings...

  • Page 33: Specify Wireless Settings

    The preset SSIDs and password can be found on the label of the router. You can customize the wireless settings according to your needs. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
  • Page 34 Chapter 6 Wireless Settings • To enable or disable OFDMA: OFDMA enables multiple users to transmit data simultaneously, and thus greatly improves speed and efficiency. Noted that only when your clients also support OFDMA, can you fully enjoy the benefits. It is disabled by default. 1.

  • Page 35: Schedule Your Wireless Function

    Schedule Your Wireless Function The wireless network can be automatically off at a specific time when you do not need the wireless connection. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 36: Use Wps For Wireless Connection

    Wi-Fi Protected Setup (WPS) provides an easier approach to set up a security-protected Wi-Fi connection. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Make sure the Wi-Fi of your router is on and go to Advanced >...

  • Page 37: Connect Via The Router's Pin

    Chapter 6 Wireless Settings 6 3 2 Connect via the Router’s PIN Select Router’s PIN Method 1 to enable Router’s PIN. You can use the default PIN or generate a new one. Note: PIN (Personal Identification Number) is an eight-character identification number preset to each router. WPS supported devices can connect to your router with the PIN.

  • Page 38: Advanced Wireless Settings

    Chapter 6 Wireless Settings Advanced Wireless Settings Check advanced wireless settings for your device. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Wireless > Additional Settings.

  • Page 39: Create An Iot Network

    Create An IoT Network Create a dedicated wireless network to manage your loT devices together, such as smart lights and cameras. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to...
  • Page 40 Chapter 6 Wireless Settings...

  • Page 41: Chapter 7 Guest Network

    Chapter Guest Network This function allows you to provide Wi-Fi access for guests without disclosing your main network. When you have guests in your house, apartment, or workplace, you can create a guest network for them. In addition, you can customize guest network options to ensure network security and privacy.

  • Page 42: Create A Network For Guests

    Chapter 7 Guest Network Create a Network for Guests 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Wireless > Guest Network or click Wireless on the top page. Locate Guest Network section.

  • Page 43: Customize Guest Network Options

    Guest Network section. You can turn on or off the guest network function conveniently. Customize Guest Network Options 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 44: Chapter 8 Network Map

    Chapter Network Map...
  • Page 45 Network Map Network Map outlines device connectivity of your network visually and helps you manage general settings of the network. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Network Map.
  • Page 46 Chapter 8 Network Map • Click Mesh Devices to view the devices that form a mesh network with the router.
  • Page 47 Chapter 8 Network Map • Click Clients to view the client devices in your network. You can block devices so they cannot access your network, or set Speed Limit to limit their upload and download speeds. To limit the speeds of a device: 1.

  • Page 48: Chapter 9 Homeshield

    Customize your home network with enhanced security using a kit of features built in TP-Link HomeShield. Whether protecting your sensitive data or limiting the access of kids and guests, TP-Link HomeShield provides you the tools you need to fully manage your network.

  • Page 49: Network Security

    To use this feature, download Tether to enjoy the HomeShield service 1. Scan the QR code or get the Tether app from the Apple App Store or Google Play. 2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.

  • Page 50: Network Analysis & Optimization

    To use this feature, download Tether to enjoy the HomeShield service 1. Scan the QR code or get the Tether app from the Apple App Store or Google Play. 2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.
  • Page 51 Chapter 9 HomeShield 2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first. 3. Log in to your router and tap the HomeShield tab to use this feature.

  • Page 52: Chapter 10 Easymesh With Seamless Roaming

    Chapter EasyMesh with Seamless Roaming This product is compatible with EasyMesh. This chapter introduces the EasyMesh feature. It contains the following sections: • Add a Router as a Satellite Device • Add a Range Extender as a Satellite Device • Manage Devices in the EasyMesh Network...

  • Page 53: Add A Router As A Satellite Device

    Note: Routers and range extenders must be compatible with EasyMesh or OneMesh™. Firmware upgrades may be required. 10 1 Add a Router as a Satellite Device 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 54: Add A Range Extender As A Satellite Device

    5. Click ADD. When prompted “This device has been added successfully“, click OK, then click FINISH. 10 2 Add a Range Extender as a Satellite Device 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced...
  • Page 55 Chapter 10 EasyMesh with Seamless Roaming 3. Plug in the extender next to the main router. 4. With in 2 minutes, press the WPS button on main router and on the extender. Wait until the WPS process is complete. 5. Done! You can check the mesh device on the router’s web page too.

  • Page 56: Manage Devices In The Easymesh Network

    In an EasyMesh network, you can manage all mesh devices and connected clients on your main router’s web page. • To view mesh devices and connected clients in the network: 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Network Map.

  • Page 57: Chapter 11 Network Security

    Chapter Network Security This chapter guides you on how to protect your home network from cyber attacks and unauthorized users by implementing these three network security functions. You can protect your home network from cyber attacks, block or allow specific client devices to access your network using Access Control, or you can prevent ARP spoofing and ARP attacks using IP &...

  • Page 58: Protect The Network From Cyber Attacks

    Block or allow specific client devices to access my network (via wired or wireless). How can I do that? 1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2 Go to Advanced >...
  • Page 59 Chapter 11 Network Security 2 ) Click and select devices you want to be blocked and Click ADD. 3 ) The Operation Succeeded message will appear on the screen, which means the selected devices have been successfully added to the blacklist. To allow specific device(s): 1 ) Select Whitelist...

  • Page 60: Ip & Mac Binding

    Chapter 11 Network Security 3 ) The Operation Succeeded message will appear on the screen, which means the selected devices have been successfully added to the whitelist. • Add unconnected devices 1 ) Click Manually. 2 ) Enter the Device Name MAC Address of the device you want to be allowed and click ADD.
  • Page 61 Chapter 11 Network Security I want to: Prevent ARP spoofing and ARP attacks. How can I do that? 1 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2 Go to Advanced >...

  • Page 62: Alg

    SIP ALG. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 63: Device Isolation

    However, isolated devices (these devices) cannot transfer data with devices on your home, including managing gateway devices, accessing USB devices, etc. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 64: Chapter 12 Nat Forwarding

    The TP-Link router supports four forwarding rules. If two or more rules are set, the priority of implementation from high to low is Port Forwarding, Port Triggering, UPNP and DMZ.

  • Page 65: Share Local Resources On The Internet By Port Forwarding

    WAN: 218.18.232.154 How can I do that? 1 Assign a static IP address to your PC, for example 192.168.0.100. 2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 3 Go to Advanced >...
  • Page 66 Chapter 12 NAT Forwarding 5 Click VIEW COMMON SERVICES and select HTTP. The External Port, Internal Port Protocol will be automatically filled in. 6 Click VIEW CONNECTED DEVICES and select your home PC. The Device IP Address will be automatically filled in. Or enter the PC’s IP address 192.168.0.100 manually in the Device IP Address field.

  • Page 67: Open Ports Dynamically By Port Triggering

    VoIPs, video players and common applications including MSN Gaming Zone, Dialpad and Quick Time 4 players, etc. Follow the steps below to configure the Port Triggering rules: 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 68: Make Applications Free From Port Restriction By Dmz

    Chapter 12 NAT Forwarding 4. Click SAVE. Tips: • You can add multiple port triggering rules according to your network need. • The triggering ports can not be overlapped. • If the application you need is not listed in the Existing Applications list, please enter the parameters manually. You should verify the external ports the application uses first and enter them into External Port field according to the...

  • Page 69: Make Xbox Online Games Run Smoothly By Upnp

    NAT Forwarding How can I do that? 1 Assign a static IP address to your PC, for example 192.168.0.100. 2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 3 Go to Advanced >...
  • Page 70 Therefore, you can play Xbox online games without a hitch. INTERNET If necessary, you can follow the steps to change the status of UPnP. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 71: Chapter 13 Vpn Server&Client

    Chapter VPN Server&Client The router offers several ways to set up VPN connections: VPN Server allows remote devices to access your home network in a secured way through the internet. The router supports three types of VPN Server: OpenVPN is somewhat complex but with higher security and more stability, suitable for restricted environments such as campus network and company intranet.

  • Page 72: Use Openvpn To Access Your Home Network

    INTERNET Home Network Router (VPN Server) Remote Devices Step1 Set up OpenVPN Server on Your Router 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > VPN Server >...

  • Page 73: Use Pptp Vpn To Access Your Home Network

    Chapter 13 VPN Server&Client 6. Select your Client Access type. Select Home Network Only if you only want the remote device to access your home network; select Internet and Home Network you also want the remote device to access internet through the VPN Server. 7.
  • Page 74 Chapter 13 VPN Server&Client 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > VPN Server > PPTP, and tick the Enable box of PPTP. Note: Before you enable Server, we recommend you configure Dynamic DNS Service (recommended) or assign a static IP address for router’s WAN port and synchronize your...
  • Page 75 Chapter 13 VPN Server&Client 3 ) Click ADD. Step 2 Configure PPTP VPN Connection on Your Remote Device The remote device can use the Windows built-in PPTP software or a third-party PPTP software to connect to PPTP Server. Here we use the Windows built-in PPTP software as an example.
  • Page 76 Chapter 13 VPN Server&Client 4. Select Use my Internet connection (VPN). 5. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field. Click Next.
  • Page 77 Chapter 13 VPN Server&Client 6. Enter the User name Password you have set for the PPTP VPN server on your router, and click Connect. 7. Click Connect Now when the VPN connection is ready to use.

  • Page 78: Use L2Tp/Ipsec Vpn To Access Your Home Network

    Home Network Router (VPN Server) Remote Devices Step 1 Set up L2TP/IPSec VPN Server on Your Router 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 79 Chapter 13 VPN Server&Client 3. In the Client IP Address field, enter the range of IP addresses (up to 10) that can be leased to the devices by the L2TP/IPSec VPN server. 4. Keep IPSec Encryption Encrypted and create an IPSec Pre-Shared Key.
  • Page 80 Chapter 13 VPN Server&Client The remote device can use the Windows or Mac OS built-in L2TP/IPSec software or a third-party L2TP/IPSec software to connect to L2TP/IPSec Server. Here we use the Windows built-in L2TP/IPSec software as an example. 1. Go to Start >...
  • Page 81 Chapter 13 VPN Server&Client 4. Select Use my Internet connection (VPN). 5. Enter the internet IP address of the router (for example: 218.18.1.73) in the Internet address field, and select the checkbox Don’t connect now; just set it up so I can connect later.
  • Page 82 Chapter 13 VPN Server&Client 7. Click Close when the VPN connection is ready to use 8. Go to Network and Sharing Center and click Change adapter settings.
  • Page 83 Chapter 13 VPN Server&Client 9. Find the VPN connection you created, then double-click it. 10. Enter the User name Password you have set for the L2TP/IPSec VPN server on your router, and click Properties.
  • Page 84 Chapter 13 VPN Server&Client 11. Switch to the Security tab, select Layer 2 Tunneling Protocol with IPsec (L2TP/ IPSec) and click Advanced settings. 12. Select Use preshared key for authentication and enter the IPSec Pre-Shared Key you have set for the L2TP/IPSec VPN server on your router. Then click OK. Done! Click Connect to start VPN connection.

  • Page 85: Use Wireguard To Access Your Homenetwork

    WireGuard VPN Server is used to create a WireGuard VPN connection for remote devices to access your home network. Step 1 Set up WireGuard Server on Your Router 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 86 Chapter 13 VPN Server&Client • Tunnel IP Address: 192.168.0.1 (This is the IP address of the WireGuard VPN interface, it is recommended not to have the same LAN IP as the router.) • Listen Port: Enter 51820 (The default port is 51820, which can be modified). •...
  • Page 87 • For mobile phones, download WireGuard App from Google Play or Apple Store, then use the App to scan the QR Code to connect to this server. • For other devices (e.g. TP-Link WireGuard VPN client), Click EXPORT to save the WireGuard VPN configuration file which will be used by the remote device to access your router.

  • Page 88: Use Vpn Client To Access A Remote Vpn Server

    Chapter 13 VPN Server&Client 9. On the account list, you can click the button to modify the VPN server settings connect to the server, or delete the account. 13 5 Use VPN Client to Access a Remote VPN Server VPN Client is used to create VPN connections for devices in your home network to access a remote VPN server.
  • Page 89 Chapter 13 VPN Server&Client 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > Client. Note: Firmware update may be required to support VPN Client. 3. Enable Client, then save the settings.
  • Page 90 Chapter 13 VPN Server&Client • PPTP: Enter the VPN server address (for example: 218.18.1.73) and the VPN username and password provided by your VPN provider. • L2TP/IPSec VPN: Enter the VPN server address (for example: 218.18.1.73), VPN username and password, and IPSec pre-shared key provided by your VPN provider.
  • Page 91 Chapter 13 VPN Server&Client 4 ) Save the settings. 5 ) In the server list, enable the one you need. 5. Add and manage the devices that will use the VPN function. 1 ) In the Device List section, click Add. 2 ) Choose and add the devices that will access the VPN server you have configured.
  • Page 92 Chapter 13 VPN Server&Client 6. Save the settings. Done! Now the devices you specified can access the VPN server you enabled.

  • Page 93: Chapter 14 Customize Your Network Settings

    Chapter Customize Your Network Settings This chapter guides you on how to configure advanced network features. It contains the following sections: • Change the LAN Settings • Configure to Support IPTV Service • Specify DHCP Server Settings • Set Up a Dynamic DNS Service Account •...

  • Page 94: Change The Lan Settings

    If the IP address conflicts with another device on your local network or your network requires a specific IP subnet, you can change it. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 95 Chapter 14 Customize Your Network Settings 2 ) Click SAVE. 3 ) After configuring IGMP proxy, IPTV can work behind your router now. You can connect your set-top box to any of the router’s Ethernet port. If IGMP is not the technology your ISP applies to provide IPTV service: 1 ) Tick Enable IPTV/VLAN.

  • Page 96: Specify Dhcp Server Settings

    IP Address Pool. You can change the settings of the DHCP Server if necessary, and you can reserve LAN IP addresses for specified client devices. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 97: Set Up A Dynamic Dns Service Account

    NO-IP or DynDNS. If you don’t have a DDNS account, you have to register first by clicking Register Now. Note: To enjoy TP-Link’s DDNS service, you have to log in with a TP-Link ID. If you have not logged in with one, click 4. Click Register in the...

  • Page 98: Create Static Routes

    Chapter 14 Customize Your Network Settings If you have selected NO-IP or DynDNS, enter the username, password and domain name of your account. 5. Click LOGIN AND SAVE. Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.
  • Page 99 1 Change the routers’ LAN IP addresses to two different IP addresses on the same subnet. Disable Router B’s DHCP function. 2 Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for Router A. 3 Go to Advanced >...
  • Page 100 Chapter 14 Customize Your Network Settings Network Destination: The destination IP address that you want to assign to a static route. This IP address cannot be on the same subnet with the WAN IP or LAN IP of Router A. In the example, the IP address of the company network is the destination IP address, so here enter 172.30.30.1.

  • Page 101: Chapter 15 Manage The Router

    Chapter Manage the Router This chapter will show you the configuration for managing and maintaining your router. It contains the following sections: • Update the Firmware • Backup and Restore Configuration Settings • Change the Login Password • Password Recovery •...

  • Page 102: Update The Firmware

    Back up your router’s configurations before firmware update. • Do NOT turn off the router during the firmware update. 15 1 1 Auto Update 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 103: Local Update

    15 1 3 Local Update 1. Download the latest firmware file for the router from www.tp-link.com. 2. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 3. Go to Advanced >...

  • Page 104: Backup And Restore Configuration Settings

    Moreover, if necessary you can erase the current settings and reset the router to the default factory settings. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 105: Change The Login Password

    Note: • During the resetting process, do not turn off the router. • After reset, you can still use the current login password or the TP-Link ID to log in to the web management page. • To reset the router to factory default settings: 1.

  • Page 106: Password Recovery

    This feature allows you to recover the login password you set for you router in case you forget it. Note: If you are using a TP-Link ID to log in to the web management page, the Password Recovery feature will be disabled. To manage the TP-Link ID, go to Advanced >...

  • Page 107: Local Management

    This feature allows you to limit the number of client devices on your LAN from accessing the router by using the MAC address-based authentication. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 108: Remote Management

    5. Click SAVE. 15 6 Remote Management This feature allows you to control remote devices’ authority to manage the router. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 109 Chapter 15 Manage the Router • Allow all devices to manage the router remotely: 1. Tick the Enable checkbox of Remote Management. 2. Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535. 3.

  • Page 110: System Log

    When the router does not work normally, you can save the system log and send it to the technical support for troubleshooting. • To save the system log locally: 1. Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 111 It would be great if the system logs could be sent to my mailbox at 8 a.m. every day. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

  • Page 112: Test The Network Connectivity

    Chapter 15 Manage the Router Email From: Enter the email address used for sending the system log. 2 ) Select Require Password. Tips: Generally, Require Password should be selected if the login of the mailbox requires username and password. Username: Enter the email address used for sending the system log.
  • Page 113 Chapter 15 Manage the Router 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced > System > Diagnostics. 3. Enter the information: 1 ) Choose Ping Traceroute as the diagnostic tool to test the connectivity;...

  • Page 114: Set System Time And Language

    System language is the language displayed when you log into the router. You can change the system language as needed. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...
  • Page 115 Chapter 15 Manage the Router 4. In the NTP Server I field, enter the IP address or domain name of your desired NTP Server. 5. (Optional) In the NTP Server II field, enter the IP address or domain name of the second NTP Server.

  • Page 116: Set The Router To Reboot Regularly

    15 10 Set the Router to Reboot Regularly The Scheduled Reboot feature cleans the cache to enhance the running performance of the router. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. 2. Go to Advanced >...

  • Page 117: Control The Led

    The LED of the router indicates its activities and status. You can enable the Night Mode feature to specify a time period during which the LED is off. 1. Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
  • Page 118 Q2 What should I do if I forget my web management password? • If you are using a TP-Link ID to log in, or you have enabled the Password Recovery feature of the router, click...
  • Page 119 4 ) Click LAN settings and deselect the following three options and click OK. 5 ) Go to Advanced > Restore advanced settings, click to save the settings.
  • Page 120 Note: You’ll need to reconfigure the router to surf the internet once the router is reset. Q4 What should I do if I can’t access the internet even though the configuration is finished? Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router. Go to Advanced>...
  • Page 121 • Restart the modem and the router. 1 ) Power off your modem and router, and leave them off for 1 minute. 2 ) Power on your modem first, and wait about 2 minutes until it gets a solid cable or Internet light.
  • Page 122 • Modify the LAN IP address of the router. Note: Most TP-Link routers use 192.168.0.1/192.168.1.1 as their default LAN IP address, which may conflict with the IP range of your existing ADSL modem/router. If so, the router is not able to communicate with your modem and you can’t access the internet.
  • Page 123 • Double check the internet connection type. 1 ) Confirm your internet connection type, which can be learned from the ISP. 2 ) Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
  • Page 124 2 ) Exit the wireless configuration tool (the TP-Link Utility, for example). 3 ) Select and right click on...
  • Page 125 2 ) If you cannot find the PIN or PIN failed, you may choose Connecting using a security key instead, and then type in the Wireless Password/Network Security Key. 3 ) If it continues to show note of Network Security Key Mismatch, it is suggested to confirm the wireless password of your wireless router.
  • Page 126 FCC compliance information statement Product Name: AXE5400 Tri-Band Wi-Fi 6E Router Model Number: Archer AXE5400 Component Name Model T120200-2B1 I.T.E. Power Supply Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
  • Page 127 FCC compliance information statement Product Name: I T E Power Supply Model Number: T120200-2B1 Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
  • Page 128 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
  • Page 129 Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted. EU Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
  • Page 130 SI SK UK(NI) UKCA Mark UK Declaration of Conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at...
  • Page 131 applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Caution: 1.
  • Page 132 en vol au-dessus de 10 000 pieds. L’exploitation d’émetteurs dans la bande 5,925-7,125 GHz est interdite pour le contrôle ou les communications avec des systèmes d’avions sans pilote. Industry Canada Statement CAN ICES-3 (B)/NMB-3(B) Korea Warning Statements: 당해 무선설비는 운용중 전파혼신 가능성이 있음. NCC Notice &...
  • Page 133 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在 密閉位置中。 • 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進 行此項工作。 限用物質含有情況標示聲明書 設備名稱：AXE5400 Tri-Band Wi-Fi 6E Router 型號（型式）：Archer AXE5400 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Ｕnit Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium...
  • Page 134 • Adapter shall be installed near the equipment and shall be easily accessible. • Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.
  • Page 135 Symbol Explanation Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on...
  • Page 136 Symbol Explanation Switch of micro-gap construction (for US version) µ Switch micro-gap micro-disconnection construction (for other versions except US) Switch without contact gap (Semiconductor switching ε device)

Table of Contents

Save PDF
