Yamaha YZF-R1 Kit Manual page 13

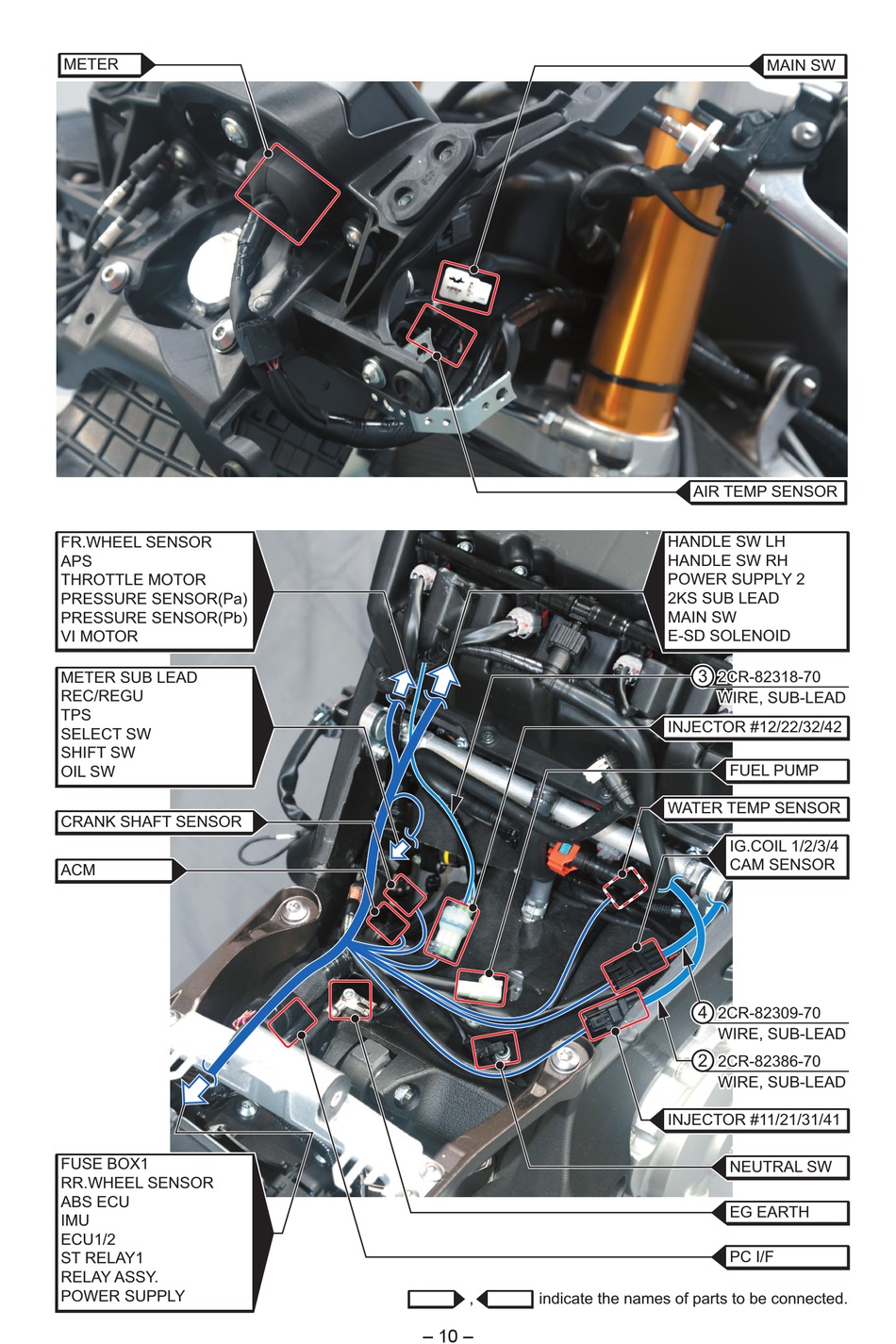

METER
FR.WHEEL SENSOR
APS
THROTTLE MOTOR
PRESSURE SENSOR(Pa)
PRESSURE SENSOR(Pb)
VI MOTOR
METER SUB LEAD
REC/REGU
TPS
SELECT SW
SHIFT SW
OIL SW
CRANK SHAFT SENSOR
ACM
FUSE BOX1
RR.WHEEL SENSOR
ABS ECU
IMU
ECU1/2
ST RELAY1
RELAY ASSY.
POWER SUPPLY
, indicate the names of parts to be connected.
– 10 –
MAIN SW
AIR TEMP SENSOR
HANDLE SW LH
HANDLE SW RH
POWER SUPPLY 2
2KS SUB LEAD
MAIN SW
E-SD SOLENOID
3
2CR-82318-70 2CR-82386-70
WIRE, SUB-LEAD WIRE, SUB-LEAD
INJECTOR #12/22/32/42
FUEL PUMP
WATER TEMP SENSOR
IG.COIL 1/2/3/4
CAM SENSOR
4
2CR-82309-70 2CR-82386-70
WIRE, SUB-LEAD WIRE, SUB-LEAD
2
2CR-82386-70 2CR-82386-70
WIRE, SUB-LEAD WIRE, SUB-LEAD
INJECTOR #11/21/31/41
NEUTRAL SW
EG EARTH
PC I/F
