Yamaha YZF-R1 Kit Manual page 10

Installing Wire Harness:
1. Remove the STD wire harness from the
chassis.

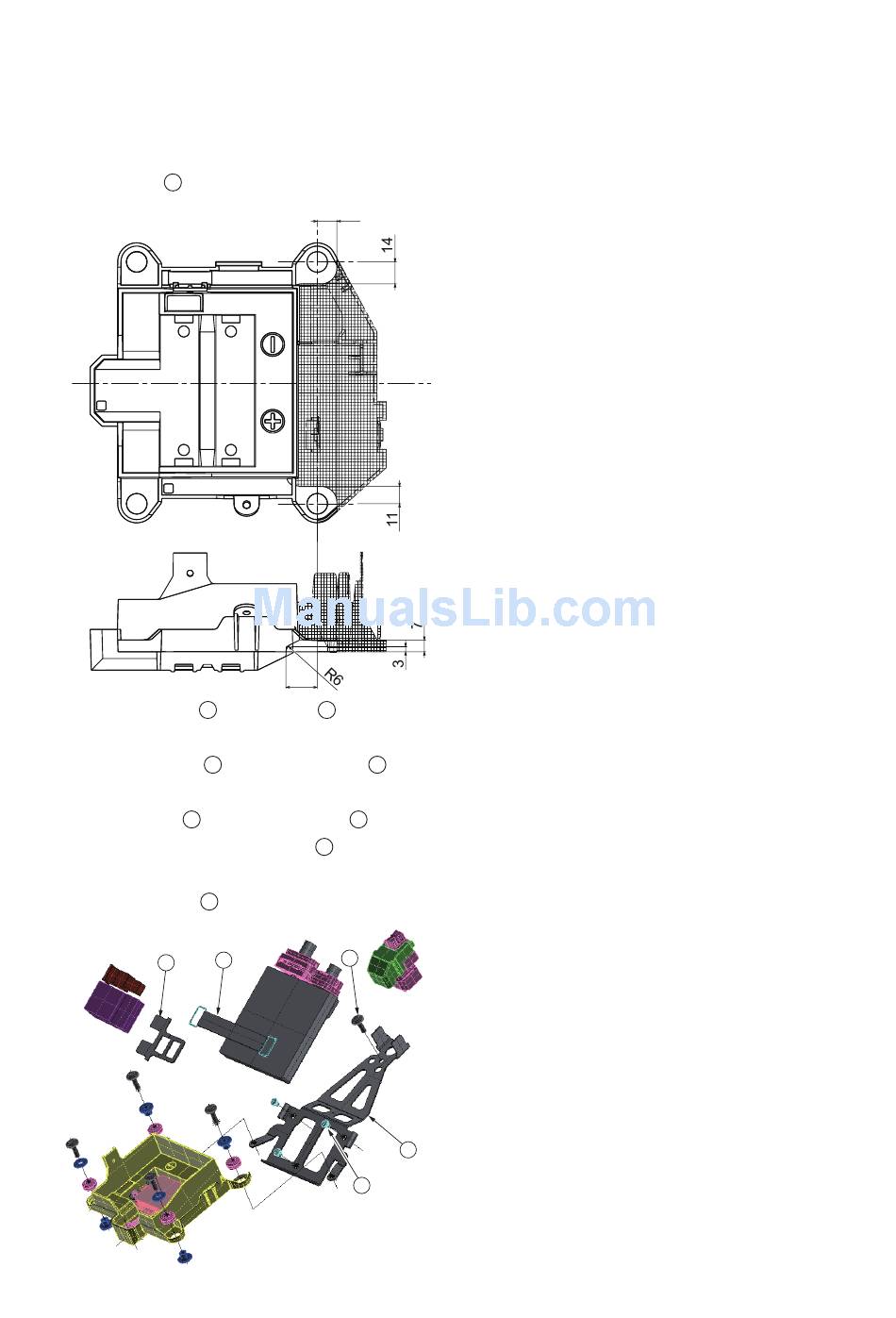

2. Cut the shaded area off the battery box (to
provide an installation area for fixing for
BRKT.,4 seat).
12
3. Install PLUG to BRKT.,4
13
By using the STD battery box installation
bolt and bolt , install BRKT.,4
15
shaped battery box.
Pass band through BRKT.,6
14
Secure the ECU with band
Install the relay ASSY. and main fuse to
and BRKT.,6 .
16
14
16
13
20
.
12
to the
12
.
16
.
14
15
12
13
– 7 –
