SERVICE MANUL
PFL1165W-U
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

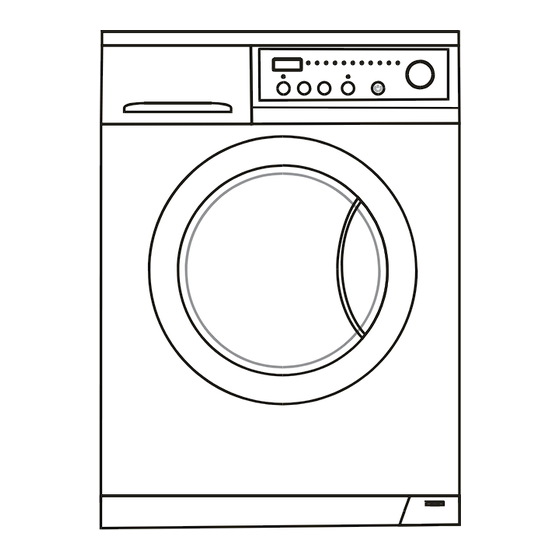

Washing Machine
All rights reserved. Unauthorized copying and distribution is a violation of law.
SERVICE MANUAL
WARNING
Washing Machine
MODEL: PFL1165W-U
１
Order No. FL0911S002V1.1
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Proline PFL1165W-U
Summary of Contents for Proline PFL1165W-U
-
Page 1: Service Manual
SERVICE MANUAL Order No. FL0911S002V1.1 Washing Machine MODEL: PFL1165W-U WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product. -
Page 2: Table Of Contents
SERVICE MANUL ２ PFL1165W-U Contents Chapter 1 General Information ________________________________________________ ４ 1-1. General Guidelines _____________________________________________________４ 1-2. Caution and Warning symbols ____________________________________________ ４ 1-3. Function indication symbols ______________________________________________ ４ Chapter 2 Product Feature ___________________________________________________ ５ 2-1. Features _____________________________________________________________ ５ 2-2. Specification __________________________________________________________ ６... - Page 3 SERVICE MANUL ３ PFL1165W-U 8-3. Adjusting the washing machine _________________________________________ １６ 8-4. Joining the Inlet Hose to the Washing Machine _____________________________ １７ 8-5. Drainage Hose ______________________________________________________ １７ 8-6. Connecting to the Power Supply ________________________________________ １７ Chapter 9 Wiring circuit and Self check ______________________________________ １８...
-
Page 4: Chapter 1 General Information
SERVICE MANUL ４ PFL1165W-U Chapter 1 General Information 1-1. General Guidelines When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring... -
Page 5: Chapter 2 Product Feature
SERVICE MANUL ５ PFL1165W-U Chapter 2 Product Feature 2-1. Features (1). 300mm diameter porthole, door may be open at a 180 degrees. Facilitate view of wash process, facilitate unloading and easy to use with large port. (2). Class A energy-saving... -
Page 6: Specification
SERVICE MANUL ６ PFL1165W-U 2-2. Specification PFL1165W-U washing machines Product identification Description of appliance Washing machine Type of appliance(FS = standing, BI = built-in) Supplier own brand Supplier bar code （ Europe ） Commercial Brand / Model Commercial bar code... - Page 7 SERVICE MANUL ７ PFL1165W-U Auto water cool-down (before drain 90°C boiled water) Water overflow protection Acqua Stop kit Child protection Programs n° 1) Strong action /cotton cycles (90°C/60°C/40°C/30°C/※) 2) Normal action / synthetics (90°C/60°C/40°C/30°C/※) n° 3) Delicate action / wool or cashmere cycles (60°C/40°C/30°C/※) n°...
-
Page 8: Chapter 3 Matters Needing Attention
SERVICE MANUL ８ PFL1165W-U Chapter 3 Matters needing attention 3-1. Safety... -
Page 9: During Use
SERVICE MANUL ９ PFL1165W-U 3-2. During Use... -
Page 10: Chapter 4 Operational Guidance
SERVICE MANUL １０ PFL1165W-U Chapter 4 Operational Guidance Delay Spin PROG. Prewash Delicate Wash Temperature Cotton Silk Rinse Synthetic Spin Quick Wool Drain Start/Pause Delay Temperature Spin On/Off... - Page 11 SERVICE MANUL １１ PFL1165W-U...
-
Page 12: Chapter 5 Program Introduction
SERVICE MANUL １２ PFL1165W-U Chapter 5 Program Introduction... -
Page 13: Chapter 6 Washing Mathods
SERVICE MANUL １３ PFL1165W-U Chapter 6 Washing Mathods 6-1. Loading 6-2. Adding detergent 6-3. Selecting washing program... -
Page 14: Chapter 7 Appearance Brief Introduction
SERVICE MANUL １４ PFL1165W-U Chapter 7 Appearance brief introduction 7-1. Name of parts... -
Page 15: Net Dimension
SERVICE MANUL １５ PFL1165W-U 7-2. Net dimension Delay Spin PROG. Prewash Delicate Wash Temperature Cotton Silk Rinse Synthetic Quick Spin Wool Drain Delay Start/Pause On/Off Temperature Spin height:850mm / width:595mm / depth:535mm... -
Page 16: Chapter 8 Disassembly And Installation
SERVICE MANUL １６ PFL1165W-U Chapter 8 Disassembly and Installation 8-1. Remove packing materials 8-2. Dismantle packing bolts 8-3. Adjusting the washing machine... -
Page 17: Joining The Inlet Hose To The Washing Machine
SERVICE MANUL １７ PFL1165W-U 8-4. Joining the Inlet Hose to the Washing Machine 8-5. Drainage Hose 8-6. Connecting to the Power Supply... -
Page 18: Chapter 9 Wiring Circuit And Self Check
SERVICE MANUL １８ PFL1165W-U Chapter 9 Wiring circuit and Self check 9-1. Wiring circuit PCB-Printed Circuit Board NTC-Temperature Sensor FA-Interference Suppresser MR-Door Lock Switch-Power Switch EVP,EVF-Water Inlet Magnetic Valve P- Pressure Switch B1-Drainage Pump R-Heating element M-Motor... -
Page 19: Self Check
SERVICE MANUL １９ PFL1165W-U 9-2. Self check Press the “temperature”and “delay”button at the same time，then switch on the power ,wait for about 3 secs ,the led will display “TEST”,now you can press “start/pause”to let washing maching start test function softy... -
Page 20: Chapter 10 Error Display And Troubleshooting
SERVICE MANUL ２０ PFL1165W-U Chapter 10 Error Display and troubleshooting 10-1. Error Display Error message:Door is not properly shut 20s after program is started. Troubleshooting: Shut the door properly Pushing the door to Check Whether Door is properly shut or not Door lock is broken and need replacing, Cut off the power and then turn on again. - Page 21 SERVICE MANUL ２１ PFL1165W-U Error message:Temperature sensor is not properly connected or damaged Troubleshooting: Cut off power and measure the resistance NTC exist open circuit. Replace it of temperature sensor by multimeter , is it between 5-14kΩ ? Check if NTC is connected properly...
- Page 22 SERVICE MANUL ２２ PFL1165W-U Error message: The required water level is not reached within 8 min Troubleshooting: Connect it well. Check if water is leaking from washer bottom. Inlet pipe. drain pipe or other pipe connection Check if tap is closed or water...
- Page 23 SERVICE MANUL ２３ PFL1165W-U Error message. Motor overheat protection or is damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about ten minutes, and then test again. If the resistance is natural, it Measure if the resistance of motor is caused by overheated protection.
-
Page 24: Examination & Troubleshooting
SERVICE MANUL ２４ PFL1165W-U 10-2. Examination & Troubleshooting 10-2-1. Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage？ Press the power switch Is power switch on? Make sure power supply cable Press power switch and check the... -
Page 25: No Draining
SERVICE MANUL ２５ PFL1165W-U 10-2-3. No draining Troubleshooting: Adjust the height of drainpipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise ， open and check if filter is jammed Clean and tighten filter clockwise. -
Page 26: Water Leaking
SERVICE MANUL ２６ PFL1165W-U 10-2-5. Water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it or the tap Is drain pipe broken？ Replace drainpipe Check if there is foreign material nipped Remove clothes between cushion of sight window and... -
Page 27: Chapter 11 Maintenance
SERVICE MANUL ２７ PFL1165W-U Chapter 11 Maintenance... - Page 28 SERVICE MANUL ２８ PFL1165W-U...
- Page 29 SERVICE MANUL ２９ PFL1165W-U Sincere Forever...
