SERVICE MANUAL
PFL612W-U
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death

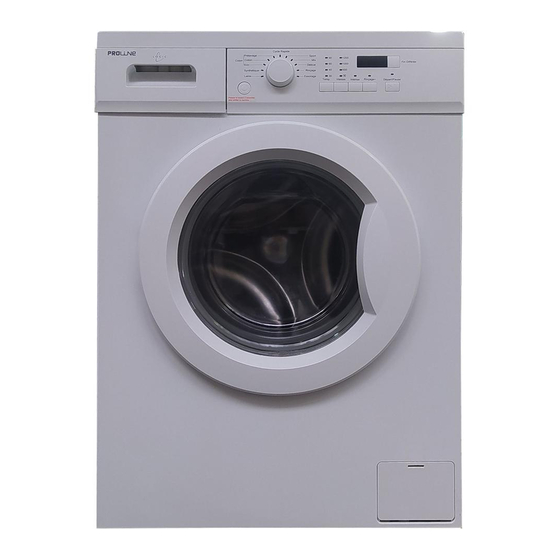

Front Load Washing Machine
MODEL: PFL612W-U
WARNING
Front Load Washing Machine
Order No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFL612W-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Proline PFL612W-U

  • Page 1 PFL612W-U Order No. Front Load Washing Machine MODEL: PFL612W-U WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians.
  • Page 2: Table Of Contents

    SERVICE MANUAL PFL612W-U Contents Chapter 1 General Information ________________________________________________ 1-1. General Guidelines _____________________________________________________ Chapter 2 Product Feature ___________________________________________________ 2-1. Features _____________________________________________________________ 2-2. Specification __________________________________________________________ Chapter 3 Matters needing attention ___________________________________________ 3-1. Safety _______________________________________________________________ Chapter 4 Operational Guidance ____________________________________________ Chapter 5 Program Introduction_____________________________________________ Chapter 6 Washing Mathods ________________________________________________ 6-1.
  • Page 3 SERVICE MANUAL PFL612W-U 8-4. Joining the Inlet Hose to the Washing Machine _____________________________ 8-5. Drainage Hose ______________________________________________________ 8-6. Connecting to the Power Supply ________________________________________ Chapter 9 Wiring circuit and Self check ______________________________________ 9-1. Wiring circuit ________________________________________________________ 9-2. Self check __________________________________________________________ Chapter 10 Error Display and troubleshooting _________________________________ 10-1.
  • Page 4: Chapter 1 General Information

    SERVICE MANUAL PFL612W-U Chapter 1 General Information 1-1. General Guidelines When servicing,observe the original lead dress.If a short circuit is found, replace all parts which are overheated or damaged by the short circuit.After servicing ,see to it that all the protective devices such as insulation barriers ,insulation papers shields are properly installed .Confirm that the screws,parts and wiring...
  • Page 5: Chapter 2 Product Feature

    SERVICE MANUAL PFL612W-U Chapter 2 Product Feature 2-1. Features (1). 320mm diameter porthole, door may be open at a 175 degrees. Facilitate view of wash process, facilitate unloading and easy to use with large port. (2). Class A energy-saving Scientific design for tub can reduce the use of water heavy during washing, consequently upgrade the energy efficiency class to A,also use scientific washing (3).
  • Page 6: Specification

    SERVICE MANUAL PFL612W-U 2-2. Specification PFL612W-U washing machines Product identification Description of appliance Washing machine Type of appliance(FS = standing, BI = built-in) Supplier own brand KESA Supplier bar code Europe HAIER Commercial Brand / Model PROLINE Commercial bar code...
  • Page 7 SERVICE MANUAL PFL612W-U Auto door lock Motor overheating protection No heating without water Auto water cool-down (before drain 90¡ã boiled water) Water overflow protection Acqua Stop kit Child protection Programs 1) cotton cycles (90ð C/60ð C/40ð C/30¡ã/ ) nð 2) synthetics (60¡ãC/4ð C/30¡ãC ) nð...
  • Page 8: Chapter 3 Matters Needing Attention

    SERVICE MANUAL PFL612W-U Chapter 3 Matters needing attention 3-1. Safety BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME DO ..Make sure that the transportation bolt(T1,T2&T3) are removed..Use a separate earthed socket for the power supply.
  • Page 9 SERVICE MANUAL PFL612W-U DURING DAILY USE OF THE APPLIANCE DO ..Pull up zips and fix loose threads to prevent the items from being entangled. If necessary, put small items into a net bag or pillow..Turn off the machine after each wash program and switch it off at the mains to save electricity and for safety.
  • Page 10: Chapter 4 Operational Guidance

    SERVICE MANUAL PFL612W-U Chapter 4 Operational Guidance Front Load Washing Machine...
  • Page 11 SERVICE MANUAL PFL612W-U ? Delay _Touch this button lightly, the washing machine will start operation after a Button period of time and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this button increases a half hour. After the button is set, press the Start/Pause...
  • Page 12: Chapter 5 Program Introduction

    SERVICE MANUAL PFL612W-U Chapter 5 Program Introduction Front Load Washing Machine...
  • Page 13 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 14: Chapter 7 Appearance Brief Introduction

    SERVICE MANUAL PFL612W-U Chapter 7 Appearance brief introduction 7-1. Name of parts Front Load Washing Machine...
  • Page 15: Net Dimension

    SERVICE MANUAL PFL612W-U 7-2. Net dimension height:850mm / width:595mm / depth:520mm Front Load Washing Machine...
  • Page 16 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 17 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 18: Chapter 9 Wiring Circuit And Self Check

    SERVICE MANUAL PFL612W-U Chapter 9 Wiring circuit and Self check 9-1. Wiring circuit Front Load Washing Machine...
  • Page 19: Self Check

    SERVICE MANUAL PFL612W-U 9-2. Self check Self check 1.How to start Press the ° spee and °i n t ens button at the same time, then put the plug in to the socket, wait for about 3 seconds, the LED will display TEST ± nd the model of the machine ,then you can press °...
  • Page 20: Chapter 10 Error Display And Troubleshooting

    SERVICE MANUAL PFL612W-U Chapter 10 Error Display and troubleshooting 10-1. Error Display Error message:Door is not properly shut 20s after program is started. Troubleshooting: Shut the door properly Pushing the door to Check Whether Door is properly shut or not Door lock is broken and need replacing, Cut off the power and then turn on again.
  • Page 21: Troubleshooting

    SERVICE MANUAL PFL612W-U Error message:Temperature sensor is not properly connected or damaged (display at the end of a program). Troubleshooting: Cut off power and measure the resistance NTC exist open circuit. Replace it of temperature sensor by multimeter , is...
  • Page 22 SERVICE MANUAL PFL612W-U Error message: The required water level is not reached within 8 min, or the water level exceeds the protection value Troubleshooting: Connect it well. Check if water is leaking from washer bottom. Inlet pipe. drain pipe or...
  • Page 23 SERVICE MANUAL PFL612W-U Error message. Motor overheat protection or is damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about ten minutes, and then test again. If the resistance is natural, it Measure if the resistance of motor is caused by overheated protection.
  • Page 24: Examination & Troubleshooting

    SERVICE MANUAL PFL612W-U 10-2. Examination & Troubleshooting 10-2-1. Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage Press the power switch Is power switch on? Make sure power supply cable Press power switch and check the...
  • Page 25: No Draining

    SERVICE MANUAL PFL612W-U 10-2-3. No draining Troubleshooting Adjust the height of drainpipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise open and check if filter is jammed Clean and tighten filter clockwise. Check if hose-connecting cylinder to...
  • Page 26 SERVICE MANUAL PFL612W-U Troubleshooting: Check if water is leaking from the inlet pipe Readjust it or the tap Is drain pipe broken Replace drainpipe Check if there is foreign material nipped Remove clothes between cushion of sight window and sight window...
  • Page 27: Chapter 11 Maintenance

    SERVICE MANUAL PFL612W-U Chapter 11 Maintenance Front Load Washing Machine...
  • Page 28 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 29 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 30 SERVICE MANUAL PFL612W-U Front Load Washing Machine...
  • Page 31 This document was created with Win2PDF available at http://www.daneprairie.com. The unregistered version of Win2PDF is for evaluation or non-commercial use only.
