Proline PFL1266W-F Service Manual

Proline PFL1266W-F Service Manual

Front load
Hide thumbs Also See for PFL1266W-F:
Table of Contents

Advertisement

Quick Links

See also: User Manual

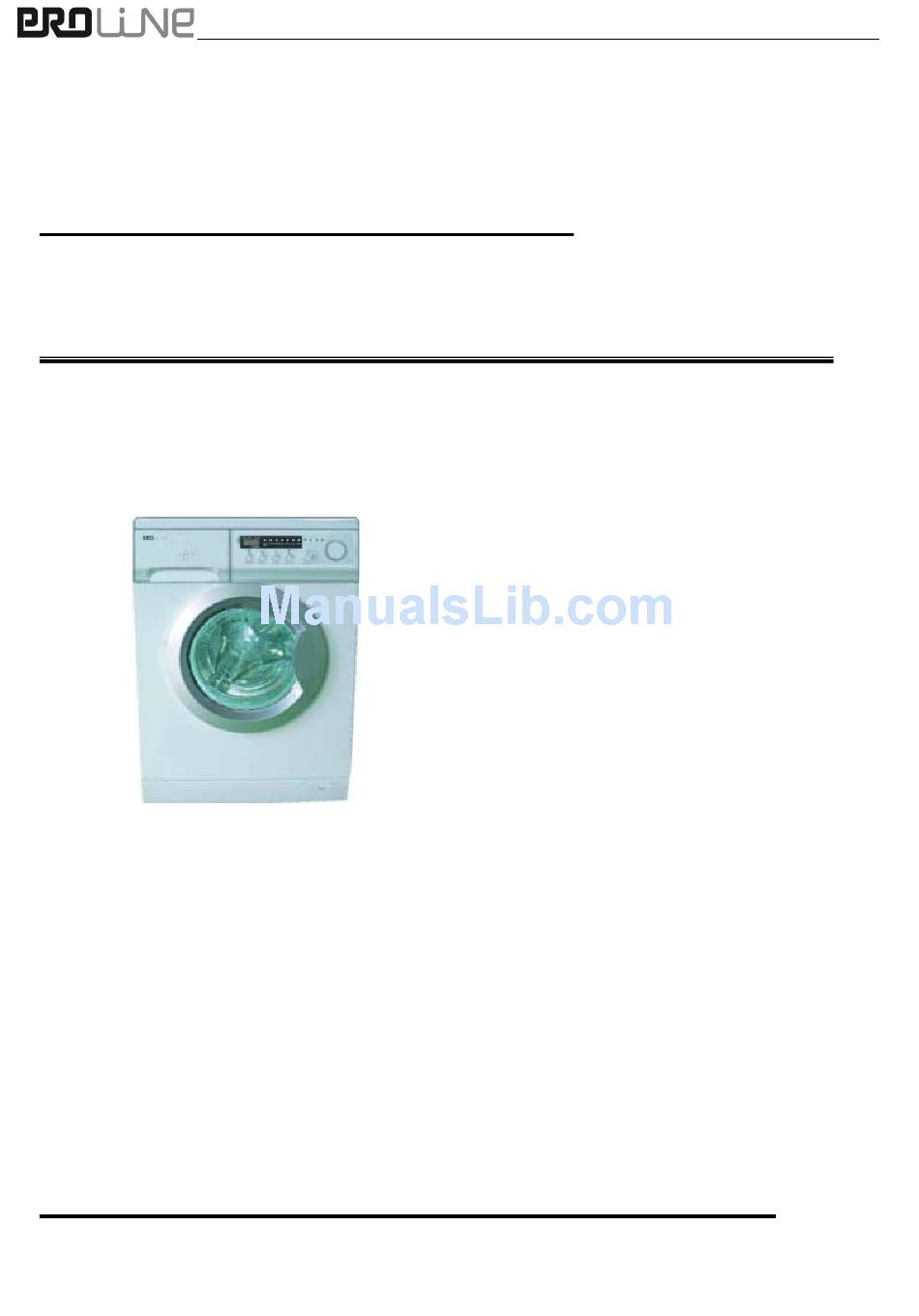

FRONT LOAD WASHING MACHINE
Features
300mm diameter porthole, door may be open at a 180 degrees.
Class-A energy-saving; Homocentric tubs with higher energy efficiency
Multi-gear speed controller
Unique gasket design featuring no residual water hidden inside
Delay time adjustive
Large wash load capacity 6kg,Europe standard AAB
Serial Number: S M - H M S 1 2 6 0 T V E 0 1
Front Load Washing Machine

Service Manual

Version: 1.00
Suited model:
PFL1266W-F
PFL1266W-E
Edition: 2007-02
Model:
PFL1266W-E/F

Advertisement

Table of Contents
loading

Related Manuals for Proline PFL1266W-F

Summary of Contents for Proline PFL1266W-F

  • Page 1: Service Manual

    Model: Front Load Washing Machine PFL1266W-E/F FRONT LOAD WASHING MACHINE Service Manual Suited model: PFL1266W-F PFL1266W-E Features 300mm diameter porthole, door may be open at a 180 degrees. Class-A energy-saving; Homocentric tubs with higher energy efficiency Multi-gear speed controller Unique gasket design featuring no residual water hidden inside...

  • Page 2: Table Of Contents

    Front Load Washing Machine Model: PFL1266W-E/F 1. Contents----------------------------------------------------------------------------------------1 2. Product code illumination and series introduction-----------------------------------2 3. Features ---------------------------------------------------------------------------------------3 4. Specification ----------------------------------------------------------------------------------4 5. Safety --------------------- ---------------------------------------------------------------------6 6. Installation ------------------------------------------------------------------------------------9 7. Net dimension -------------------------------------------------------------------------------11 8. Names of the parts-------------------------------------------------------------------------12 9. Operational functions----------------------------------------------------------------------13 10.

  • Page 3: Product Code Illumination And Series Introduction

    Model: Front Load Washing Machine PFL1266W-E/F PRODUCT INTRODUCTION PFL1266W-E/F It represents HMS series appearance with big window 180 opening window 1200rpm spin speed.S pin speed is adjustive from 400 to 1200 rpm,and alse exclude spin(indicate"0") it's controlled by computer. temprature is also adjustive,you can alse choose cold water.

  • Page 4: Features

    Front Load Washing Machine Model: PFL1266W-E/F FEATURES 300mm diameter porthole, door may be open at a 180 degrees. Facilitate view of wash process, facilit ate unloading and easy to use with large porthole. Multi-gear speed controller According to different costuming you can slect corresponding spin speed from 400 to 1200 rpm. Unique gasket design featuring no residual water hidden inside.

  • Page 5: Specification

    Front Load Washing Machine Model: PFL1266W-E/F SPECIFICATION New Sensor Proposal 2007 Front load washing machines PFL1266W-E/F Brand position center upper frame of door / chromed sticker Model number serigraphy right top corner control panel On white: silver / On silver : black or dark grey Product identification Description of appliance Washing machine...

  • Page 6: Safety

    Front Load Washing Machine Model: PFL1266W-E/F Delay timer (from - to) 0.5-24 Self cleaning suds pump Water inlet hose Water drain hose Adjustable feet n° Safety systems Auto door lock Motor overheating protection No heating without water Auto water cool-down (before drain 80°C boiled water) Water return protection Acqua Stop kit Child protection...
  • Page 7 Front Load Washing Machine Model: PFL1266W-E/F Matters Needing Attention 2. Hold the plug and not the electric cable .A separate earthed socket is required for the power supply. The washing machine must be when unplugging the washing machine. positioned so that the plug is accessible. 4.

  • Page 8: Matters Needing Attention

    Front Load Washing Machine Model: PFL1266W-E/F Matters Needing Attention 9.The carpet must not obstruct the ventilation 8.The washing machine should not be install- openings in the base of the washing machine. ed outdoors or in a damp place. In the event of water leakage or splashes allow the machine to dry naturally.
  • Page 9 Front Load Washing Machine Model: PFL1266W-E/F Matters Needing Attention 3. Do not place heavy, heating source or wet 4. Do not hot wash foam rubber or sponge-like materials. articles on the top of the washing machine. 5. Before washing, do up zippers, buttons and 6.

  • Page 10: Installation

    Front Load Washing Machine Model: PFL1266W-E/F Installation Dismantle the packing bolts as shown in Fig. 2. The packing bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process. Beforeuse: 1. Remove the back plate; 2.

  • Page 11: Joining The Inlet Hose To The Washing Machine

    Front Load Washing Machine Model: PFL1266W-E/F Installation Joining the Inlet Hose to the Washing Machine 1. Connect the nut on the inlet hose to the connector on the water valve. Connect of water inlet valve The height of the drainage outlet must be 80-100cm. To prevent the drainage hose from dropping off, fix it to the drainage hose clip at the back of the washing machine.

  • Page 12: Net Dimension

    Front Load Washing Machine Model: PFL1266W-E/F Net Dimension height: 850mm / width: 595mm / depth: 520mm Page 11...

  • Page 13: Names Of The Parts

    Front Load Washing Machine Model: PFL1266W-E/F Name of the parts Detergent dispenser Top Cover Program selector Button Door handle Porthole Bottom plaque Page 12...

  • Page 14: Operational Functions

    Front Load Washing Machine Model: PFL1266W-E/F Opertional Functions Pre-wash Cotton Synthetic Wool Cashmere Silk Quick Wash Rinse Spin Drain Delay Power Temperature Spin Start/Pause Power Switch Press this button to switch on the washing machine. Press it again to switch it off. Start / Pause Button When the washing machine is connected to the power socket and a program is selected, washing operation will start.
  • Page 15 Front Load Washing Machine Model: PFL1266W-E/F Functions F: Delay Button Touch this button lightly, the washing machine will start operation after a period of time and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this button increases a half hour.

  • Page 16: Program Description Table

    Front Load Washing Machine Model: PFL1266W-E/F Page 15...

  • Page 17: Error Display And Troubleshooting

    Front Load Washing Machine Model: PFL1266W-E/F Error Display and Troubleshooting Error message:Door is not properly shut 20s after program is started. Troubleshooting: Pushing the door to Check Whether Door Shut the door properly. is properly shut or not 220-240v Cut off the power and then turn on again. Door lock broken...

  • Page 18: Troubleshooting

    Front Load Washing Machine Model: PFL1266W-E/F Error message:Temperature sensor is not properly connected or damaged (display at the end of a program). Troubleshooting: Cut off power and measure the resistance NTC exist open circuit .Replace it of temperature sensor by multimeter, is it between 5-14k ? Check if NTC is connected properly Connect NTC well...
  • Page 19 Model: Front Load Washing Machine PFL1266W-E/F Error message:The required water level is not reached within 8 min Troubleshooting: Check if water is leaking from washer Readjust or replace the broken parts bottom. inlet pipe. drain pipe or other pipe connection Check if tap is closed or water pressure is too Open the tap or wait for normal water pressure to use low (usual between0.03-1 MPa)
  • Page 20 Front Load Washing Machine Model: PFL1266W-E/F Error message. Motor overheat protection or damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about Measure if resistance of motor winding by ten minutes, and then test again.
  • Page 21 Model: Front Load Washing Machine PFL1266W-E/F Error message. Water level exceeds protective value. Troubleshooting: Clean water switch hose and air Check if water switch hose and air collector collector are jammed Pull out water switch inserts and turn on power, then set wash mode. While water Replace water pressure switch is entering at the position of 1/4 glass window, check the resistance between...

  • Page 22: Failure:display Nothing Troubleshooting

    Model: PFL1266W-E/F Front Load Washing Machine Examination & Troubleshooting Failure:Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage Press the power switch Is power switch on? Press power switch and check the voltage Make sure power supply cable assembly is 220-240V between two pins of power switch.
  • Page 23 Front Load Washing Machine Model: PFL1266W-E/F Failure:no draining Troubleshooting: Adjust the height of drain pipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise open and check if Clean and tighten filter clockwise. filter is jammed Check if hose connecting cylinder to pump is Arrange hose and clean bent or jammed...
  • Page 24 Front Load Washing Machine Model: PFL1266W-E/F Failure:water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it. or the tap Replace drain pipe Is drain pipe broken Remove clothes Check if there is foreign material nipped between cushion of sight window and sight window Check if all tubes and tie-in is leaking Reassemble or repair...
  • Page 26 Front Load Washing Machine Model: PFL1266W-E/F Page 24...
  • Page 27 Front Load Washing Model: Machine PFL1266W-E/F Page 30...
