Siemens FDCAI181 Product Manual

Addressable external alarm indicator

Download this manual

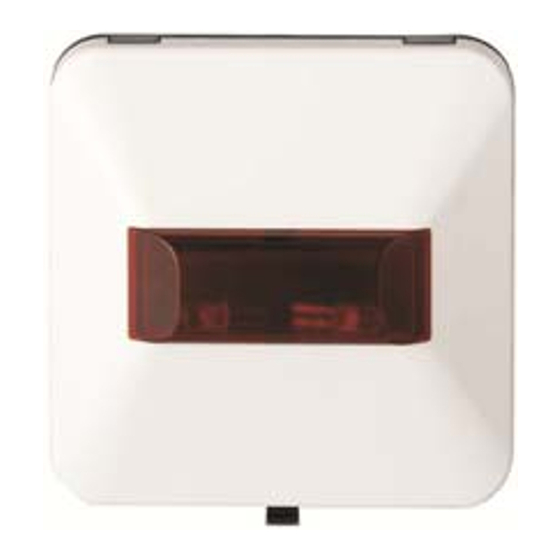

FDCAI181 Addressable Alarm Indicator

Product Manual

Characteristics

Function

– Addressable external alarm indicator

– Indication of detectors in alarm in ceiling voids etc.

– Free programmable

– Communication via FD18-BUS (individual addressing)

– Modern flat design

– Non screw terminals

– Ecologically processing

– Recyclable materials

– Electronic and synthetic materials easily separable

– The FDCAI181 alarm indicator is connected to the loop and can be programmed to

indicate quickly the source of an alarm signal from detectors which are not easily ac-

cessible or visible.

– Addressing and control takes place via the control panel. The alarm indicator is

switched as if it was a detector in the detector line.

– The alarm indicator has 2x2 connectors for the detector line.

– The alarm indicator contains indicator lamps (LEDs). They light up as soon as the

connected fire detector gives an alarm.

Building Technologies

CPS Fire Safety

Page 1 – Electronic and synthetic materials easily separable Function – The FDCAI181 alarm indicator is connected to the loop and can be programmed to indicate quickly the source of an alarm signal from detectors which are not easily ac- cessible or visible.
Page 2 Application – Indication of the alarm from detectors hidden from view. E.g. Ceiling voids, offices, store rooms etc. – For application in dry areas – Corridor indication of rooms covered by radio devices or over the door of monitored rooms FD18-BUS Addressable alarm indicator Installation...
Page 3 4 mm (Fig. 4, Fig. 5). Remove the white cover cap from alarm indicator FDCAI181 (press the black cam). Attach the base plate of the alarm indicator to additional frame AI330 with 2 wood or sheet-metal screws of di- ameter 3 mm, max.
Page 4 Designation Weight FDCAI181 S54370-F21-A1 Addressable alarm indicator 0.0493 kg Beijing Siemens Cerberus Electronics Limited © Data and design subject to change without notice. No.1,Fengzhidonglu, Xibeiwang, HaiDian District, Beijing, 100094, China Tel: +10 6476 8806 Fax: +10 6476 8899 Doc No.
