System Upgrade

E
N
G
L
I

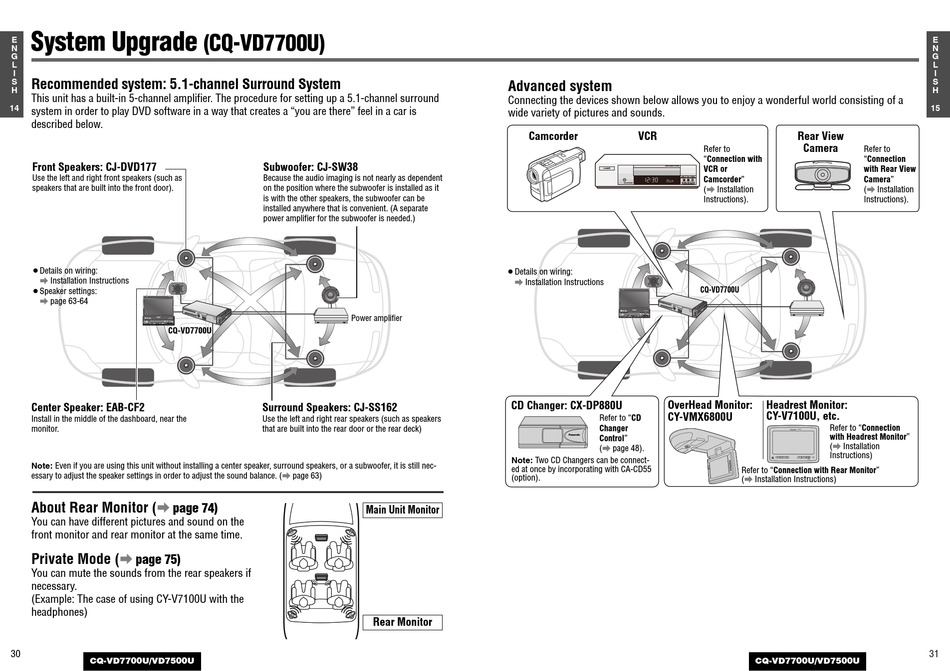

S Recommended system: 5.1-channel Surround System
H
This unit has a built-in 5-channel amplifier. The procedure for setting up a 5.1-channel surround
14
system in order to play DVD software in a way that creates a "you are there" feel in a car is
described below.
Front Speakers: CJ-DVD177
Use the left and right front speakers (such as
speakers that are built into the front door).
¡Details on wiring:
a Installation Instructions
¡Speaker settings:
TILT OPEN / CLOSE
page 63-64
a
OPEN / CLOSE
CQ-VD7700U TILT
CQ-VD7700U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER CHANNEL TRACK/
OPEN ENTER
DISC
VOLUME MUTE NAVI DISP MODE ASP P·MODE SD CARD
NAVIGATION POWER ASPECT
CQ-VD7700U
Center Speaker: EAB-CF2
Install in the middle of the dashboard, near the
monitor.
Note: Even if you are using this unit without installing a center speaker, surround speakers, or a subwoofer, it is still nec-
essary to adjust the speaker settings in order to adjust the sound balance.
About Rear Monitor (
a page 74)
You can have different pictures and sound on the
front monitor and rear monitor at the same time.

Private Mode (

page 75)
a
You can mute the sounds from the rear speakers if
necessary.
(Example: The case of using CY-V7100U with the
headphones)
30
CQ-VD7700U/VD7500U
(CQ-VD7700U)
Subwoofer: CJ-SW38
Because the audio imaging is not nearly as dependent
on the position where the subwoofer is installed as it
is with the other speakers, the subwoofer can be
installed anywhere that is convenient. (A separate
power amplifier for the subwoofer is needed.)
Power amplifier
Surround Speakers: CJ-SS162
Use the left and right rear speakers (such as speakers
that are built into the rear door or the rear deck)
(a page 63)
Main Unit Monitor
Rear Monitor

Advanced system

Connecting the devices shown below allows you to enjoy a wonderful world consisting of a
wide variety of pictures and sounds.
Camcorder VCR
INTELLIGENT SYSTEM
POWER
BS G-CODE
¡Details on wiring:
Installation Instructions
a
TILT
OPEN / CLOSE
OPEN / CLOSE
CQ-VD7700U TILT
CQ-VD7700U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER TRACK/
OPEN CHANNEL ENTER
DISC
SD CARD
VOLUME MUTE NAVIGATION NAVI DISP MODE POWER ASPECT ASP P·MODE
OverHead Monitor:
CD Changer: CX-DP880U
CY-VMX6800U
Refer to "CD
Changer
Control"
(a page 48).
Note: Two CD Changers can be connect-
ed at once by incorporating with CA-CD55
(option).
Rear View
Camera
Refer to Refer to
"Connection with "Connection
VCR or with Rear View
Camcorder" Camera"
(a Installation (a Installation
Instructions). Instructions).
CQ-VD7700U
Headrest Monitor:
CY-V7100U, etc.
Refer to "Connection
CY-V7100U
with Headrest Monitor"
(a Installation
Instructions)
PHONES
Refer to "Connection with Rear Monitor"
(a Installation Instructions)
CQ-VD7700U/VD7500U
