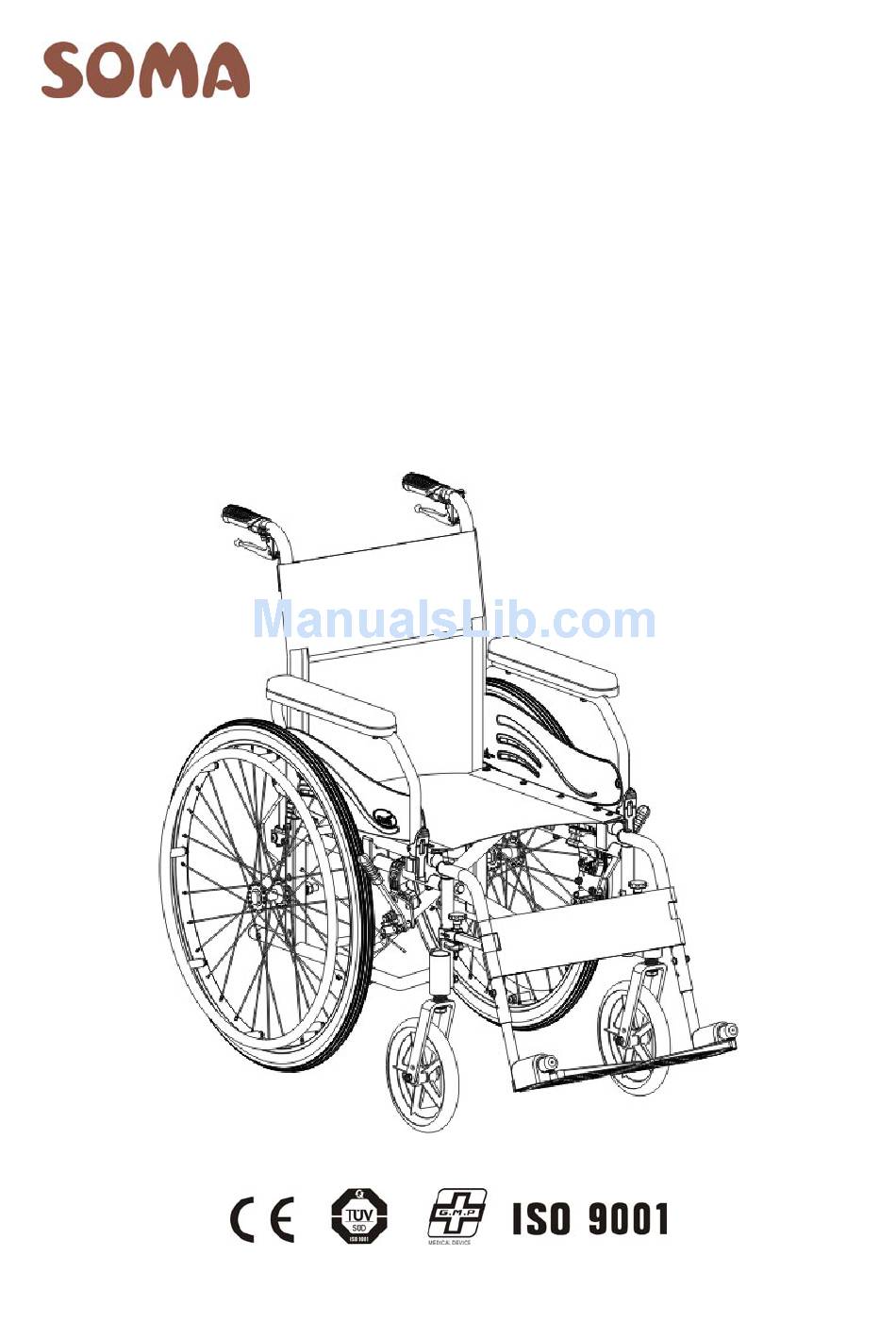

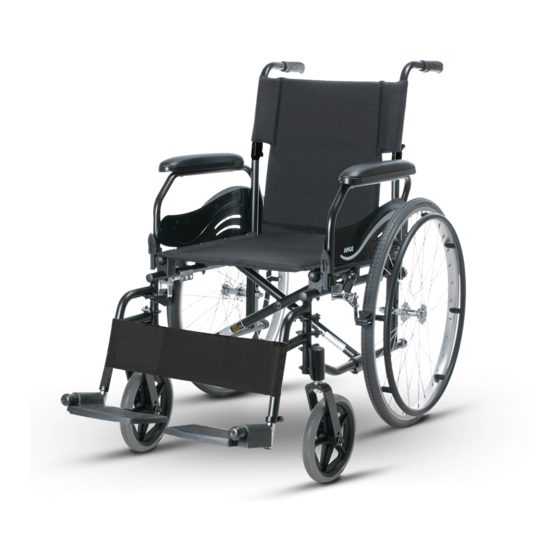

  • Page 1 Manual Wheelchair Owner's Manual Econ 800 Series...
  • Page 3 GENERAL WARNING  DO maintain your chair well, in particular check the tire pressure since this affects the efficiency of the brakes.  DO make sure both brakes are applied before getting in or out of the chair.  DO make sure both brakes are applied when the chair is not being pushed or used.
  • Page 4 If you cannot contact your dealer, please contact another authorized Karma dealer for service. If all else fails, contact Karma directly via our website or give us a call and we can refer you to your new service provider.
  • Page 5 CE MARKING This wheelchair complies with the requirements of the Medical Devices Directive 93/42/EEC. CAUTION: ● When prescribing wheelchairs for use by full or partial amputees (above or below knee, single or double) or other conditions that affects the user's natural center of gravity and might cause the wheelchair to tip or the person on the wheelchair to fall off, we suggest contacting your therapist or dealer as well as attaching anti-tippers, pelvic belt, or other additional safety accessories.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS .............. 1   1. PREFACE ................1   2. SAFETY .................. 2   3. INTENDED USE & PARTS ............. 5   4. OPERATION ................8   5. INSPECTION AND MAINTENANCE........19   6. OPTIONS AND ACCESSORIES ........... 23  ...

  • Page 7: Table Of Contents Table Of Contents

     This owner's manual is written for Karma wheelchair: Econ 800 (SM-802.2).  The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.

  • Page 8: Safety

     Never stand on the footplates when getting in or out of the chair.  Never carry more than one passenger. Karma wheelchairs are limited to one user.  Use caution to assure your clothing doesn't get tangled with the wheels.
  • Page 9 2.8 Transport  Do not use other transportation to pull the wheelchair.  Do not get transported on any vehicle while seated in your wheelchair. Karma doesn't approve of any tie-down systems. Please transfer into seating approved by the automotive (or other) industry and wear a safety belt.
  • Page 10 Figure 2.1 Figure 2.2 Figure 2.3 Figure 2.4 Figure 2.5...

  • Page 11: Intended Use & Parts

    2.13 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference. 3. INTENDED USE & PARTS 3.1 Intended Use  The Econ 800 series (SM-802.2) is a self-propelled chair. That is, it can either be pushed by an attendant or by the patients themselves.
  • Page 12 3.2 Econ 800 Parts Description 3.2.1 Econ 805 Parts Description 1. Push Handle 7. Armrest 2. Backrest Upholstery 8. Side Panel 3. Rear Wheel 9. Seat Upholstery 4. Brake 10. Footrest 5. Cross Frame (Cross Bar) 11. Calf Strap 6. Castor(Caster) 12.
  • Page 13 3.2.2 Econ 805 Parts Description 1. Push Handle 7. Back Joint 2. Backrest Upholstery 8. Armrest 3. Rear Wheel 9. Side Panel 4. Brake 10. Seat Upholstery 5. Cross Frame (Cross Bar) 11. Footrest 6. Castor(Caster) 12. Calf Strap 13. Footplate...

  • Page 14: Operation

    4. OPERATION 4.1 Preparing For Use 4.1.1 Unfolding  Holding the armrests, pull outwards. (See Figure 4.1)  Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. Make sure the frame is firmly seated in its holder. (See Figure 4.2) ...

  • Page 15: Figure

    CAUTION: When completing step 2 never put your fingers around the sides or under the chair as they can be trapped between the seat and the frame. (See Figure 4.7) Figure 4.7 4.1.2 Folding  Flip up the footplates. (See Figure 4.8) ...

  • Page 16: Figure

    CAUTION: Be careful not to get your fingers caught when folding the wheelchair. 4.1.3 Adjustments 4.1.3.1 Armrest Armrest flips back by pressing the release lever located at the front base of the armrest. After you press the release lever, you can lift and rotate the armrest backwards.

  • Page 17: Figure

    (See Figures 4.17) 4.1.3.4 Footplate Height  To adjust footplate height use the Karma tool provided to loosen the bolt at the side of the footrest arm.  Adjust to required height and re-tighten the screw and make sure the footplate is firm.

  • Page 18: Figure

    Figure 4.17 Figure 4.18 Figure 4.19 SUGGESTION:  Make sure that the footplate height is adjusted properly according to the user's calf length to reduce pressure on the body.  The footrest height must be more than 5 cm. (See Figure 4.19) 4.1.3.5 Seat Height ...
  • Page 19 Figure 4.20 CAUTION: When you change wheel position (whether rear wheels or casters) the center-of-gravity will change simultaneously. We recommend you contact your Karma dealer and therapist, as well as attach anti-tippers.
  • Page 20 Front Front Front Wheels Wheel Push Caster Seat Caster Seat Caster Size Handle Fork Bolt Fork Height Size Angle Angle (inch) Position Height Direction (mm) (inch) Position 8” 24” 4° 90° 8” 24” 4° 90° 8” 16” 4° 91° 6” 16”...
  • Page 21 Make sure the wheelchair is folded when stored. SUGGESTION: Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult your Karma dealer. WARNING: Don't put anything on the wheelchair while it is in storage.
  • Page 22 CAUTION:  Never stand on the footplates when getting into (or out of) the chair. (See Figure 4.22)  When getting in and out of the wheelchair please use the hand brake. The hand brake is the lever at the side of the wheelchair. ...
  • Page 23 Figure 4.22 Figure 4.23 Figure 4.24 Figure 4.25 Figure 4.26 Figure 4.27 Figure 4.28 Figure 4.29 4.3.2 Tilting by the Attendant  Make sure both the user's feet are on the footplates and will not slip off. Make sure the handgrips are secure and cannot slip off.
  • Page 24 4.3.3 Tilting by the User  Make sure your feet are on the footplates and will not slip off.  Release both brakes.  Grasp both push rims and give a firm, sudden forward push immediately before the obstacle, continue the momentum (be ready to keep pushing) until the obstacle is mounted.

  • Page 25: Inspection And Maintenance

    5.1 Daily Check Check the following items before traveling. If you find anything abnormal, visit your Karma wheelchair dealer for further inspection before using it.  Examine brakes, checking for wear, damage and misalignment. Replacing or adjusting the brakes should be carried out by your approved repairer.
  • Page 26  A qualified technician can be found with an authorized distributor/dealer. CAUTION: Visit a Karma wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record To make sure your wheelchair is in good condition, visit your Karma wheelchair dealer regularly for maintenance (and keep records accordingly) every six months after purchasing.
  • Page 27 SEAT & BACKREST Ⅴ  Inspect for rips or sagging Ⅴ  Inspect for loose or broken hardware CASTERS  Inspect the casters for smooth rotation of the caster wheel and Ⅴ caster assembly  Inspect the caster for wear in the bearings/mountings and for Ⅴ...
  • Page 28 CAUTION: ●If you find anything abnormal, stop using the wheelchair immediately and visit a KARMA wheelchair dealer for inspection and maintenance. ● As with any wheelchair, the wheels and tires should be checked periodically for cracks and wear, and should be replaced. Failure to keep tires at the correct pressure will reduce the braking efficiency.

  • Page 29: Options And Accessories

    ■Oxygen Tank Holder ■Backrest Bag - Standard size attaches to the back of - Standard size. wheelchairs. - Attaches to all Karma manual - Attaches to all Karma manual wheelchairs. wheelchairs. ■Folding Drink Holder ■ Anti-tippers - Collapses and adjusts to the size of - Attaches to all Karma manual the container (6-10 cm).

  • Page 30: Troubleshooting

    Thus, this should be performed by your approved repairer and therapist. 7. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a Karma wheelchair dealer. If you cannot solve the problem by yourself, please contact your Karma wheelchair dealer for help.

  • Page 31: Specifications

    8. SPECIFICATIONS Model 16” x 17” 17”x17” 18” x 17” 20” x 17” Overall Length (mm) 1110 Overall Width (mm) Overall Height (mm) Total Weight (kg) 14.6 14.7 14.8 15.0 Seat Width (mm) Seat Depth (mm) Seat Height (mm) Backrest Height (mm) Armrest Height (mm) Calf Length (mm) 390-480...

  • Page 32: Cleaning & Recycling

    9. CLEANING & RECYCLING 9.1 Cleaning In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. We suggest that you don't use your wheelchair in the rain or snow. If you are traveling and get caught in the rain, we suggest you try to find shelter while waiting it out.

  • Page 33: Warranty

     Warranty repairs can be performed by authorized Karma wheelchair dealers only.  Karma is not responsible for the transportation costs for repair and replacement.  Replaced parts will be the property of Karma. 10.2.2 Items Not Covered by Warranty ...
  • Page 34 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights If you purchase a second-hand Karma wheelchair while it is still with in the warranty period, bring this owner's manual and the wheelchair to the dealership where the wheelchair was purchased for registration.
