- Page 1 Manual Wheelchair Owner's Manual KM-2000 Series (KM-2500/KM-2500L)
- Page 3 GENERAL WARNING ● DO maintain your wheelchair well, in particular check the tyre pressure since this affects the efficiency of the brakes. Correct tyre pressure, please see the walls of the tyres. ● DO make sure both brakes are applied before getting in or out of the wheelchair. ●...
- Page 4 WARNING: ● As of this date, the KM-2000 series have NOT been tested for safety in collisions according to ISO 7176-19. Therefore, the KM-2000 series cannot be used as seats in any vehicles.
- Page 5 KARMA guarantees and what maintenance service and parts that are not covered by the warranty. ● KARMA does not have an official list of service providers at this time. Please contact your dealer for service. If you cannot contact your dealer, please contact another authorized KARMA dealer for service.
-
Page 6: Table Of Contents
TABLE OF CONTENTS 1. PREFACE ........................1 2. SAFETY.......................... 1 2.1 Doorways ......................1 2.2 Leaning ........................2 2.3 Negotiating Inclines ..................2 2.4 Kerbs ........................2 2.5 Stairs ........................3 2.6 Streets ........................3 2.7 General ........................3 2.8 Upholstery ......................4 2.9 Anti-tippers ...................... - Page 7 5. INSPECTION AND MAINTENANCE ..............18 5.1 Daily Check ......................18 5.2 Regular Maintenance Record ..............19 6. OPTIONS AND ACCESSORIES ................21 7. TROUBLESHOOTING ..................... 23 7.1 Trouble or Problems with Your Wheelchair ........... 23 8. SPECIFICATIONS ..................... 24 9.
-
Page 8: Preface
1.2 This owner's manual is written for KARMA wheelchair 1.3 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols. -
Page 9: Leaning
2.2 Leaning Do not lean over the side of your wheelchair since such an action may cause your to lose balance and fall. (See Figure 2.1.) 2.3 Negotiating Inclines 2.3.1 Never turn on a hill due to the danger of tipping. 2.3.2 When assisting, go straight up a slope. -
Page 10: Stairs
2.7.2 Never stand on the footplates when getting in or out of the wheelchair. 2.7.3 Never carry more than one passenger. KARMA wheelchairs are limited to one user. 2.7.4 Use caution to assure your clothing doesn't get tangled with the wheels. -
Page 11: Upholstery
grip points for using the pushrim. 2.8 Upholstery 2.8.1 When cleaning the upholstery, use warm water and a mild soap. 2.8.2 Upholstery cleaner/foam can also be used, but avoid other cleaning solvents. 2.8.3 Do be far away of flame, it might injury user and damage the wheelchair. 2.9 Anti-tippers Please strongly consider purchasing anti-tippers and always use them to avoid personal injury. - Page 12 Figure 2.1 Figure 2.2 Figure 2.3 Figure 2.4 Figure 2.5...
-
Page 13: Labeling
2.12 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference. only for seat width 18″ PU Casters... -
Page 14: Intended Use & Parts
3. INTENDED USE & PARTS 3.1 Intended Use 3.1.1 The KM-2000 series is a self-propelled or transit wheelchair. That is, it can either be propelled by an attendant (transit) or by the user (self-propelled) 3.1.2 These wheelchairs are suitable for users up to 100 kg for seat width 16”,and up to 115 kg for seat width 18”. -
Page 15: Km-2000 Parts Description

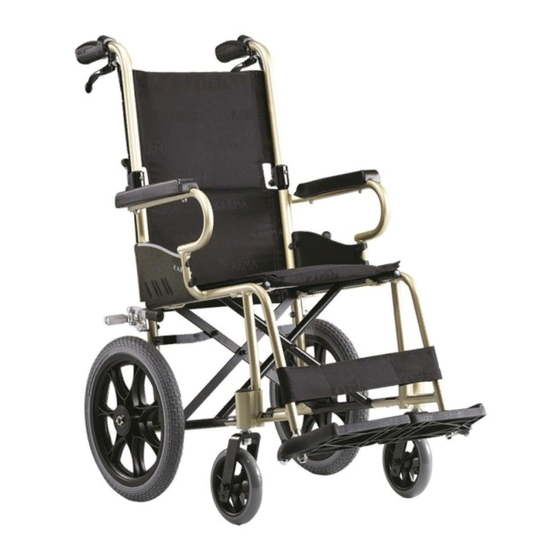

3.2 KM-2000 Parts Description 1. Push Handle 7. Caster 2. Attendant brake (optional) 8. Backrest Upholstery 3. Side Panel 9. Armrest 4. Brake 10. Seat Upholstery 5. Rear Wheel (KM-2500) 11. Calf Strap 6. Cross Brace (Cross Bar) 12. Footplate ＊KM-2500L is equipped with 20”... -
Page 16: Operation
4. OPERATION 4.1 Preparing For Use 4.1.1 Unfolding 4.1.1.1 Holding the armrests, pull outwards. (See Figure 4.1) 4.1.1.2 Pointing your fingers inward with the palm of your hand on the frame, push down until the seat is fully lowered. Make sure the frame is firmly seated in its holder. - Page 17 4.1.2 Folding 4.1.2.1 Swing up the footplates. (See Figure 4.5) 4.1.2.2 Pull up on the seat upholstery by holding it in the centre of its front and back edge. (See Figure 4.6) 4.1.2.3 Press the two release levers on the backrest frame (push handle tubes) to fold the backrest down for compact storage and easy transport.
- Page 18 4.1.5 Rear Wheel Attachment 4.1.5.1 First ensure that the brake is in the OFF position. 4.1.5.2 Take up the assembled wheel and axle and depress the button in the centre of the axle, as above. 4.1.5.3 This retracts the ball bearings that will allow you to push the axle into the wheel bracket that is located on the lower rear frame of the wheelchair.
-
Page 19: Storing
4.1.7.1 Footrests can swing out, which makes transferring easier. 4.1.8 Footplate Height 4.1.8.1 To adjust footplate height use the Karma tool provided to loosen the bolt at the end of the footrest arm. 4.1.8.2 Adjust to required height and re-tighten. (See Figure 4.11). -
Page 20: Transferring In And Out
4.3 Transferring In and Out 4.3.1 Transferring In 4.3.1.1 Engage both hand brakes 4.3.1.2 Turn the footplates up and swing them to the side 4.3.1.3 Lower the user into the seat, allowing them to use the armrests for support. 4.3.1.4 Turn the footplates back down, so that the user can place his feet on them. Ensure that the heels rest against the heel supports to prevent contact with the casters. -
Page 21: General Use
CAUTION: ● Never stand on the footplates when getting into (or out of) the chair. (See Figure 4.13). ● When getting in and out of the wheelchair please use the hand brakes. The hand brake is the lever at the side of the wheelchair. ●... - Page 22 windows or talk to people, remember to turn the chair so that the person in the chair does not have to turn WARNING: ● NEVER lock the brakes too quickly as this may tip the user out of the wheelchair. Figure 4.13 Figure 4.14 Figure 4.15...
- Page 23 will bring the wheelchair onto the back wheels. (See Figure 4.20.) CAUTION: ● When a wheelchair is tilted to about 25 degrees it will balance on its rear wheels and be easy to hold. If it is tilted further back it will be difficult to hold and the person in the wheelchair will feel unsafe.
- Page 24 slightly. Be ready to take the weight when the rear wheels cross the kerb edge. Ensure that both rear wheels touch the ground at the same time to avoid tipping the wheelchair. 4.4.4.1.3 Gently lower the front casters. AVOID JARRING THE USER. 4..4.5 Going Down Kerbs Backwards With an Attendant CAUTION: ●...
-
Page 25: Inspection And Maintenance
5.1 Daily Check Check the following items before traveling. If you find anything abnormal, visit your KARMA wheelchair dealer for further inspection before using it. 5.1.1 Examine brakes, checking for wear, damage and misalignment. Replacing or adjusting the brakes should be carried out by your approved repairer. -
Page 26: Regular Maintenance Record
5.1.7 A qualified technician can be found at an authorized distributor/dealer. CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record To make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance (and keep records accordingly) every six months after purchasing. - Page 27 If you find anything abnormal, stop using the wheelchair immediately ● and visit a KARMA wheelchair dealer for inspection and maintenance ● As with any wheelchair, the wheels and tyres should be checked periodically for cracks and wear, and should be replaced. Failure to keep tyres at the correct pressure will reduce the braking efficiency.
-
Page 28: Options And Accessories
6. OPTIONS AND ACCESSORIES ● Anti-Tippers ● I.V. Pole Holder - Attaches to all KARMA manual - Height adjusts from 130 cm (51") to wheelchairs 200 cm (78"). - Attaches to all KARMA manual wheelchairs. ● Oxygen Tank Holder ● Backrest Bag - Standard size attaches to the back of - Standard size. - Page 29 ● Headrest ● Multi-Purpose Safety Belt - Attaches to all KARMA manual - Attaches to all KARMA manual wheelchairs wheelchairs ● Folding Drink Holder - Collapses and adjusts to the size of the container (6-10 cm). - Attaches to all KARMA manual wheelchairs.
-
Page 30: Troubleshooting
7. TROUBLESHOOTING 7.1 Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action 1. Wheelchair Veers ● Check tyres for correct and equal pressure Right/Left ●... -
Page 31: Specifications
8. SPECIFICATIONS （±5 mm, ±0.5 kg） KM-2500 equipped 14″ rear KM-2500L equipped 20″ rear wheels wheels Model 16″*16″ 18″*16″ 16″*16″ 18″*16″ Overall Length 890 ㎜ ( 35 in) (mm/in) Overall Width 525 ㎜ 605 ㎜ 550 ㎜ 630 ㎜ (20.7 in) (23.8 in) (21.7 in) (24.8 in) -
Page 32: Cleaning & Recycling
Static Stability Test (According to ISO 7176-1:1999) Dummy Used 115 kg KM-2500L KM-2500 Forward 20° 20° Backward 10° 11° Anti-tip 11° Sideways 16° 10° -The degree tolerance is +0, -1 degree. CAUTION: ● Please don't travel across a slope (in any direction) greater than 7 degrees. 9. -
Page 33: Warranty
10.2.1.2 Warranty repairs can be performed by authorized KARMA wheelchair dealers only. 10.2.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.4 Replaced parts will be the property of KARMA. - Page 34 10.2.2.3 Problems arising due to lack of basic maintenance and self-inspection. 10.2.2.4 Damage resulting from use not following operation guidelines. 10.2.2.5 Installation or use of parts not manufactured by KARMA. 10.2.2.6 Damage resulting from use in unsuitable environments. 10.2.2.7 Any addition, modification, or alteration not authorized by KARMA.
- Page 35 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights If you purchase a second-hand KARMA wheelchair while it is still with in the warranty period, bring this owner's manual and the wheelchair to the dealership where the wheelchair was purchased for registration.
- Page 36 110404000026 104-40072 Rev:16 2019.08...
