OPERATION MANUAL
TKZ: 315 011 002 002
Ausgabe: 01 / 2015

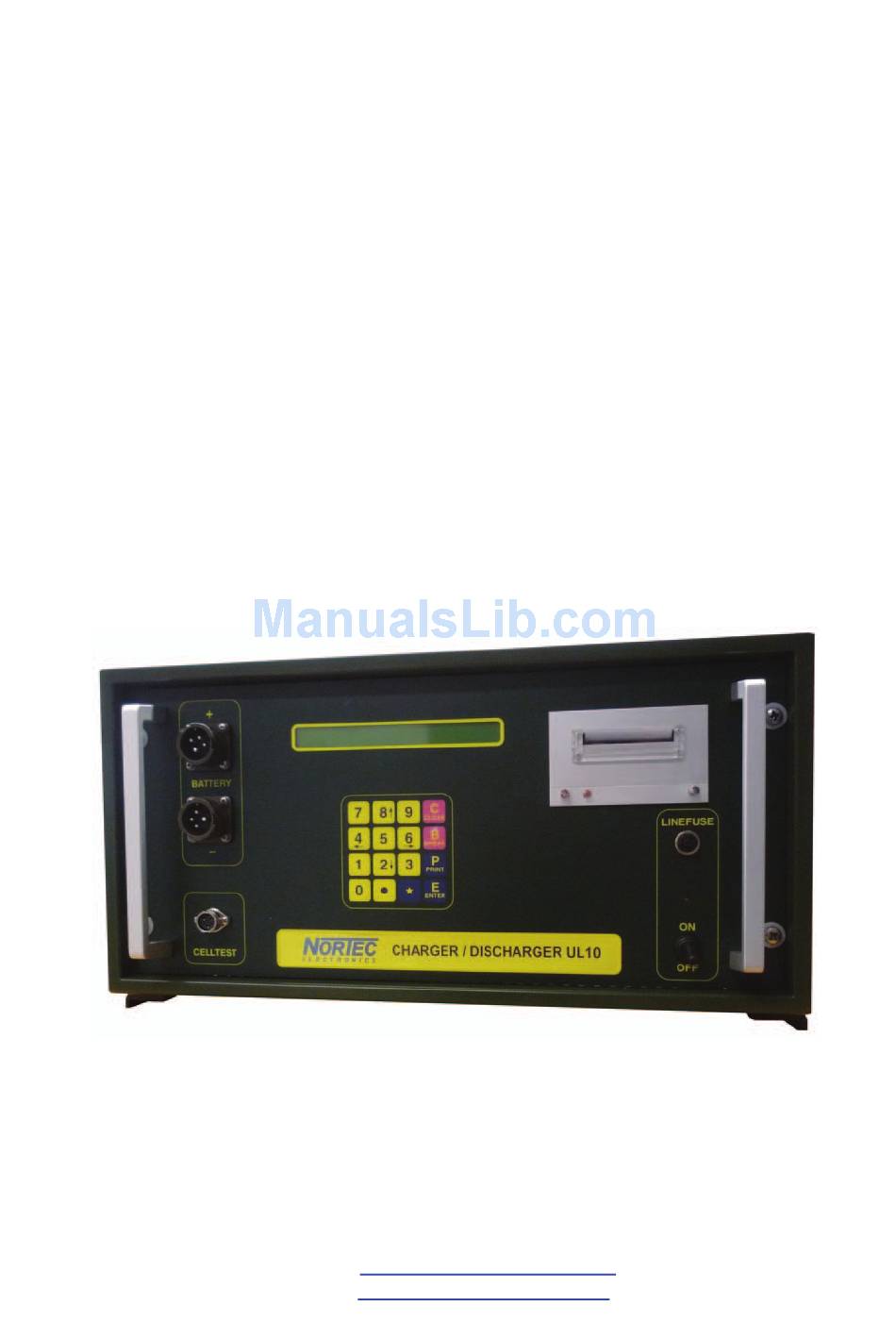

CHARGER / DISCHARGER
UL10
0 – 40V / 0 – 40A
TKZ: UL10.040000
Software-Version 20.108a
Dated 22.01.2013
COPYRIGHT
NorTec Electronics GmbH & Co. KG
An der Strusbek 32 B
D – 22926 Ahrensburg
Tel.: +49 4102 42002
Fax: +49 4102 42840
Email:
info@nortec-electronics.de
Web:
www.nortec-electronics.de
©
2003-2015 by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UL10 and is the answer not in the manual?

Questions and answers

Related Manuals for Nortec UL10

Summary of Contents for Nortec UL10

  • Page 1 0 – 40V / 0 – 40A TKZ: UL10.040000 Software-Version 20.108a Dated 22.01.2013 © COPYRIGHT 2003-2015 by NorTec Electronics GmbH & Co. KG An der Strusbek 32 B D – 22926 Ahrensburg Tel.: +49 4102 42002 Fax: +49 4102 42840 Email: info@nortec-electronics.de Web: www.nortec-electronics.de...
  • Page 2 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL © NorTec Electronics 2014...
  • Page 3 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL CHARGER / DISCHARGER UL10 © NorTec Electronics 2014...

  • Page 4: Table Of Contents

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL Contents 1  General ..........................6  1.1  Application..........................6  1.1.1  Range of functions ........................ 6  1.1.2  Design ........................... 6  1.2  Sphere of application ......................7  2  Organs of control and indication .................... 8  2.1  Front instrumentation panel ....................8 ...
  • Page 5 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.5.1  Principles of Program Selektion ................... 22  6.6  Types of batteries ........................ 24  6.7  Programming Matrix ......................24  6.8  Input of battery data ......................25  6.8.1  General ..........................25  6.8.2  Operation without battery Р:00 .................... 25 ...
  • Page 6 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.16  Program 230. Charging – aircraft nickel-cadmium battery type SAFT ........52  7.17  Program 231. Charging – aircraft nickel-cadmium battery type НКБН ......... 53  7.18  Program 410. Maintenance – air-tight aircraft lead acid battery ........... 54 ...

  • Page 7: General

    1.1 Application 1.1.1 Range of functions The battery charger-discharger UL10 serves to test, charge and discharge all types of batteries based on their particular approved characteristics and using various programs. A menu and a touch-input keyboard control all the programs.

  • Page 8: Sphere Of Application

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 1.2 Sphere of application The normal body of the device is designed for indoor operation without any special ventilation. It can be installed in a laboratory, a charging room, etc. The device is fully adapted for field service when packed into a polyethylene or corrugated card- board transport case.

  • Page 9: Organs Of Control And Indication

    It prints out all basic parameters of a battery and all errors, if necessary. The battery tester The battery tester is connected to the UL10 device with a plug-and-socket connector type VG 95 328 C10-6SN (6-contact). The battery tester enables to measure voltages of batteries between -4.0 to + 4.0 V.

  • Page 10: Rear Instrumentation Wall

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 2.2 Rear Instrumentation wall 2.2.1 Mains cable 2.2.2 Source of acoustic signals The source of acoustic signals informs the operator of the condition of the device; accordingly them the operator receives relevant instructions to execute. An error of input, a failure or operation finish can induce an acoustic signal.

  • Page 11: Principle Of Operation

    - connect the measuring cable when operating with nickel-cadmium batteries - the battery is connected to the UL10 with the cables from the delivery set (the cables with clamps (+ and -)). Check the polarity! When connecting the battery with the cable with tapered outlet clamps with built-in temperature sensors it is impossible to confuse the polarity because of the geometry of the poles of the battery.

  • Page 12: Warning

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 3.3.2 Warning Be cautious when touching! The rear face of the pull-out unit can heat, specifically when executing the discharge programs. The device disconnects in case of an intolerable temperature rise. Do not open the device when it is on! Even when the device is disconnected from the 220 V AC mains there remains inside the device a level of voltage dangerous to touch.

  • Page 13: Ratings

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 4 Ratings 4.1 Input & Output Parameters input voltage 220 V + 10% (single-phase alternating) input frequency 45-60 Hz input power 2000 VА external mains protection 16 А, mean inertia fan power about 100 / 300 l/min charge current range 0.5 –...

  • Page 14: Controls

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 5 Controls 5.1 General 5.1.1 Indikation The display of the device а UL 10 is divided into two parts (region 1 and region 2 below). Region 1 Region 2 The following Figure shows when information each region displays:...

  • Page 15: Keyboard

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 5.1.2 Keyboard Functions of keys CLEAR BREAK PRINT ENTER Special Program Decimal Point Digits 0-9 Digit 4 corresponds to command "forward" Digit 6 corresponds to command "backward" Digit 2 corresponds to command "downward" Digit 8 corresponds to command "upward"...
  • Page 16 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL • to 9 and . Input of digital data separated by a decimal point. • ENTER ↵ Confirmation of data input and messages or exit from information windows. • BREAK Interruption and /or completion of the current program at any moment of time.

  • Page 17: Self-Test

    - the software version - the software date - the check status COPYRIGHT 2000-2003 BY NORTEC UL10 V20.108 REVISION 11.10.2003 SELFTEST Test OK The test is complete Concurrently a short sound beep sounds indicating that the device is ready for operatation.

  • Page 18: System Adjustment

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6 System adjustment After self test and selection of the battery type the key * opens the menu to show options of Chang- ing various parameters of the device. The input data are saved in the energy-independent memory of the device and remain available when the device is switched on again or when voltage fails in the mains.

  • Page 19: Date Input

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.2 Date Input After the language is selected the time is set. Date Time 13.07.01 09:20:07 The cursor appears under the first item of the date. When the key ENTER↵ is hit the input data are saved.

  • Page 20: Print Out Functions

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.4 Print out functions 6.4.1 General The device is provided with a printer with electronic controls. It enables to register results of any op- eration with a battery in the form of a printed out acknowledgement. The print function in the menu can be enabled irrespective of the program input.

  • Page 21: Printing Programs

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.4.3 Printing Programs General 6.4.3.1 By hitting the key P the last printout appears in the main menu or in the submenu in the PP mode. 6.4.3.2 Program Р: printer and measurements of voltages of individual batteries The Program Р...
  • Page 22 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.4.3.3 Determination of battery voltage ================================ NORTEC COPYRIGHT 2000-2003 UL10 V20.108 SN: 110 350 -------------------------------- DATE: 03.04.12 BATTERY NO: 12345 OPERATOR NO: 0002 NOM. VOLTAGE: 24:00 V RATED CAP: 004.0 AH PROGRAM: -------------------------------- PROGRAM START...

  • Page 23: Program Selection

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.5 Program Selection 6.5.1 Principles of Program Selektion All working programs of the UL 10 device have digital designations: - The first digit represents the operation type - The second and third digits represent the battery type 6.5.1.1 Types of Operation...
  • Page 24 The operator selects the charging with direct current and the charging time. 6.5.1.1.6 Charging with direct voltage (=operation type 8) In this type of operation the device UL10 can be used for both, with and without the connected bat- tery as a direct voltage source.

  • Page 25: Types Of Batteries

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.6 Types of batteries The data of the main types of batteries are pre-installed in the UL 10device. Other types of batteries can also be checked and they can be charged using the available types.

  • Page 26: Input Of Battery Data

    When inputting the battery type and parameters the operation type is selected and the program is assigned automatically that the UL10 device should use. For proper execution of programs the data is needed about the composition of the connected battery.
  • Page 27 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL Note: The lead acid batteries consist, as a rule, of several batteries each with 2 V voltages. The following are standard: • the battery 2 V • the battery 6 V • the battery 12 V •...
  • Page 28 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL (1) starts the checking process from the first stage of the program : discharge by 5-hour current. The protocol is not printed out usually. Still it can be printed out at any moment of time by hitting the key (P).

  • Page 29: Operation With Nickel-Cadmium Batteries

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.8.4 Operation with nickel-cadmium batteries The information below relates to all types of batteries with the data input beginning with 2х and 3х. Below is the list of the types in question: • Type 20: enclosed aircraft nickel-cadmium batteries •...
  • Page 30 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL The maximum tolerable input of the number of cells is 26 (in the program 31:25) that correspond to the maximum: • nominal voltage 31.2 V and • final charge voltage 40.3 V To avoid false calculation the user should input just the number of batteries and hit ENTER↵.

  • Page 31: Readings On The Lc Display Of Program Data 420

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL ♦ (0) or (V) the device returns to the main menu. ♦ (1) Starts the process of checking with the first stage– discharge with the nominal cur- rent during 6 minutes. The key Р is hit to print out the protocol.

  • Page 32: Program 420 Stage 1

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.1 Program 420 Stage 1 P420:S1:DISCHARGE 1 19:31:43 24.06V 04.00A 000.5AH +008MIN --.-°C Program number Operation type 4 = maintenance Battery type 20 = enclosed aircraft nickel-cadmium battery number stage а = Stage 1...

  • Page 33: Program 420 Stage 2

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.2 Program 420 stage 2 P420:S2:I-CHARGE 1 19:37:38 24.64V 04.00A 000.5AH +007MIN --.-°C Program number operation type 4 = maintenance battery type 20 = enclosed aircraft nickel-cadmium battery stage number = Stage 2 stage name...

  • Page 34: Program 420 Stage 3

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.3 Program 420 stage 3 P420:S3:TOPPING CHARGE 1 20:42:38 29.64V 4.00A 4.019AH +058MIN --.-°C Program number operation type 4 = maintenance battery type 20 = enclosed aircraft nickel-cadmium battery stage number = Stage 3...

  • Page 35: Program 420 Stage 4

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.4 Program 420 stage 4 P420:S4:DISCHARGE 2 23:34:38 10.5V 04.00A 3.60 AH +054MIN --.-°C Program number operation type 4 = maintenance battery type 20 = enclosed aircraft nickel-cadmium battery stage number = Stage 4...

  • Page 36: Program 420 Stage 5

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.5 Program 420 stage 5 P420:S5:I-CHARGE 2 00:34:38 30.98V 4.00A 4.00AH +060MIN --.-°C Program number operation type 4 = maintenance battery type 20 = enclosed aircraft nickel-cadmium battery stage number = Stage 5 stage name...

  • Page 37: Program 420 Stage 6

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 6.9.6 Program 420 stage 6 P420:S6:TOPPING CHARGE 2 00:36:38 29.60V 0.40A 4.019AH +060MIN --.-°C Program number operation type 4 = maintenance battery type 20 = enclosed aircraft nickel-cadmium battery. stage number = Stage 6...

  • Page 38: Tabulated Program Progress Display

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7 Tabulated program progress display 7.1 Program 0. Discharge – any battery type Stage name Maximum duration Program number Operation number Operation type Discharge time and final Discharge voltage after discharge Battery type Manufacturing process...

  • Page 39: Program 10. Discharge - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.2 Program 10. Discharge – air-tight aircraft lead acid battery Stage name Maximum duration Program number Operation number Operation type Discharge Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves...

  • Page 40: Program 11. Discharge - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.3 Program 11. Discharge – Pb battery sealed commercial Stage name Maximum duration Program number Operation number Operation type Discharge Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves unavailable...

  • Page 41: Program 16. Discharge - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.4 Program 16. Discharge – Pb battery vented commercial Stage name Maximum duration Program number Operation number Operation type Discharge Battery type Lead acid Manufacturing process Liquid electrolyte Access to valves Open Battery type...

  • Page 42: Program 20. Discharge - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.5 Program 20. Discharge – enclosed aircraft nickel-cadmium battery Stage name Maximum duration Program number Operation number Operation type Discharge Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves Open Battery type Minimum battery capacity 4 Аh...

  • Page 43: Program 31. Discharge - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.6 Program 31. Discharge – enclosed aircraft nickel-cadmium battery Stage name Maximum duration Program number Operation number Operation type Discharge Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves Open Battery type Minimum battery capacity 4 Аh...

  • Page 44: Program 110. Commissioning - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.7 Program 110. Commissioning – air-tight aircraft lead acid battery Stage name Maximum duration Program number Operation number Operation type Commissioning Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves...

  • Page 45: Program 111. Commissioning - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.8 Program 111. Commissioning – Pb battery sealed commercial Stage name Maximum duration Program number Operation number Operation type Commissioning Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves unavailable...

  • Page 46: Program 116. Commissioning - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.9 Program 116. Commissioning – Pb battery vented commercial Stage name Maximum duration Program number Operation number Operation type Commissioning Battery type Lead acid Manufacturing process Liquid electrolyte Access to valves open Battery type...

  • Page 47: Program 120. Commissioning - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.10 Program 120. Commissioning – enclosed aircraft nickel-cadmium battery Stage name Maximum duration Program number Operation number Operation type Commissioning Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves Open Battery type Minimum battery capacity...

  • Page 48: Program 210. Charging - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.11 Program 210. Charging – air-tight aircraft lead acid battery Stage name Maximum duration Program number Operation number Operation type Charging Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves...

  • Page 49: Program 211. Charging - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.12 Program 211. Charging – Pb battery sealed commercial Stage name Maximum duration Program number Operation number Operation type Charging Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves unavailable...

  • Page 50: Program 216. Charging - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.13 Program 216. Charging – Pb battery vented commercial Stage name Maximum duration Program number Operation number Operation type Charging Battery type Lead acid Manufacturing process Liquid electrolyte Access to valves open Battery type...

  • Page 51: Program 220. Charging - Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.14 Program 220. Charging – aircraft nickel-cadmium battery Stage name Maximum duration Program number Operation number Operation type Charging Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves Open Battery type Minimum battery capacity...

  • Page 52: Program 221. Charging - Aircraft Nickel-Cadmium Battery Varta

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.15 Program 221. Charging – aircraft nickel-cadmium battery VARTA Stage name Maximum duration Program number Operation number Operation type Charging Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves Open Battery type Minimum battery Capacity...

  • Page 53: Program 230. Charging - Aircraft Nickel-Cadmium Battery Type Saft

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.16 Program 230. Charging – aircraft nickel-cadmium battery type SAFT Stage name Maximum duration Program number Operation number Operation type Charging Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves open, SAFT Co.

  • Page 54: Program 231. Charging - Aircraft Nickel-Cadmium Battery Type Нкбн

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.17 Program 231. Charging – aircraft nickel-cadmium battery type НКБН Stage name Maximum duration Program number Operation number Operation type Charging Battery type Nickel-cadmium Manufacturing process used plates Access to valves open, type НКБН...

  • Page 55: Program 410. Maintenance - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.18 Program 410. Maintenance – air-tight aircraft lead acid battery Stage name Maximum Duration Program number Operation number Operation type Maintenance Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves...

  • Page 56: Program 411. Maintenance - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.19 Program 411. Maintenance – Pb battery sealed commercial Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Lead acid Manufacturing process Gel / absorbed electrolyte Access to valves Unavailable...
  • Page 57 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL Note: when the maximum output current of the device is exceeded the maximum time para- meters change accordingly. © NorTec Electronics 2014...

  • Page 58: Program 416. Maintenance - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.20 Program 416. Maintenance – Pb battery vented commercial Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Lead acid Manufacturing process Liquid electrolyte Access to valves open Battery type...

  • Page 59: Program 420. Maintenance - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.21 Program 420. Maintenance – enclosed aircraft nickel-cadmium battery Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves open Battery type Minimum battery capacity...

  • Page 60: Program 421. Maintenance - Enclosed Aircraft Nickel-Cadmium Battery Type Varta

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.22 Program 421. Maintenance – enclosed aircraft nickel-cadmium battery type VARTA Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves open, type VARTA...

  • Page 61: Program 430. Maintenance - Enclosed Aircraft Nickel-Cadmium Battery Type Saft

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.23 Program 430. Maintenance – enclosed aircraft nickel-cadmium battery type SAFT Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves open, type SAFT...

  • Page 62: Program 431. Maintenance - Enclosed Aircraft Nickel-Cadmium Battery Type Нкбн

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.24 Program 431. Maintenance – enclosed aircraft nickel-cadmium battery type НКБН Stage name Maximum duration Program number Operation number Operation type Maintenance Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves open, type НКБН...

  • Page 63: Program 510. Direct Current Charging - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.25 Program 510. Direct current charging – air-tight aircraft lead acid bat- tery Stage name Maximum duration Program number Operation number Operation type Direct current charging Battery type Lead acid Manufacturing process Gel / absorbed electrolyte...

  • Page 64: Program 511. Direct Current Charging - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.26 Program 511. Direct current charging – Pb battery sealed commercial Stage name Maximum duration Program number Operation number Operation type Direct current charging Battery type Lead acid Manufacturing process Gel / absorbed electrolyte...

  • Page 65: Program 516. Direct Current Charging - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.27 Program 516. Direct current charging – Pb battery vented commercial Stage name Maximum duration Program number Operation number Operation type Direct current charging Battery type Lead acid Manufacturing process Liquid electrolyte Access to valves...

  • Page 66: Program 520. Direct Current Charging - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.28 Program 520. Direct current charging – enclosed aircraft nickel- cadmium battery Stage name Maximum duration Program number Operation number Operation type Direct current charging Battery type Nickel-cadmium Manufacturing process Fused electrodes Access to valves...

  • Page 67: Program 800. Constant Power Supply - Without Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.29 Program 800. Constant power supply – without battery Stage name Maximum duration Program number Operation number Operation type Source of voltage Battery type unavailable Manufacturing process Access to valves Battery type Minimum battery capacity...

  • Page 68: Program 810. Constant Power Supply - Air-Tight Aircraft Lead Acid Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.30 Program 810. Constant power supply – air-tight aircraft lead acid bat- tery Stage name Maximum duration Program number Operation number Operation type Source of voltage Battery type Lead acid Manufacturing process Gel / absorbed electrolyte...

  • Page 69: Program 811. Constant Power Supply - Pb Battery Sealed Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.31 Program 811. Constant power supply – Pb battery sealed commercial Stage name Maximum duration Operation number Operation type Battery type Source of voltage Manufacturing process Lead acid Access to valves Gel / absorbed electrolyte...

  • Page 70: Program 816. Constant Power Supply - Pb Battery Vented Commercial

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.32 Program 816. Constant power supply – Pb battery vented commercial Stage name Maximum duration Operation number Operation type Battery type Source of voltage Manufacturing process Lead acid Access to valves Liquid electrolyte Battery type...

  • Page 71: Program 820. Constant Power Supply - Enclosed Aircraft Nickel-Cadmium Battery

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 7.33 Program 820. Constant power supply – enclosed aircraft nickel- cadmium battery Stage name Maximum duration Operation number Operation type Battery type Source of current Manufacturing process Nickel-cadmium Access to valves Fused electrodes Battery type...

  • Page 72: Replacement Of Printing Paper And Ribbon

    CHARGER / DISCAHRGER UL10 OPERATION MAUNAL 8 Replacement of printing paper and ribbon 8.1 Ribbon replacement Name: ribbon (a pack of 2 pcs.) HTZ/TKZ: 101 033 111 000 The ribbon is replaced in the following procedure: - disconnect the device 220 V from the mains...
  • Page 73 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL - switch off the device © NorTec Electronics 2014...
  • Page 74 CHARGER / DISCAHRGER UL10 OPERATION MAUNAL Protection according to DIN 34 © NorTec Electronics 2014...
