Operation manual

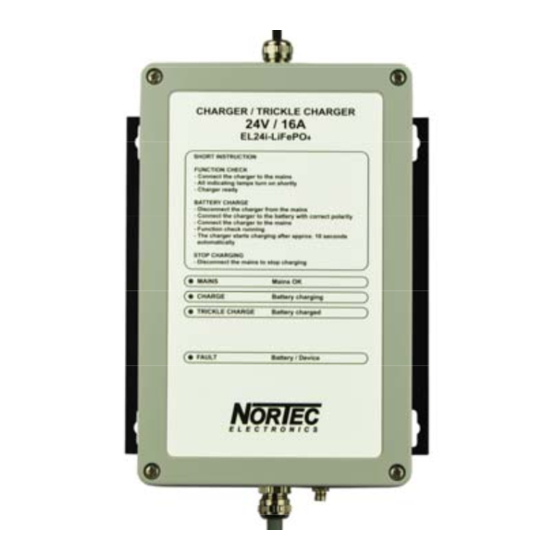

Battery charger and trickle charger 24V
for wall mounting
DC 24V 16A / DC 24V 2A // AC230V 50/60Hz
Version: 11.2019
Nortec Electronics GmbH & Co. KG
An der Strusbek 32 B
D-22926 Ahrensburg
Tel.: +49 / 4102/42002
Fax. +49 / 4102/42840
E-Mail: info@nortec.de
Web: www.nortec.de
EL24i-16
Copyright © 2019
Operation manual
Contents
1
Technical data ........................................................................................... 3
2
General information . ................................................................................. 5
3
Safetyinstructions ..................................................................................... 6
3.1
Intendeduse ...................................................................................... 6
3.2
Safetyinstructions ............................................................................. 6
3.3
Disposal ............................................................................................. 8
4
Connection and commissioning . ............................................................... 9
6
Function battery LOAD . ........................................................................... 11
6.1
Preliminarynote............................................................................... 11
6.2
Chargeable batteries and charging characteristics . ........................ 11
7
Opticalindicators ..................................................................................... 14
Page2
EL24i-16
© Nortec-Electronics 2019
Advertisement
Table of Contents
Related Manuals for Nortec EL24i-16
Summary of Contents for Nortec EL24i-16
-
Page 1: Table Of Contents
6.1 Preliminarynote................ 11 6.2 Chargeable batteries and charging characteristics ...... 11 7 Opticalindicators .................. 14 Copyright © 2019 Nortec Electronics GmbH & Co. KG An der Strusbek 32 B D-22926 Ahrensburg Tel.: +49 / 4102/42002 Fax. +49 / 4102/42840 E-Mail: info@nortec.de Web: www.nortec.de Page2 © Nortec-Electronics 2019... -
Page 2: Technical Data
-25 to + 40°C, (at higher operating temperature the output power is reduced) Typ: EL24i-16.1310 Storage temperature: -40 to +85°C Manufacturer: Nortec Electronics GmbH & Co. KG An der Strusbek 32 B Humidity: <(95-5)% at TU = 55°C D-22926 Ahrensburg Tel.: +49 / 4102 / 42002 Dimensions (LxBxH):... -
Page 3: General Information
Light emitting diodes keep you informed about the status of the battery and the device at all times. The battery charger EL24i-16 should only be operated in perfect condition while observing the operating instructions. The safety and operating instructions must be observed. -
Page 4: Disposal
EL24i-16 Operation manual Operation manual EL24i-16 Nortec Electronics is not responsible for any damage caused by improper Dangerous electrical voltage! connection. Never connect 230V to the battery connection cables. Do not lay any metal tools or objects on the battery. Charging non-rechargeable or mechanically damaged batteries may cause Do not wear metal ornaments such as rings, ... -
Page 5: Connection And Commissioning
These are 230V/50Hz. Due to the circuit design of the EL24i-16, no special sequence is required for operation and connection. We recommend the following procedure. It pro- vides you with the most efficient information. -
Page 6: Function Battery Load
(article Z0600660) with a rated voltage of 24V and a rated capacity of 5.0Ah designed. The battery charger and trickle charger EL24i-16 is equipped with an IUa 2A charging program (for deep-discharged batteries UIUa-charge) with the following charging areas: ... - Page 7 If the lower turn-on voltage of 25.4V during the trickle charge e.g. is exceeded by connecting consumers for more than 10 seconds. Charging cables and batteries must be checked for contamination and per- fect mechanical and electrical condition before connection. Page13 Page14 © Nortec-Electronics 2019 © Nortec-Electronics 2019...
- Page 8 "Monitoring phase" and "Charging phase": green LED lights up permanently FAULT: o "Device error": red LED flashes - device defective and for repair o "Battery error": red LED lights permanently - no or defective battery connected Page15 © Nortec-Electronics 2019...
