Center Instrument Panel Fuse Block; Top View - GMC 2008 Yukon Denali Owner's Manual

Harness
Connector
LT DR Driver Door Harness Connection
BODY Harness Connector
BODY Harness Connector

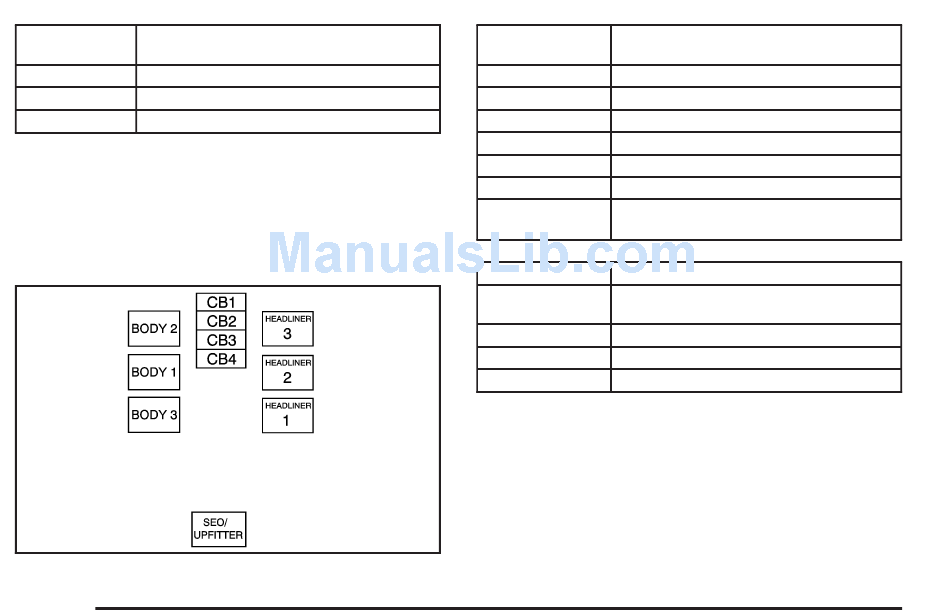

Center Instrument Panel Fuse Block

The center instrument panel fuse block is located
underneath the instrument panel, to the left of the
steering column.

Top View

5-110
Usage
Harness
Connector
BODY 2 Body Harness Connector 2
BODY 1 Body Harness Connector 1
BODY 3 Body Harness Connector 3
HEADLINER 3 Headliner Harness Connector 3
HEADLINER 2 Headliner Harness Connector 2
HEADLINER 1 Headliner Harness Connector 1
Special Equipment Option Upfitter
SEO/UPFITTER
Harness Connector
Circuit Breaker
Passenger Side Power Window
CB1
Circuit Breaker
CB2 Passenger Seat Circuit Breaker
CB3 Driver Seat Circuit Breaker
CB4 Rear Sliding Window
Usage
Usage
