W
iring diagram

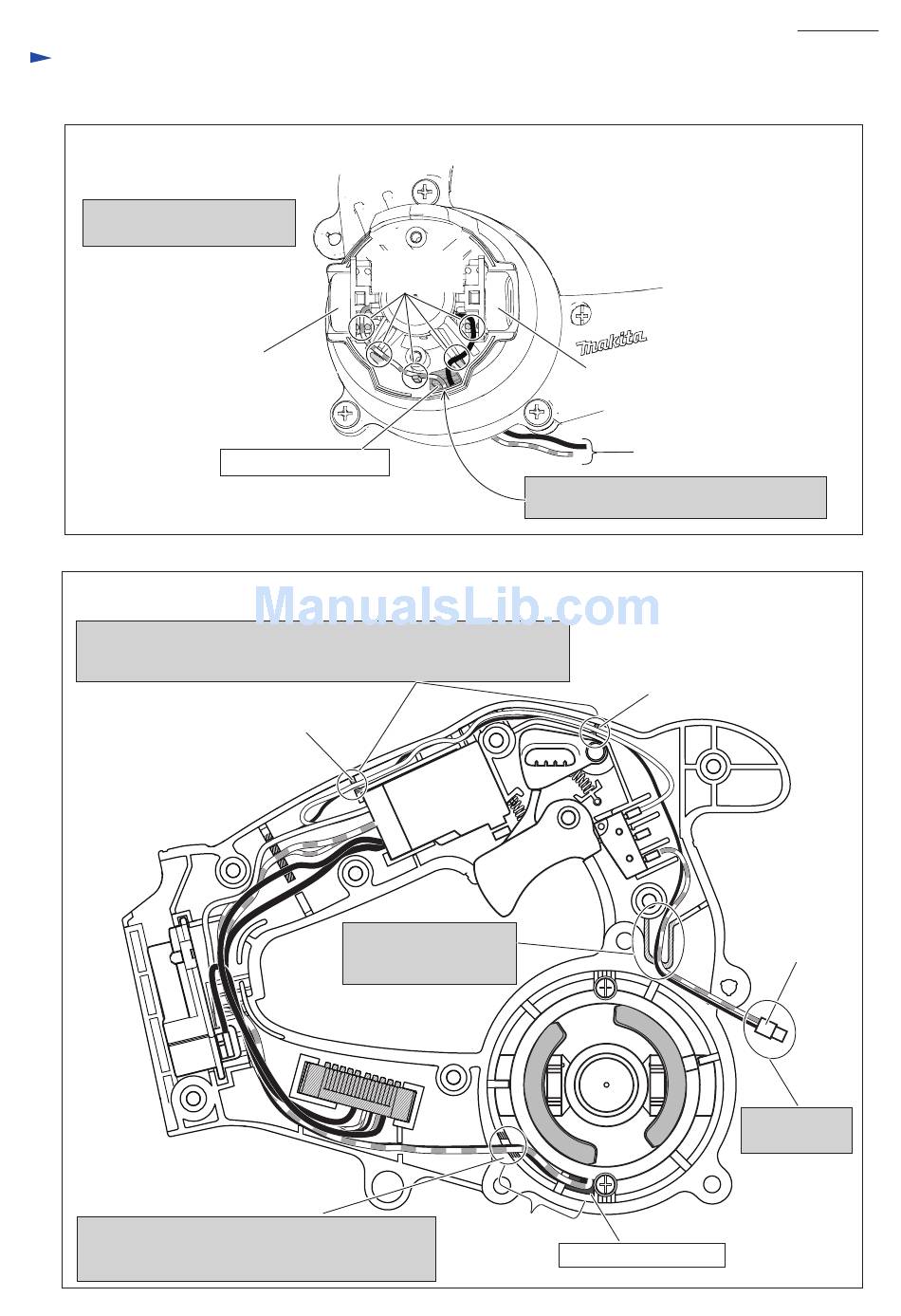

Fig. D-2
Fix Brush holder's Lead wires
in Lead wire holders.
Brush holder
Opening for Lead wires
Fig. D-3
Fix the following Lead wires in these Lead wire holders.
* Lead wre (white) between ON/OFF switch and Switch unit of LED
* Lead wire (black) between Controller and Connector
Lead wire holder
Fix Lead wires (black), (white) of Brush holders in
Lead wire holder here so as not to make any slacks
between Opening and the lead holder.
Wiring of Brush holder's Lead wires
Lead wire
holder
Wiring in Handle
Put Lead wires for
connecting to Connector
inside the Rib.
Brush holder
to ON/OFF Switch in Handle
Pass the Lead wires through the opening
to Blade case side.
Lead wire holder
Opening for Lead wire
P 15/ 16
Connector
See Fig. D-4 in
the next page.
