Dubbing
(cont.)

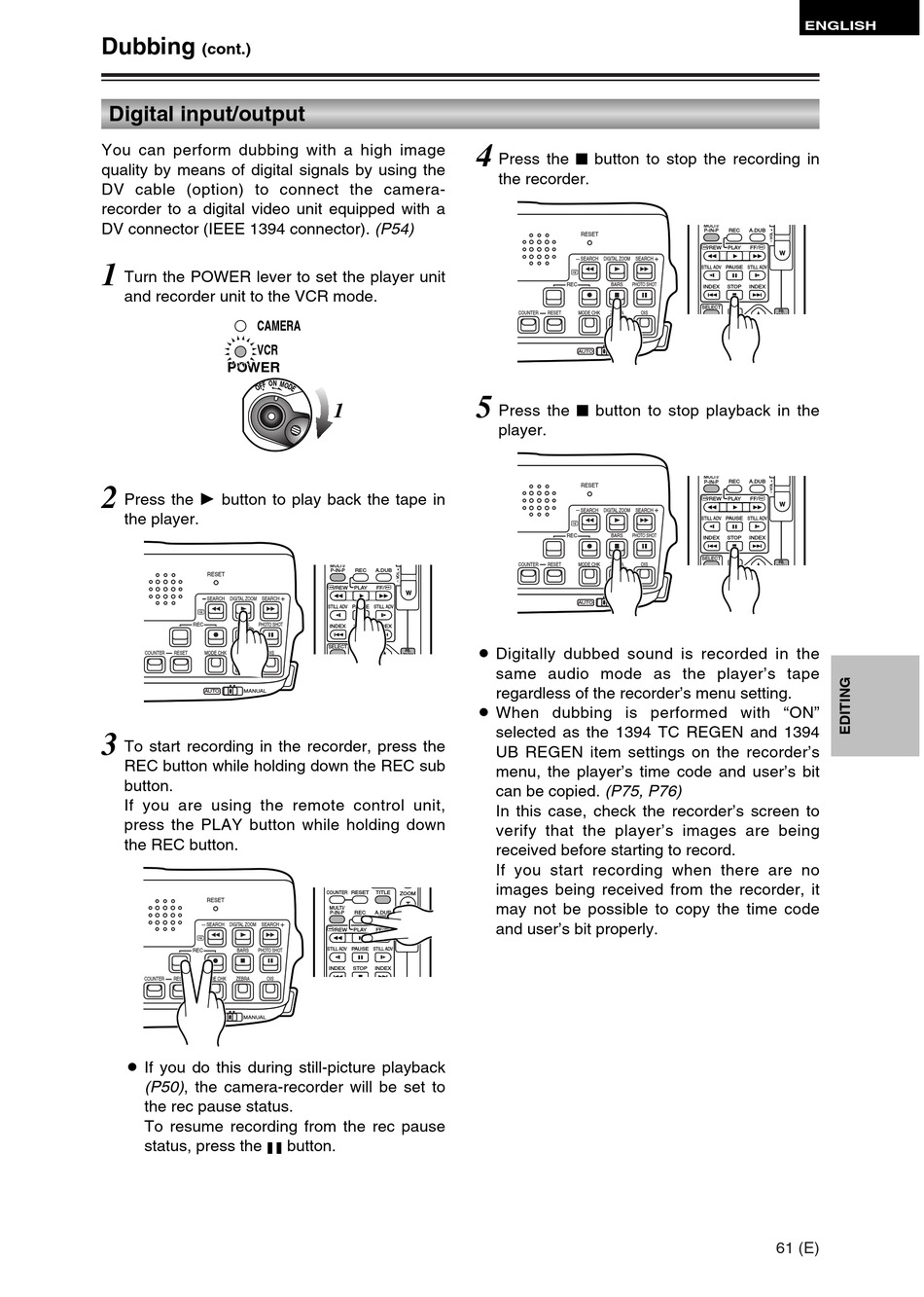

Digital input/output

You can perform dubbing with a high image
quality by means of digital signals by using the
DV cable (option) to connect the camera-
recorder to a digital video unit equipped with a
DV connector (IEEE 1394 connector). (P54)
1
Turn the POWER lever to set the player unit
and recorder unit to the VCR mode.
CAMERA
VCR
POWER
2
Press the 1 button to play back the tape in
the player.
RESET
SEARCH DIGITAL ZOOM SEARCH
REC BARS PHOTO SHOT
COUNTER RESET MODE CHK ZEBRA OIS
AUTO MANUAL
3
To start recording in the recorder, press the
REC button while holding down the REC sub
button.
If you are using the remote control unit,
press the PLAY button while holding down
the REC button.
RESET
SEARCH DIGITAL ZOOM SEARCH
REC BARS PHOTO SHOT
COUNTER RESET MODE CHK ZEBRA OIS
AUTO MANUAL
O If you do this during still-picture playback
(P50), the camera-recorder will be set to
the rec pause status.
To resume recording from the rec pause
status, press the ; button.
4
Press the $ button to stop the recording in
the recorder.
5
1
Press the $ button to stop playback in the
player.
MULTI/
P-IN-P REC A.DUB
C B
/REW PLAY FF/
STILL ADV PAUSE STILL ADV
INDEX STOP INDEX
SELECT
O Digitally dubbed sound is recorded in the
VAR. PB.
SEARCH ZOOM
same audio mode as the player's tape
regardless of the recorder's menu setting.
O When dubbing is performed with "ON"
selected as the 1394 TC REGEN and 1394
UB REGEN item settings on the recorder's
menu, the player's time code and user's bit
can be copied. (P75, P76)
In this case, check the recorder's screen to
verify that the player's images are being
received before starting to record.
If you start recording when there are no
images being received from the recorder, it
COUNTER RESET TITLE
ZOOM
may not be possible to copy the time code
MULTI/
P-IN-P REC A.DUB
and user's bit properly.
C B
/REW PLAY FF/
STILL ADV PAUSE STILL ADV
INDEX STOP INDEX
RESET
SEARCH DIGITAL ZOOM SEARCH
REC BARS PHOTO SHOT
COUNTER RESET MODE CHK ZEBRA OIS
AUTO MANUAL
RESET
SEARCH DIGITAL ZOOM SEARCH
REC BARS PHOTO SHOT
COUNTER RESET MODE CHK ZEBRA OIS
AUTO MANUAL
ENGLISH
MULTI/
P-IN-P REC A.DUB
C B
/REW PLAY FF/
STILL ADV PAUSE STILL ADV
INDEX STOP INDEX
SELECT
VAR. PB.
SEARCH ZOOM
MULTI/
P-IN-P REC A.DUB
C B
/REW PLAY FF/
STILL ADV PAUSE STILL ADV
INDEX STOP INDEX
SELECT
VAR. PB.
SEARCH ZOOM
61 (E)
