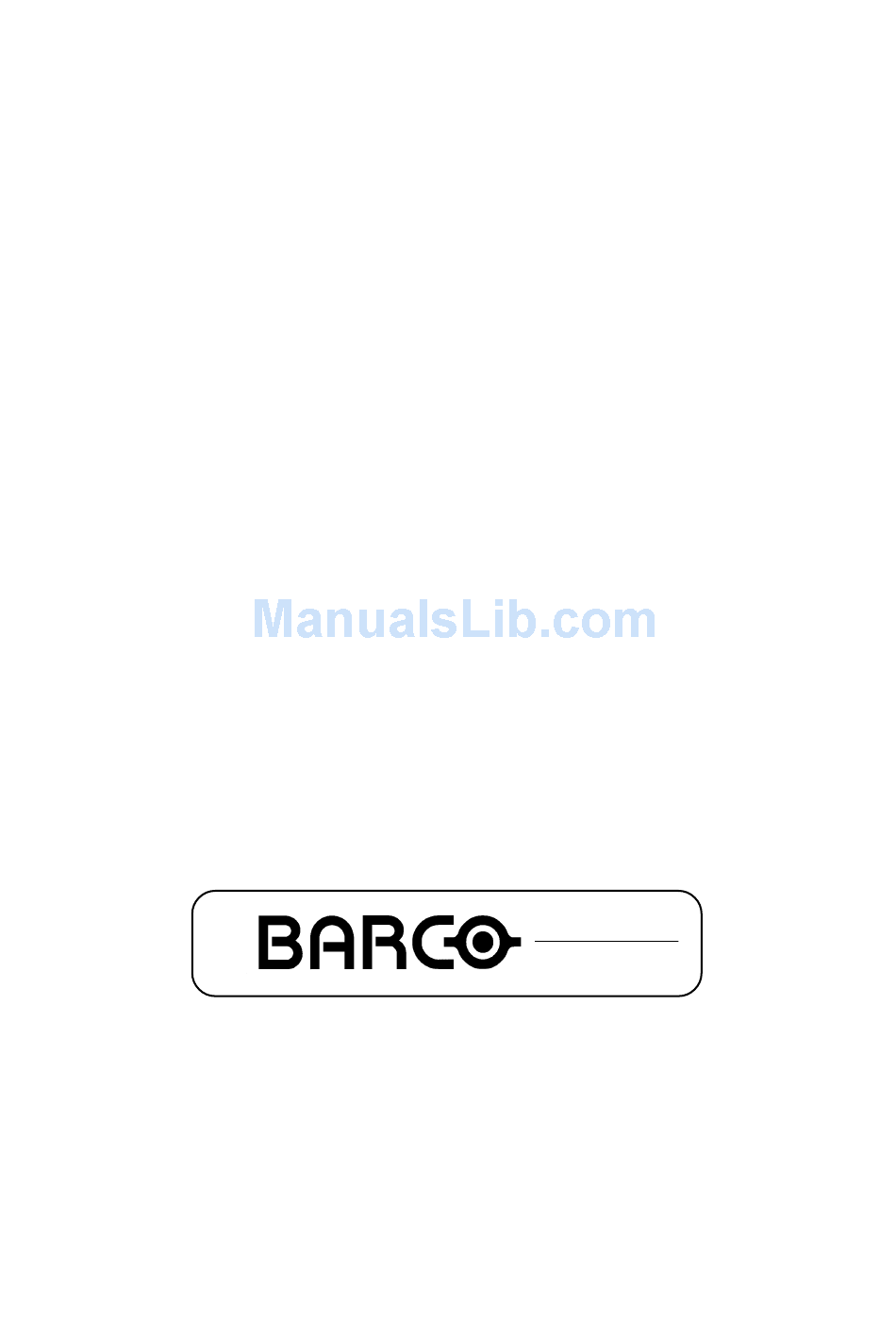

- Page 1 DATA 3300 TCR R9001450 INSTALLATION MANUAL...
- Page 2 BARCO PROJECTION SYSTEMS DATA 3300 TCR R9001450 INSTALLATION MANUAL Date : Art. No. : 121097 R5975129...
- Page 3 Produced by BARCO NV, October 1998. All rights reserved. Trademarks are the rights of their respective owners. BARCO nv/Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
-
Page 4: Table Of Contents
Starting up the Installation Mode ..............................1-1 Configuration ....................................1-1 Internal Patterns .................................... 1-1 How to use the built-in adjustable lensholder ..........................1-2 HARDWARE SET UP ....................................2-1 How to activate the password function ............................2-1 5975129 BARCODATA 3300 TCR 121098... -
Page 5: Installation Mode
OSD COLOR Convergence : to adjust the convergence of the LCD panels. For INTERNAL PATTERNS NO SIGNAL [BLACK] more information contact an authorised BARCO service technician. Configuration : to set up the projector position. Select with then <ENTER> OSD color : to change the color of the highlighted item. -
Page 6: Convergence Adjustment Of The Lcd Panels
LCD panel). When turning a screw in the direction marked by the arrow above the displayed screw on the screen, the line on the screen moves in the direction of the straight arrow. 5975129 BARCODATA 3300 TCR 121098... - Page 7 Repeat step g. and h. until the horizontal lines are converged. j. Adjust screw 6 for optimal convergence of the vertical lines. k. Repeat step i. and j. until a optimal convergence in horizontal and vertical direction is obtained. 5975129 BARCODATA 3300 TCR 121098...
-
Page 8: How To Use The Built-In Adjustable Lensholder
- Makes it possible to project a geometric non-distored image from a non-standard position. Lens shift up/down - The shift of the lensholder is not determined by the lens but depends Lens shift left/right on the screen width. - Can be used with all available lenses. 5975129 BARCODATA 3300 TCR 121098... - Page 9 Screen shift = lens shift x 1 + (Screen width / LCD panel width) LCD panel width for 3200 series : 0,06480 m (2.551 inch) -0,5 -5 mm -10 mm Maximum 15 mm downwards lens shift -1,5 Screen Width 5975129 BARCODATA 3300 TCR 121098...
-
Page 10: Hardware Set Up
The processor module with the DIP switches is located on the front Loosen the locking side. screws. Open the top cover When DIP switch 1 is in the : - ON position, password is activated. -OFF position, password not activated, service mode is free accessible. 5975119 BARCODATA 3300 121098...
