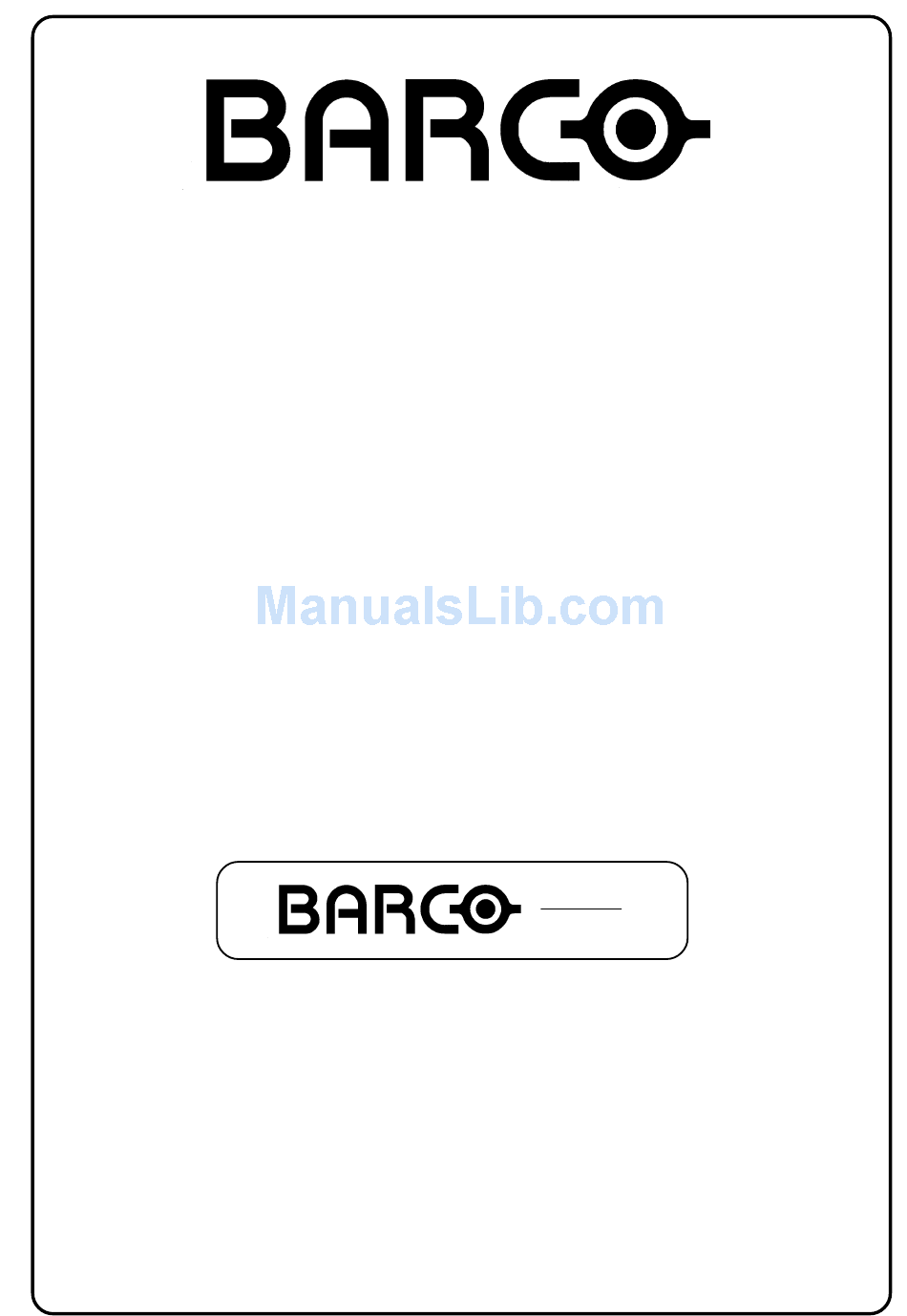

  • Page 1 BARCO PROJECTION SYSTEMS VISION 3200 R9001180 INSTALLATION MANUAL Date : Art. No. : 290997 R5975428...
  • Page 2 Produced by BARCO NV, September 1997. All rights reserved. Trademarks are the rights of their respective owners. BARCO nv/Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS TABLE OF CONTENTS ....................................i-1 SAFETY INSTRUCTIONS ..................................1-1 INSTALLATION MODE ..................................... 2-1 Starting up the Installation Mode ..............................2-1 Configuration ....................................2-1 Internal Patterns .................................... 2-1 How to use the built-in adjustable lensholder ..........................2-2 HARDWARE SET UP ....................................

  • Page 4: Safety Instructions

    The part number and serial number are located at the front of the of Part15 of FCC rules and EN55022. projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding General safety instructions. this product.
  • Page 5 Refer all projector service to a qualified BARCO of the room in which the projector is to be installed are non-reflecting, service center.
  • Page 6 L’installation et les réglages préliminaires devraient être faits par du et le récepteur se trouvent sur différents circuits électriques. personnel qualifié BARCO ou par des agents autorisés du service . Fixer les connecteurs des câbles a l’équipement au moyen des vis.
  • Page 7 N’utiliser que des lampes de projection indiquées par BARCO ou un * Avant de débrancher le projecteur, réduire la chaleur de la lampe agent autorisé de BARCO ou un service.

  • Page 8: Installation Mode

    Installation Mode INSTALLATION MODE Starting up the Installation Mode ADJUSTMENT MODE Push the control disk up or down to highlight Installation and then Select a path from below : press ENTER. RANDOM ACCESS ENTER continues to the Installation mode selection menu. INSTALLATION SERVICE EXIT returns to operational mode.

  • Page 9: Convergence Adjustment Of The Lcd Panels

    Installation Mode Convergence adjustment of the LCD panels. Every LCD panel has 6 adjustment screws. By turning these screws you change the relative position of the panels and converge the image. Always start with the adjustment of the green panel. When the green image is correctly focused, it will later on be used as the reference image to converge the red and blue image.
  • Page 10 Installation Mode Green focusing a. Insure all convergence screws are adjusted to a length of about 33 mm (1.3") between the two plates. b. Adjust the projection lens until optimal focus for point 1 is obtained. c. Turn screw 2 for optimal focus of the corresponding green line 2 on the screen.

  • Page 11: How To Use The Built-In Adjustable Lensholder

    Installation Mode l. Due to interaction, turning on screw 4, 5 and 6 can influence the focus of the image. If necessary, repeat procedure from step b. . Red on green convergence. Push the control disk up or down to highlight Red on green and press ENTER to display the Red on green test pattern.
  • Page 12 Installation Mode How to shift the image : hole - First shift the image left or right until the correct horizontal position indication line is obtained. Turn clockwise to shift the image to the right, turn counter clockwise to shift to the left. Use the hand screw. - Shift the image up or down until the correct vertical position of the image is obtained.

  • Page 13: Hardware Set Up

    Hardware Set Up HARDWARE SET UP Set up of the baud rate for communication with a computer. The communication speed between projector and computer, e.g. PC or MAC, has 8 possible speeds. With DIP switches S2(1,2,3) on the controller unit, it is possible to select the baud rate (communication speed).

  • Page 14: Set Up Of The Projector Address

    Hardware Set Up Set up of the projector address. Every projector requires an individual address between 0 and 255 which is set with hardware DIP switches. To change that address, it is necessary to first open the top cover (see 'Set up of the baud rate for communication with a computer' under this chapter.).
