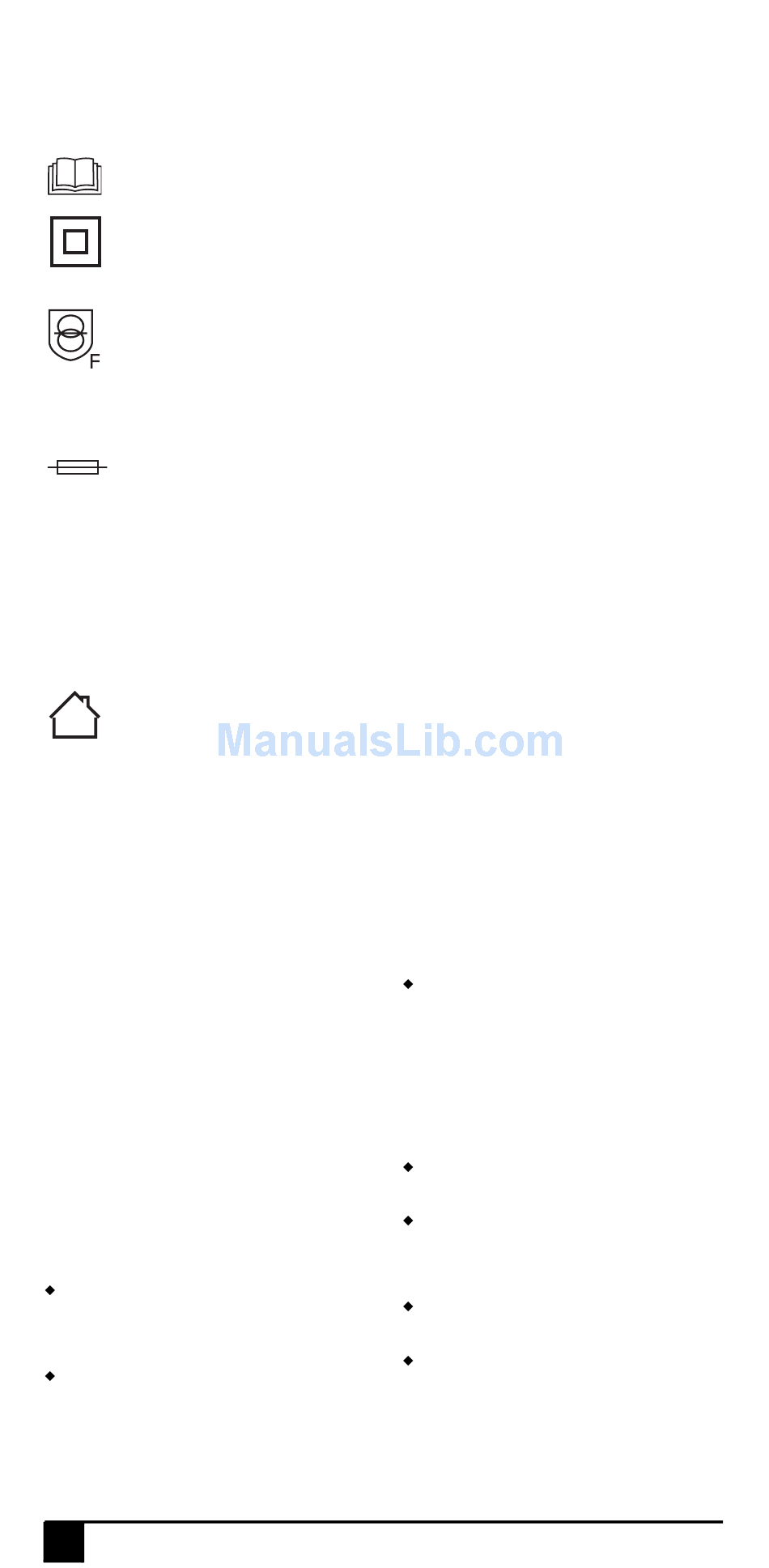

Symbols on the charger
Read all of this manual
carefully.
Your charger is double
insulated; therefore no earth
wire is required.
Fail-safe isolating transformer.
The mains supply is electrically
separated from the transformer
output.
The charger automatically shuts
o
130
C
off if the ambient temperature
becomes too high. As a
consequence the charger will be
inoperable. The charging base
must be disconnected from the
mains supply and taken to an
authorised service centre for
repair.
The charging base is intended
for indoor use only
Features
1. Dust collector
2. Release button
3. On/Off switch
4. Charging indicator
5. Filter cleaning button
6. Charging base
7. Powered brush head
Fig. A
8. Brush tool
9. Crevice tool
Identifying your product
The model design can be determined
from the suffix codes used in the
catalogue number. The following
catalogue numbers are described in this
manual:
DV96VXZ or DV12VXZ.
The suffix code V corresponds to the
following designs:
05: All units, supplied with a small
crevice tool and a brush tool.
The suffix code W is used to identify the
range of colour/finish options.
6
The suffix code X represented by the
letter T is used for models fitted with a
turbo brush
The suffix code Y represented by the
letter H is used for models fitted with a
HEPA filter.
The suffix code Z represented by the
letter N is used for models fitted with a
NiMH battery.

Installation

Fitting the charging base to the wall
The charging base can be placed on a
work top or fitted to the wall to provide a
convenient storage and charging point for
the appliance.
When fixing to a wall, make sure that the
fixing method is suitable for the wall type
and is appropriate to the weight of the
appliance.
Note: Please note, that the unit will not fit
onto the wall mounted charging base with
the powered head attached.
Assembly
Fitting the powered brush head
The brush head (7) allows for vacuuming
on cut pile carpeting. The brush head is
particularly useful for picking up hair,
threads, etc.
Insert the brush head (7) into the
front of the appliance. Make sure
that the brush head is pushed fully in.
Fitting the accessories (fig. A & B)
These models are supplied with some or
all of the following accessories:
A crevice tool (9) for confined
spaces.
A brush tool (8) for furniture and
stairs.
To fit an accessory, proceed as follows:
Take the accessory from its storage
position on the appliance (fig. J).
Insert the appropriate accessory into
the front of the appliance.
