- Page 1 Wired / Wireless Mega-Pixel CMOS PT IP Camera ICA-M220 / ICA-M220W Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Overview ....................3 2. Package Contents ..................4 3. Hardware Installation ................... 5 4. Web configuration access ................7 5. Cam Viewer Installation ................9 Further Information ...................14... -
Page 3: Overview

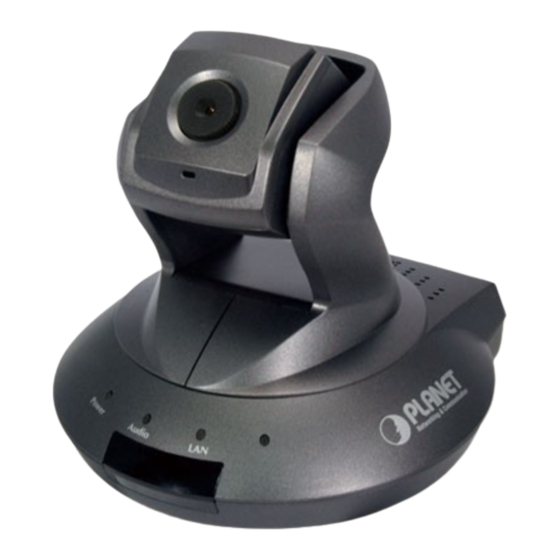

1. Overview Thank you for purchasing the Mega-Pixel Pan/Tilt Internet Camera. It is versatile and high image solution of surveillance application. The Mega-Pixel Pan/Tilt Internet Camera is also a stand-alone camera system with a built-in processor and web server that provides highest quality video and system performance. Before you start to use this PT Internet camera, please check the package contents. -
Page 4: Package Contents
2. Package Contents IP Camera Power Adapter Quick Installation Guide User’s Manual CD RJ-45 Cable Mounting Kit Antenna x 2 (ICA-M220W only) -
Page 5: Hardware Installation
3. Hardware Installation Before installation, please be sure to read this quick installation guide and user’s manual (CD) carefully to complete machine installation. This guide shows how to quick set up the two cameras. Step 1: Connecting Network Connect the Ethernet cable to your switch/hub, and connect the other end to the LAN jack of this IP camera. - Page 6 Step 3: Connecting Antennas (ICA-M220W only) Connect the antennas to the antenna base, located at the back of the camera. Please verify your wireless connection was enable and configured. The default Wireless setting of ICA-M220W: SSID: any Network Type: Infrastructure Note After configured the wireless setting, unplug the Ethernet cable that network will switch to wireless interface automatically.
-
Page 7: Web Configuration Access
4. Web configuration access The ICA-M220 and ICA-M220W camera provides GUI (Web based, Graphical User Interface) for management and administration. Step 1 Computer Network Setup Set your computer’s IP address to 192.168.0.x, where x is an integer between 1 to 254 (except 20 where is being used for the camera by default). - Page 8 Click on the message, and click “Install ActiveX Control…” When you see this message, click “Install” to install required ActiveX control You should be able to see the images captured from the camera in the web page now. For advanced functions, please refer to instructions given in user manual...
-
Page 9: Cam Viewer Installation
5. Cam Viewer Installation This chapter will guide you to install the central management software. The PT Internet Camera can be managed through its web interface. However, to central control, manage or record the cameras installed in the network Cam Viewer, the windows-based central management software are required. - Page 10 3. The welcome screen will display on the screen, please click “Next”. 4. Please read the license agreement and then check “I accept the terms of the license agreement” if you are agreed and click “Next” to continue the installa- tion...
- Page 11 5. Please key in user name and company name for which you want and click “Next” to continue installation. 6. Check the option “Complete” – all program features will be installed (Requires the most disk space) and click “Next” to continue installation.
- Page 12 7. “Ready to Install the Program” will appear to prompt you to start the installation. Please click “Install” to start. 8. Please click “No” to continue. In above step, when Cam Viewer works with MBM5 (Motherboard Monitor 5), Cam Viewer will display CPU temperature and fan speed.
- Page 13 9. Click “Finish” to complete the software installation. Now, you can central manage all the PT Internet Camera installed in your network. Please refer to the Cam Viewer guide in the CD-ROM for more.
-
Page 14: Further Information
Further Information This guide is used to help you startup your PT Internet camera settings. It is also recommended to check the user manual in CD disk for more details of the system and user configuration. - Page 15 This page is intentionally left blank...
