CMOS/Mega-Pixel CMOS/CCD Internet Camera
ICA-108 / ICA-108W / ICA-230 / ICA-M230 / ICA-501 /
ICA-601 / ICA-651
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICA-108 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet ICA-108

Summary of Contents for Planet ICA-108

  • Page 1 CMOS/Mega-Pixel CMOS/CCD Internet Camera ICA-108 / ICA-108W / ICA-230 / ICA-M230 / ICA-501 / ICA-601 / ICA-651 Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Chapter 1. Introduction ..................3 1.1 Before Installation ................3 Chapter 2. ICA-108/ICA-108W – Wired/Wireless IR IP Camera ......4 2.1 Package Content ................. 4 2.2 Physical Installation ................4 Chapter 3. Pan/Tilt IP Camera ................5 3.1 Package Content .................

  • Page 3: Chapter 1. Introduction

    Before installation, please be sure to read this quick installation guide and user’s manual (CD) carefully to complete machine installation. This QIG includes the following chapter: • Chapter2. ICA-108/108W – Wired/Wireless IR IP Camera • Chapter3. ICA-M230/230/501 – Pan/Tilt IP Camera • Chapter4. ICA-601 – Indoor Speed Dome IP Camera •...

  • Page 4: Package Content

    LED will be green; if LAN cable is removed; the ICA-108W will change to WLAN connection and LED change to orange color. 4. Place the ICA-108/ICA-108W on the table or fix it onto ceiling or wall Use screws to fix the ICA-108/ICA-108W onto the ceiling or wall. You could also put the ICA-108/ICA-108W in the table directly. 5. Attach the power supply Plug in power adapter and connect to power source.

  • Page 5: Chapter 3. Pan/Tilt Ip Camera

    Chapter 3. Pan/Tilt IP Camera 3.1 Package Content PT Internet Camera x 1 Power Adapter x 1 Camera Mount Kit x 1 CD Disk x 1 Quick Installation Guide x 1 1. if any of the above items are missing, please contact your dealer immediately. 2. Using a power supply with a different voltage that the one included with the package will cause damage and void the Note warranty.

  • Page 6: Ica-M230/230 Mega-Pixel Cmos/Cmos Pt Ir Ip Camera

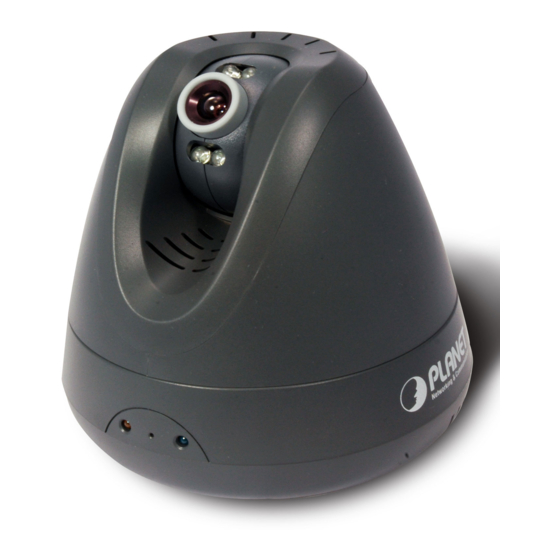

    3.2 ICA-M230/230 Mega-Pixel CMOS/CMOS PT IR IP Camera 3.2.1 Front Panel Lens & focus ring IR LEDs Microphone LAN LED Power LED These LEDs are Infra-Red type. It’s very useful for low- IR LEDs lux environment to provide supplementary light source for image sensor. Lens & focus ring User could use this ring to adjust focus manually. When LAN connected, this LED will on.

  • Page 7: Rear Panel

    3.2.2 Rear Panel Factory Default Reset DC Power Jack Audio Output Jack LAN Socket Audio Output Audio-out Jack allows this device to output audio or alerting Jack sound. The input power is 12VDC. DC Power Jack NOTE: Only use the power adapter supplied with ICA- M230/230. Otherwise, the product may be damaged.

  • Page 8: Ica-501 Ccd Pt Ip Camera

    3.3 ICA-501 CCD PT IP Camera 3.3.1 Front Panel Lens & focus ring Microphone LAN LED Power LED Lens & focus ring User could use this ring to adjust focus manually. When LAN connected, this LED will on. This LED will LAN LED flashing while network accessing via Ethernet. The Camera has built-in an internal microphone. This Microphone microphone is hidden in the pinhole located on the front...

  • Page 9: Rear Panel

    3.3.2 Rear Panel Factory Default DC Power Jack Audio Output Jack LAN Socket Audio Output Audio-out Jack allows this device to output audio or alerting Jack sound. The input power is 12VDC. DC Power Jack NOTE: Only use the power adapter supplied with ICA-501. Otherwise, the product may be damaged.

  • Page 10: Mounting The Pt Internet Camera

    3.4 Mounting the PT Internet Camera 3.4.1 Ceiling Mount 1. Fix the camera to L-type bracket with two supplied screws. 2. Fix the bracket and camera to the ceiling using two holly wall anchors and screws.

  • Page 11: Wall Mount

    3.4.2 Wall Mount 1. Fix the L-type bracket to the wall using two holly wall anchors and screws. 2. Fix the camera to L-type bracket with two supplied screws.

  • Page 12: Physical Installation

    3.5 Physical Installation 1. Connect an Ethernet cable Connect the LAN cable on the PT Internet Camera to the network device (hub or switch). If there has an IEEE802.3af PoE switch in your network, you can connect the ICA-230/M230 LAN cable to this PoE switch to obtain power. The power adapter is unnecessary when ICA-230/M230 is Note connected to a PoE switch. 2. Check the LED (Front Panel) The LED is defined to identify LAN connection type. When LAN port is connected, the LED will be green.

  • Page 13: Chapter 4. Ica-601 - Indoor Speed Dome Ip Camera

    Chapter 4. ICA-601 – Indoor Speed Dome IP Camera 4.1 Package Content ICA-601 x 1 Power Adapter x 1 Leaf Spring x 3 Screw x 3 Telephone box x 1 Utility and User’s Manual CD x 1 Quick Installation Guide x 1 1. if any of the above items are missing, please contact your dealer immediately. 2. Using a power supply with a different voltage that the one included with the package will cause damage and void the Note warranty.
  • Page 14 1. RJ-45 LAN socket: Connect to PC or Hub/Switch. For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network auto- matically. Please use Category 5 “straight through” cable to connect the ICA-601 to a 100Mbps Fast Ethernet network switch or hub. In case you need to connect the device to PC or notebook directly, you should use cross over cable instead.

  • Page 15: Physical Installation

    4.3 Physical Installation 1. Cut a 218~220mm diameter hole on false ceiling (according to speed dome outer cover). The ceiling needs to embed the 115mm depth speed dome IP cam body. 2. Take away the 3pcs leaf springs inside the accessory box. Attach the springs onto the outer cover. According to thickness of ceiling to adjust the location of springs.
  • Page 16 4. Find safety hook inside the outer cover. Use the safety hook hanging the inner speed dome cover 5. Have all the cables across the outer cover...
  • Page 17 6. Take away 3pcs screws inside the accessory box. Use the screws to fix the inner cover and outer cover.
  • Page 18 7. Check speed dome main body. Fit in the pin into pin hole of base plate. Drive 2pcs screws until the speed dome fits the plate tightly and solidly...
  • Page 19 8. Follow anti-clockwise to fix the hemisphere cover onto speed dome. 9. Done.

  • Page 20: Chapter 5. Ica-651 - Outdoor Speed Dome Ip Camera

    Chapter 5. ICA-651 – Outdoor Speed Dome IP Camera 5.1 Package Content ICA-651 x 1 Power Adapter x 1 Cable Tube x 1 Wrench x 2 Telephone box x 1 Utility and User’s Manual CD x 1 Quick Installation Guide x 1 1. if any of the above items are missing, please contact your dealer immediately. 2. Using a power supply with a different voltage that the one included with the package will cause damage and void the Note warranty.
  • Page 21 1. RJ45 LAN socket Connect to PC or Hub/Switch. For connect to 10Base-T Ethernet or 100Base- TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically. Please use Category 5 “straight through” cable to connect the ICA-530 to a 100Mbps Fast Ethernet network switch or hub.

  • Page 22: Physical Installation

    5. Line in (audio in) Connect an audio input source to the ICA-651. 6. Line out (audio out) Connect a loud speaker to the ICA-651. This function is for voice alerting and two- way audio. 5.3 Physical Installation 1. Remove power box from ICA-651. 2. Put the cable tube into the power box, and screw it. 3. Fixing power box on the wall. 4. Hook up the safety hook, and screw the two screws to fix the power and ICA- 651.

  • Page 23: Chapter 6. Ip Wizard Installation And Operation

    6.1 IP Wizard Installation In the installation steps below, this guide use ICA-108 as the example. However, the steps for ICA-108W/M230/230/501/601/651 are similar.
  • Page 24 4. The “Welcome to the InstallShield Wizard for IPWizard” will display on the screen and click “Next” to continue. 5. Please click “Next” to install with original settings, or you may click “Change…” button to modify the install folder then press “Next” to continue.
  • Page 25 6. Please click “Install” to start the installation. 7. Please click “Finish” to complete the installation 8. Please double-click the utility icon on the desktop then you will see the utility.

  • Page 26: Wizard Function

    9. Press “Search” button. IP Wizard will list all IP Cameras in your LAN environ- ment: Please connect you camera or video server to PC directly, and use IP Wizard to search IP address of device, when you use device at first time or forget IP address.

  • Page 27: Username And Password

    Please enter User Name and Password. Default Username is: admin, leave password blank. Then click “Submit”. 6.3 Username and Password You may change the ID and assign a new password to your device or keep the original and press “Next” to continue. If you assign new password to your device, please write down and avoid forgetting it.
  • Page 28 You can select “Static IP” and enter the IP settings. Or select “DHCP ON” when there is a DHCP server in your network. If no IP address is assigned after 30 seconds, Internet Camera will use its default address 192.168.0.20. Note User may open the web browser, and key in the IP address (for example: http://192.168.0.20, the default IP address) in the address field to login web...

  • Page 29: Chapter 7. Cam Viewer Plus Installation

    Chapter 7. Cam Viewer Plus Installation The Cam Viewer Plus Pro 30 days trial version installation steps are similar. Below is the installation of Cam Viewer Plus. Note Insert the bundled CD disk into the CD-ROM drive to launch the autorun program. Once completed, a welcome menu screen will appear.
  • Page 30 The “Welcome” window will then pop-up, click on “Next” to continue. You may choose where to install the program. Click on “Change” button to browse your computer. Once you have specified the directory, click on “Next” to continue.
  • Page 31 You are now ready to install the program. Click on “Install” to begin the installation process. You will now see the installation progress. Please wait a few minutes to complete the installation.
  • Page 32 Click on “Finish” to exit the InstallShield wizard. You will now be prompted to create an administrator account. This account allows full control of Cam Viewer Plus Pro. Enter a password for this administrator account in the “Password” field and re-enter it in “Password Confirm” field.
  • Page 33 You will then be prompted to login by the administrator user name and password. Enter “administrator” in the “User Name” field. Enter the password you just created in the “Password” field. You have successfully entered Cam Viewer Plus.

  • Page 34: Appendix A: Feature Listing For Cam Viewer Plus

    Appendix A: Feature Listing for Cam Viewer Plus Specification Description Cam Viewer Plus Pro Cam Viewer Plus Live view Max. channels monitored Up to 64 channels Up to 64 channels channel simultaneously Showing camera's location E-Map and map background Remote Provide remote server, Server support remote live view Counting Provide counting function Function...

  • Page 35: Appendix B: Suggest Hardware / System Requirement

    Appendix B: Suggest Hardware / System Requirement The Minimum system requirement Intel® Pentium 4 3.0GHz with Hyper- threading 1 GB Video RAM 128MB nVIDIA GeForce 8500GT Display Chip ATI Radeon HD 4350 Display Resolution 1024X768 24bits Windows2000 SP4 / Windows XP Pro SP2 / Operating System Windows 2003 /Vista DirectX...

  • Page 36: Ordering Information For Cam Viewer Plus Pro

    49-Channel Cam Viewer Plus Pro CVPP-64 64-Channel Cam Viewer Plus Pro Further Configuration If you want to configure more detail settings of ICA-108, ICA-108W, ICA-M230, ICA-230, ICA-501, ICA-601 and ICA-651, please refer to the user manual in the CD disk.
