Download this manual See also: Owner's Manual
11/14/2008

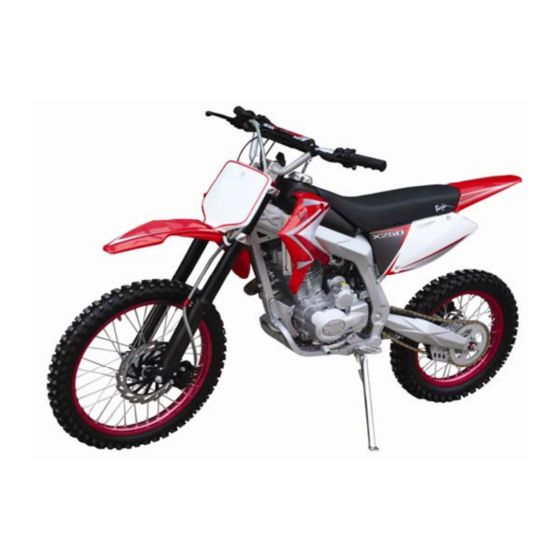

X250
Baja Motorsports Inc.
P.O. Box 61150
Phoenix, AZ 85082
PARTS AND PRICES ARE SUBJECT TO CHANGE
1 of 48
Toll Free: 888-863-2252

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X250 and is the answer not in the manual?

Questions and answers

Related Manuals for Baja motorsports X250

Summary of Contents for Baja motorsports X250

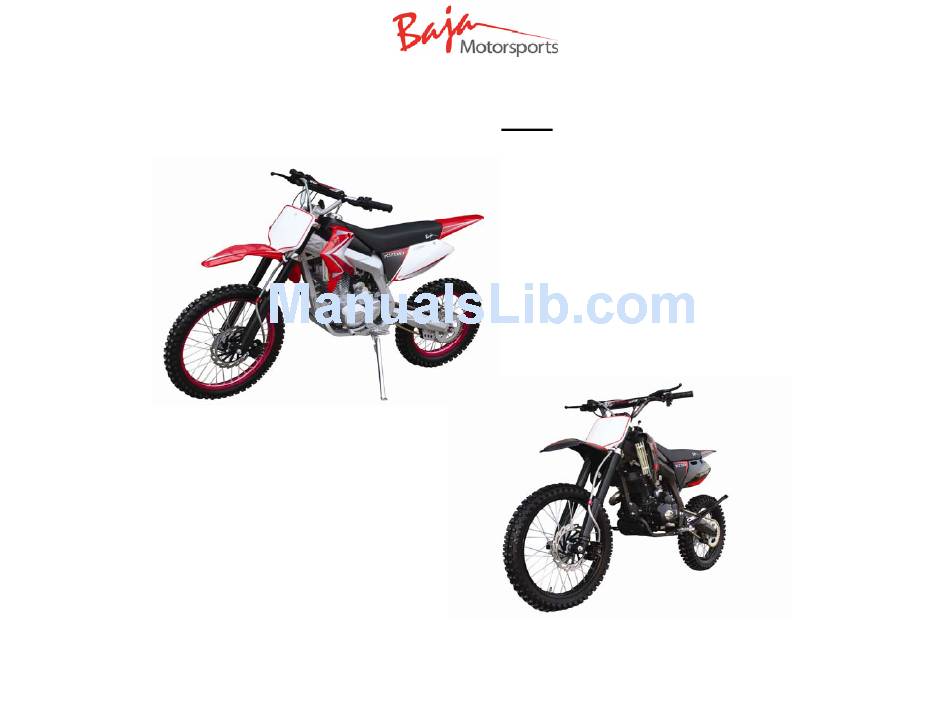

  • Page 1 11/14/2008 X250 Baja Motorsports Inc. P.O. Box 61150 Phoenix, AZ 85082 PARTS AND PRICES ARE SUBJECT TO CHANGE 1 of 48 Toll Free: 888-863-2252...
