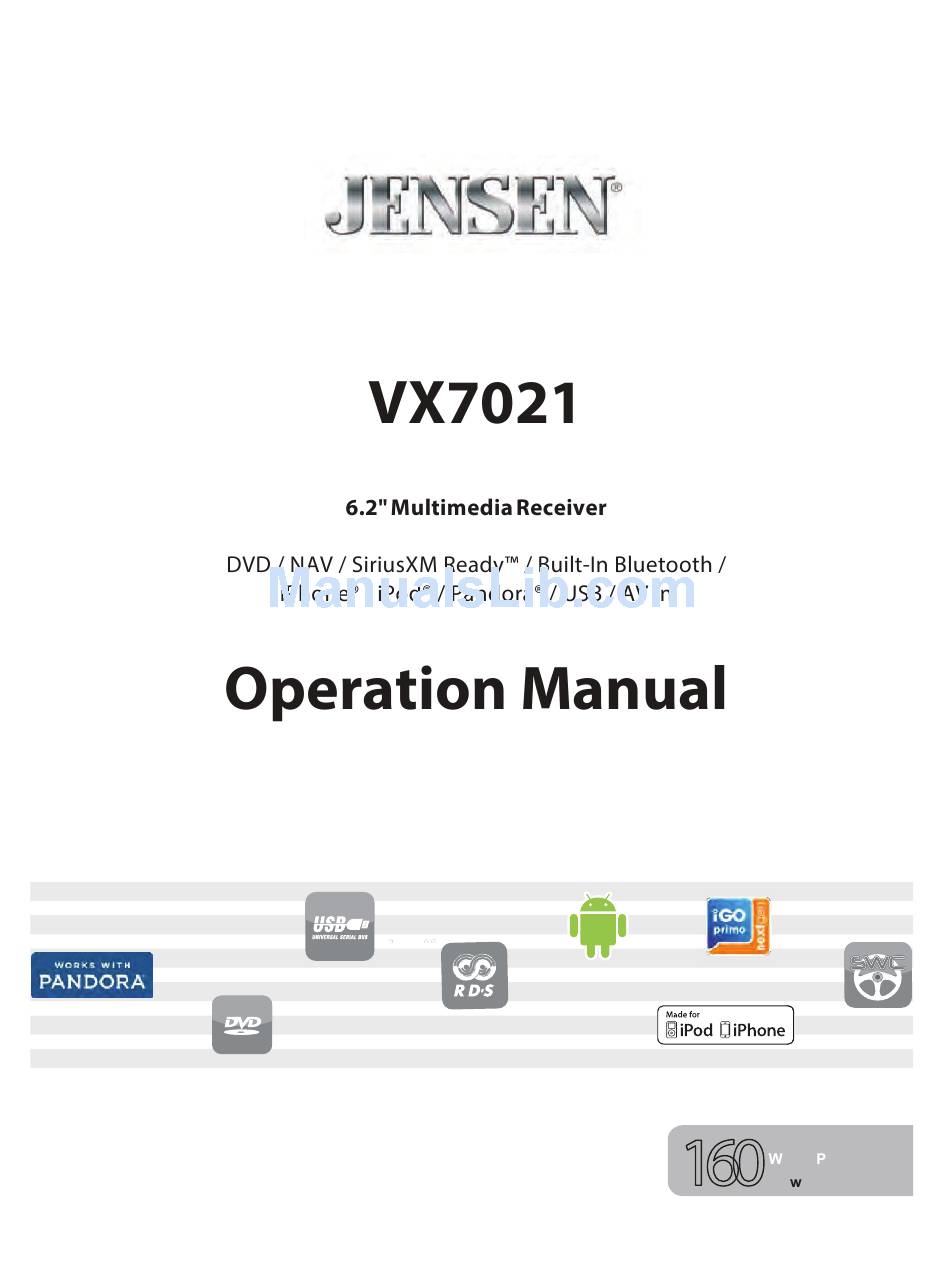

Jensen vx7021 Operation Manual
  1. Manuals
  2. Brands
  3. Jensen Manuals
  4. Car Stereo System
  5. VX7021
  6. Operation manual

Jensen vx7021 Operation Manual

6.2" multimedia receiver
Hide thumbs Also See for vx7021:

Advertisement

Quick Links

Download this manual See also: Operating Manual
160
atts eak
40
x 4

Advertisement

loading

Related Manuals for Jensen vx7021

Summary of Contents for Jensen vx7021

  • Page 1 atts eak...
  • Page 2 “Made for iPod” and “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developers to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety or regulatory standards.
  • Page 3 ..................................................................................................................................................................................................................................................................................................................................................................................
  • Page 4 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference This device must accept any interference received, including interference that may cause undesired operation. 2.
  • Page 5 Thank you for choosing a product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Multimedia Receiver for maximum enjoyment.
  • Page 6 Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor (Vehicle Tuner Subscription equired and old eparately) 2.0 DIN (Import / ISO-DIN Mountable) Fixed Front Panel 6.2” High Definition 800 x 480 Beep Tone Confirmation Built-In Bluetooth® providing Hands-Free operation for safety and convenience and A2DP for streaming music from your smartphone or other Bluetooth®...
  • Page 8 EJECT MENU MUTE Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a disc is inserted. Touch icons on this screen to access menus or control functions. Used to receive command signals from the remote control. 3.5mm AV IN This connector accepts a 3.5 mm through which signals from various audio/video devices can be...
  • Page 9 Covers the AV IN , microSD card and USB slot. Press this button to reset the system settings (except password and parental lock settings) and to correct a system halt or other illegal operation. Use the tip of a pen to press the eset button. Press to turn the unit ON.
  • Page 12 External devices, can be connected to this unit using its front 3.5mm (AV In 1) rear (AV In 2). You cannot directly control external devices connected to the AV I using the front panel controls or this unit’s remote control. AV In1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm .
  • Page 13 2. Touch the desired source icon on one of the two main menu screens. Screen 1 of 2: Disc, Radio, USB, AV IN1, Settings, Bluetooth (BT) or Camera. Touch Next at the bottom of the screen to access Screen 2 of 2: AV IN2, Pandora or SiriusXM (SXM).
  • Page 15 Reset...
  • Page 18 To access System Settings, touch the icon on the Main Menu screen. There are seven System Settings Sub-menus (General, Audio, Time, Language, Bluetooth, DVD or Volume) that are used to adjust the performance of each option of the . The Version is for information only.
  • Page 19 - Touch O O to turn the confirmation beep O or O . - Touch to select the wallpaper . Touch again to confirm and set the wallpaper. The ouch creen alibration adjustment is used to set the parameters of the touch screen to ensure that when the screen is touched, it corresponds to the feature desired.
  • Page 20 - Touch to access the Illumination . Touch a color to set the front panel display to the selected color. - Touch to select the user interface color. Touch again to confirm and set the color. - Touch O O to turn the emonstration ode O or O . The factory default setting is O .
  • Page 21 The Audio is used to turn the Subwoofer output ON or OFF and to select a Subwoofer crossover frequency. - Touch ON or OFF to turn the subwoofer output ON or OFF. - Touch a crossover frequency (80Hz, 120Hz or 160Hz) to set a cut-off frequency for the subwoofer’s low-pass filter (LPF).
  • Page 22 - Touch the Time icon and use the icons to set the hour, minute, and either AM or PM. After setting the time, touch Save. The time will appear to the right of the Date option. If a DVD supports more than one Subtitle or Audio language, all the languages are available for selection during playback.
  • Page 23 The Bluetooth audio capabilities can be used for wireless phones hands free applications. Before attempting to use the Bluetooth functions on this unit, please make sure the wireless phone to be connected supports Bluetooth functions. - Touch ON or OFF to turn the Bluetooth function ON or OFF. - Touch ON or OFF to turn the Bluetooth Auto-Connect function ON or OFF.
  • Page 24 The DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing restricted disc content. By default, the rating system is unlocked. Once set up, the parental lock is released only by entering the correct password. Once the password is entered, rating is available for setup. - This feature allows the user to create a unique 4-digit password to activate or deactivate the “Rating”...
  • Page 25 - This feature allows the user to “Reset” to restore the factory default settings. To reset the password, access the “RATING” menu and enter the current password. Once the correct password is entered, you can access the “Password” field and enter a new one.
  • Page 26 - Touch the AV IN1 icon to enter the setting of the connected device then use the icons to increase or decrease the relative volume level between -6 to +6. - Touch the AV IN2 icon to enter the setting of the connected device then use the icons to increase or decrease the relative volume level between -6 to +6.
  • Page 27 This system will play the following types of discs: DVD - DVDs that contain audio and/or video. Audio discs - Audio CDs that contain audio, video and image files. MP3 discs - A disc that contains audio, video and image files (for example, a CD-R with downloaded MP3 files).
  • Page 28 - The title/chapter information displayed is the current number of the track playing, the total number of tracks on the disc, the current chapter playing and the total number of chapters on the disc. - This indicator displays the time as entered by the user in the Settings Menu.
  • Page 29 - Touch this icon during playback to repeat the current chapter. The icon on the screen will light and small letter C will appear below the icon and the chapter will repeat. Touch this icon a second time to repeat the current title. The icon on the TFT LCD screen will light and small letter T will appear below the icon and the title track will repeat.
  • Page 30 When the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a title or a chapter. By touching icon, the user can select a chapter or title. The title or chapter can be selected by touching the corresponding number for a title or chapter.
  • Page 31 - If you are watching a disc recorded in multiple languages, touch the TFT LCD screen, then touch AUDIO to choose a language. Each time the icon is touched the language will change. - If you are watching a disc recorded in multiple languages with subtitles, touch the TFT LCD, then touch Language screen to choose the language that you would like the subtitles to appear.
  • Page 32 Single side single layer (DVD-5) (MPEG 2 Method) Single side double layer (DVD-9) 133 minutes Double side single layer (DVD-10) 242 minutes Double side double layer (DVD-18) 266 minutes 484 minutes Single side single layer (VCD) (MPEG 1 Method) 74 minutes Single side single layer 74 minutes Number of voice languages recorded.
  • Page 33 From the Main Menu Screen touch the DISC icon or insert a CD into the disc slot, label side up. Playback begins in CD mode when a disc is inserted correctly. The on-screen icons and touch key areas are outlined below. - Touch this icon to return to the Main Menu Screen.
  • Page 34 - Touch this icon to access the list of tracks contained on the disc. Touch a desired track icon twice and the track will begin playing. - Touch this icon to play tracks in the directory in a random order. The icon will light on the main CD screen.
  • Page 35 Touching the List icon will display the CD List Screen. The CD List Screen illustrates the contents of a CD disc. The contents are divided into folders and various file types. The file types are audio tracks, Audio Video Interleave (AVI) files, and image files such as JPEGS.
  • Page 36 When the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a track by touching the corresponding number. After entering the track numbers touch the OK icon. If a wrong digit is entered touching the arrow will remove the number.
  • Page 37 MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. Insert a MP3 Disc into the disc slot, label side up. Playback begins in MP3 mode when a disc is inserted correctly.
  • Page 38 - Upon inserting a MP3/WMA disc, disc play begins. You cannot insert a disc if there is already a disc in the unit or if the power is off. - Press the Eject ( ) button on the front of the unit to eject the disc. The unit automatically reverts to Tuner mode.
  • Page 40 ) - Touch the icons to display the next or previous page of the Disc menu. - Touch this icon to momentarily seek the previous available radio station. Touch and hold this icon to manually tune the radio in 200KHz (for FM) or 10kHZ (for AM) increments. Default mode is resumed after 10 seconds of inactivity.
  • Page 41 There are 27 categories in the PTY function. 1. None 8. Adult Hits 15. Jazz 22. Personality 2. News 9. Soft Rock 16. Classic 23. Public 3. Info 10. Top 40 17. RGB 24. College 4. Sports 11. Country 18. Soft RGB 25.
  • Page 42 When the Direct Entry icon is touched the Direct Entry Screen appears. The user can enter the desired radio station frequency using the on-screen number pad. After entering the radio station frequency touch the OK icon. If a wrong digit is entered touching the green arrow will remove the number.
  • Page 43 3. Touch the preset number in which you would like to store the current station. The station frequency is displayed at the top of the menu. The preset number will appear highlighted. The station frequency will be stored in the highlighted preset.
  • Page 44 USB Cable (not included) Right Audio Left Audio Ground V ideo 3.5mm A/V Cable (not included)
  • Page 45 From the main menu screen touch the USB icon. The on-screen icons and touch key areas are outlined below. - Touch this icon to return to the Main Menu Screen. - Displays current track information. - Lists the current audio track playing and the total number of audio tracks in audio mode.
  • Page 46 - Touch this icon to access the list of audio and video files contained on the USB device. Touch a folder icon and the contents of the folder will be displayed. Touch a desired track icon twice and the track will begin playing. - Touch this icon to play audio or video tracks in a random order.
  • Page 47 Touching the List icon will display the USB List Screen. The USB List Screen illustrates the audio and video files present in the USB device. The contents are divided into folders and various file types. The file types consist of audio and video files.
  • Page 48 When the Direct Entry icon is touched the Direct Entry Screen appears. The user can manually select a track by touching the corresponding number. After entering the track numbers touch the OK icon. If a wrong digit is entered touching the arrow will remove the number.
  • Page 52 AV In1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm jack located on the font panel. The unit can increase or decrease the volume of the connected device. All other controls are done on the connected device.
  • Page 53 Bluetooth® was launched by a special interest group (SIG) comprised of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2,000 companies worldwide. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by the Electronics Corporation is under license.
  • Page 54 The on-screen icons and information for Bluetooth® functions are outlined below. - Touch this icon to return to the Main Menu Screen. - Displays the current source. - Indicates the device that is paired with the unit. ) - Indicates whether the unit is connected with a Bluetooth®device. Touch to connect to a Bluetooth®...
  • Page 55 Touch the “Pair” icon on the unit’ s Bluetooth® user interface screen. A prompt to pair or bond should appear on your mobile phone. Accept the request and initiate the process. A prompt to enter a PIN number or passkey for the unit should appear. The default passkey for the unit is “0000”.
  • Page 56 Press the front panel MENU button and then touch the BLUETOOTH icon to access the Bluetooth® main menu. The following screen will appear: 2. Use the 0-9, */+, and # icons to input the phone number. If necessary touch the green arrow icon to clear the last digit or the entire number and start over.
  • Page 57 To mute the phone call audio from the unit when a call is received, press the front panel rotary knob. Press the front panel rotary knob again and phone call audio will be restored. The call log consists of dialed numbers, received calls and missed calls. - The Missed Calls List retrieves the list of missed numbers from your wireless phone if your wireless phone allows the function.
  • Page 58 While talking, to transfer audio from the unit back to the mobile phone, touch the icon. You can only transfer a call after it has been answered. Touching the icon will return the audio from the mobile phone to the unit. Touch the icon and the following screen will appear: Bluetooth®...
  • Page 59 While listening to audio the following functions are available: Pause/Play ( ) icon: Touch to pause playback. Touch again to resume playback. 2. Previous ( ) icon: Touch to play the previous track. 3. Next ( ) icon: Touch to play the next track. Functionality varies depending on the profile used: A2DP: Stream audio from your Bluetooth®...
  • Page 60 This unit is “ amera eady. ” Before accessing any camera features, you must install a rear video camera. When the camera is not installed and the function is accessed by the gear selector being placed in reverse or by the unit’s menu, the message “No Signal” will be displayed and the following screen will appear.
  • Page 62 Pandora Radio is available via your iPhone® (data usage will occur) or Android™ device (via Bluetooth®). Note: The Pandora app must be installed on your iPhone®/iPod® touch or Android device. Note: To play Pandora Radio on this radio using an Android device, it is necessary to first establish a connection using Bluetooth®...
  • Page 63 - Touch the icon to pause playback. Touch the icon to begin playback. - Press this icon skip a song, subject to the skip limit. - Press thumbs up to tell Pandora you like the track currently playing, and Pandora will play more tracks like it. Press thumbs down to tell Pandora not to play this track.
  • Page 64 The Station List Screen allows you to search for music by stations you created. Touch a station on the list to choose that station. Touch the Scroll Down ( ) icon to view the next page in the list or the Scroll Up ( ) icon to view the previous page.
  • Page 65 3. If both an Android device and iPhone®/ iPod® are connected to the radio, the Select Android or iOS Screen appears. 4. To stop Pandora, exit the Pandora app on the iPhone®, iPod® or Android device. BookMark Track Error Software Error The track could not be bookmarked, please try again in a moment.
  • Page 66 Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required.
  • Page 67 The on-screen indicators and touch key areas for SiriusXM® functions are outlined below. Menu Page 1 - Touch to return to the unit’s Main Menu Screen. - Displays SiriusXM® radio band currently selected. Three bands are available: SXM1, SXM2, and SXM3. - This indicator displays the time as entered by the user in the Settings Menu.
  • Page 68 - Touch to tune to the previous channel. - Touch to toggle the icon displayed between Category and Channel. When Channel is displayed, touching tunes channels up or down. When Category is displayed, touching tunes channels within a category up or down. - Touch to tune to the next channel.
  • Page 69 Touch the top left corner of the screen (the box) to view the Main Menu screen. From the Main menu screen, touch the icon. Press the button on the front panel to switch to the SXM source. Touch the icon on the SXM Menu screen to change between the following bands: SXM1, SXM2, and SXM3.
  • Page 70 A preset is a channel name that is stored for instant access to that channel. Ten numbered preset buttons store and recall channels for each band. Select a band (if needed), then select a channel. 2. On the SiriusXM® menu page 2, touch the icon to access the Preset Channel Screen.
  • Page 71 To search by channel: On the SirusXM® menu page 1, touch the icon (if needed) to select 2. Touch to display the Channel Search Screen: 3. Touch a channel to tune to that channel. Touch the or icon to scroll up or down the list.
  • Page 72 SiriusXM® attaches a label to channels with mature content. The radio recognizes these channels as “Mature”. The Mature Channel Lock option allows you to lock out channels with “Mature” labels. These channels will still appear in the channel listing (with a lock icon), but will not be tunable unless the parental lockout password is correctly entered.
  • Page 73 When the global “Mature Lock” is enabled, a mature channel can be temporarily unlocked. All mature channels are temporarily unlocked (but still hidden when channel browsing) until the SXM source is changed, Accy (Key) is cycled or the “Power Button” on front panel of radio turns the Radio off. This mode is useful for listening to mature/adult content on a temporary basis, allowing you to listen on a locked channel without having to disable the global “Mature Lock.
  • Page 74 To unlock all mature channels: On the SirusXM® menu page 2, touch the icon. The following screen appears: 3. Enter your 4-digit password and then press the icon. The following screen appears: 4. Touch the icon. All channels are now unlocked.
  • Page 75 An user can lock individual channels. When locked, a channel has the lock ( icon next to it on the channel list. To lock an individual channel: On the SirusXM® menu page 2, touch the Lock icon. The following screen appears: 2.
  • Page 76 To unlock an individual channel: On the SirusXM® menu page 2, touch the Lock icon. The Enter Password Screen appears appears. 2. Enter your 4-digit password. The following screen appears: 3. Touch a lock ( ) icon to unlock a channel. The icon is replaced by an unlocked ( ) icon.
  • Page 77 SiriusXM® user advisory messages are listed below: Check SXM Tuner Check the SiriusXM® tuner connection on the back of the unit to ensure that it’s correctly connected. Check SXM Antenna Ensure the SiriusXM® antenna cable is connected to the SiriusXM® tuner correctly. Check the SiriusXM®...
  • Page 79 ine is off...
  • Page 80 No image Incorrect connection to parking Check wiring and brake wire correct Parking brake is not engage Stop vehicle in safe place and apply parking brake Flashing image DVD is not compatible with Change setup to or interference current TV system settings accommodate disc appears on screen Improper video signal...
  • Page 81 Disc does not play Disc is warped or scratched Use disc in good back condition Clean disc with soft Disc is dirty or wet cloth Laser pickup is dirty Clean laser pickup with cleaning disc Incompatible disc is used Use compatible disc Disc rating exceeds Parental Change Parental Lock Lock rating limit...
  • Page 82 Loading Disc is being read No Disc Disc is dirty Clean disc with soft cloth Disc is upside down Insert disc with label side Disc not present in Insert disc loading compartment Bad Disc Disc is dirty Clean disc with soft cloth Disc is upside down Insert disc with label side Unknown disc...
  • Page 83 Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alcohol) may result in scratching or discoloration. 2. Do not get water or cleaning fluids on the unit. 3.

  • Page 87: Tools And Supplies

    What’s in the Box Tools and Supplies The following items are supplied The following tools and supplies with the VX702 : are needed to install the • VX702 Head Unit • Torx type, fl at-head and Philips • Trim screwdrivers •...

  • Page 88: Disconnect The Battery

    Disconnect the Battery • • When replacing the vehicles adio fuse always use the proper rated replacement fuse. Using a fuse with an improper rating could damage the unit and cause a fi re. ISO-DIN Installation is designed to fi t into a 2.0 DIN dashboard opening. The unit has threaded holes in the chassis side panels which may be used with the original factory mounting brackets of some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard.
  • Page 90 Dual Electronics Corporation Heathrow, FL 32746 Technical Assistance: 8 www.jensenmobile.com © 201...
