VM9026

What's in the Box

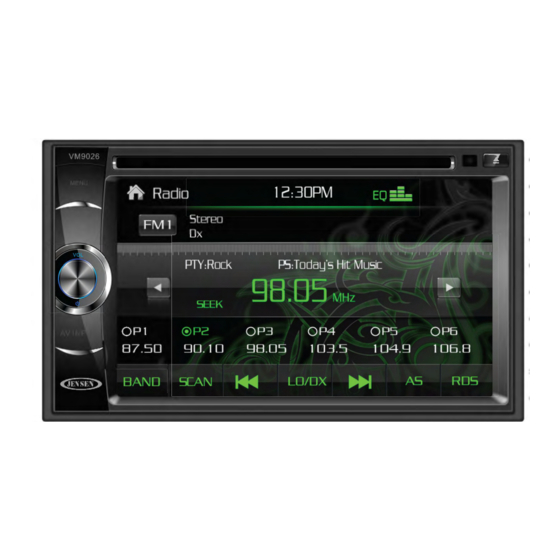

VM9026 Head Unit

Trim Ring

Power Input Harness

Speaker Harness

Accessory Harness

Operation Manual

Installation Guide

WARNING! Never install this unit where operation and viewing could interfere with

safe driving conditions.

You will need these tools and supplies

to install your VM9026:

• Torx type, flat-head and Philips

screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screw

driver, socket wrench set or other

tools)

• Electrical tape

• Crimping tool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16 – 18 gauge speaker wire

Table of Contents

Need help?

Do you have a question about the VM9026 and is the answer not in the manual?

Page 1 VM9026 What’s in the Box Tools and Supplies VM9026 Head Unit You will need these tools and supplies Trim Ring to install your VM9026: Power Input Harness • Torx type, flat-head and Philips Speaker Harness screwdrivers Accessory Harness • Wire cutters and strippers Operation Manual •...
Page 2: Optional Equipment
NOTE: If the VM9026 is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during installation to avoid causing a short circuit.
Page 3: Wiring Diagram
Wiring Diagram CAUTION! IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815. TV-ANT M5XL5 MAX...
Page 4 128-9196...
