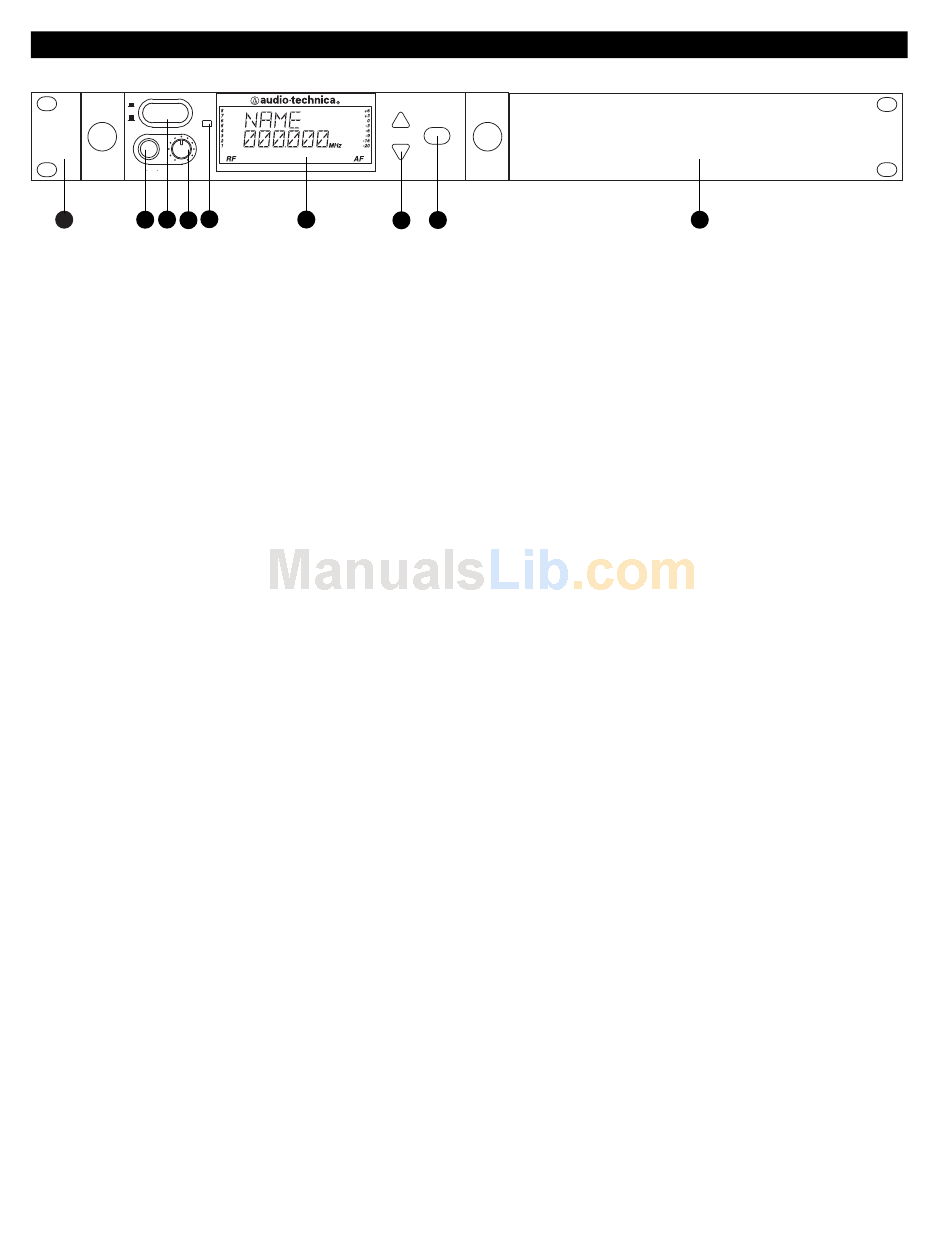

Figure E AEW-R4100 Receiver Front Panel
ON
POWER
OFF
PHONES
MIN–
LEVEL
34 35
39
33
32
Front Panel Controls and Functions (Fig. E)
32 POWER SWITCH: Press Power switch in and the receiver
readouts will light.
33 HEADPHONE OUTPUT:
jack. Plug in either a mono or "stereo" headphone to
monitor receiver signal.
34 HEADPHONE LEVEL CONTROL: Adjusts the level of the
headphone jack only; it does not affect receiver audio
output.
35 ALERT INDICATOR: The Alert Indicator lights:
(a) When the receiver is in the Mute mode,
(b) When no RF signal is received from the transmitter,
(c) When only one or two RF signal-strength bars are on,
(d) When the transmitter is in the Mute mode,
(e) When audio modulation level from the transmitter is
close to the clipping point (AF +6 bar), or
(f) When the "LOW BAT" warning appears in the LCD
(transmitter battery is weak).
12
Receiver Controls and Functions
ALERT
RX NAME
UHF SYNTHESIZED DIVERSITY RECEIVER AEW-R4100
–MAX
36
1
/
" (6.3 mm) TRS ("stereo") phone
4
MODE/SET
37
38
36 LCD WINDOW: Liquid Crystal Display indicates control
settings and operational readings. See Figure G on page 13
for details.
37 UP/DOWN BUTTONS: Press Up or Down arrow buttons, in
conjunction with the Mode/Set button, to step through
menus, select operating frequency and edit receiver function
choices.
38 MODE/SET BUTTON: Use in conjunction with the Up/Down
arrow buttons to step through menus, choose operating
frequency and select receiver function options.
39 MOUNTING ADAPTERS: For mounting the receiver in any
standard 19" rack. Attach to the receiver with the screws
supplied. (Use an optional AT8628a joining-plate kit to mount
two AEW-R4100 receivers side by side.)
(Continued)
