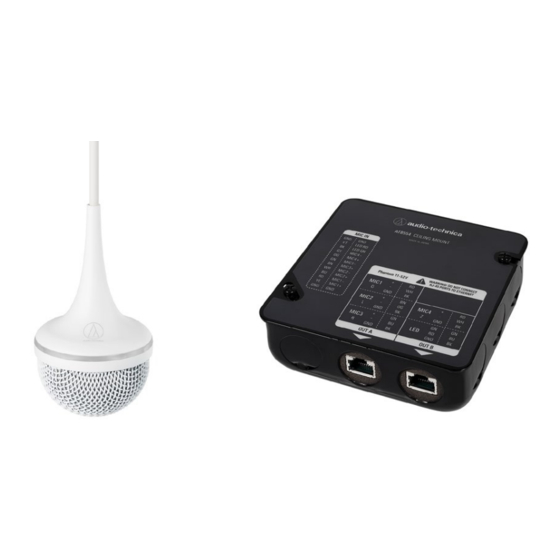

Audio Technica ES954 User Manual

Hanging microphone array
Hide thumbs Also See for ES954:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Features
• Ideal, cost-effective solution for huddle rooms, conference rooms and
other meeting spaces
• Quad-capsule steerable microphone array designed for use with the
ATDM-0604 Digital SmartMixer™ and other compatible mixers
• When controlled by a compatible mixer, provides 360° coverage from
a potentially limitless number (bound by mixer channel count) of virtual
hypercardioid or cardioid pickups that can be steered in 30° increments to
clearly capture every person speaking in a room by using original synthet-
ic technology (PAT.).
• Mixer-controlled tilt function provides a vertical steering option to accom-
modate ceilings of different heights
• Includes Plenum-rated AT8554 Ceiling Mount with RJ45 connectors and
push-type wire terminals for simple, secure installation with seismic cable
to secure to a drop ceiling grid
• Integral, logic-controlled red/green LED ring provides clear indication of
mute status
• High-output design with low self-noise delivers strong, natural-sounding
vocal reproduction
• Low-reflective white finish matches ceiling tiles in most environments
• Includes two 46 cm (18") breakout cables: RJ45 (female) to three 3-pin
Euroblock connector (female), RJ45 (female) to 3-pin Euroblock connector
(female) and unterminated LED conductors
• Permanently attached 1.2 m (4') cable with locking grommet enables
quick microphone height adjustment
• UniGuard™ RFI-shielding technology offers outstanding rejection of radio
frequency interference (RFI)
• Requires 11 V to 52 V DC phantom power
Trademarks
• SmartMixer™ are trademark of Audio-Technica Corporation, registered in the U.S.
and other countries.
• UniGuard™ are trademark of Audio-Technica Corporation, registered in the U.S.
and other countries.
Introduction
Thank you for purchasing this product. Before using the product, read through the
user manual to ensure that you will use the product correctly.
Safety precautions
Although this product was designed to be used safely, failing to use it correctly may
result in an accident. To ensure safety, observe all warnings and cautions while
using the product.
Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot,
humid or dusty place.
• Do not install the product close to air conditioner or lighting apparatus to prevent
malfunction.
• Do not pull on the product with excessive force nor hang on it after it is installed.
1
ES954
User Manual
Hanging Microphone Array

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES954 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Technica ES954

Summary of Contents for Audio Technica ES954

  • Page 1 (RFI) • Requires 11 V to 52 V DC phantom power Trademarks • SmartMixer™ are trademark of Audio-Technica Corporation, registered in the U.S. and other countries. • UniGuard™ are trademark of Audio-Technica Corporation, registered in the U.S. and other countries.

  • Page 2: Wiring Chart

    Connection Ceiling mount (AT8554) Wiring Chart RJ45 connector RJ45 breakout cable Function pin number wire color MIC2 L(+) BROWN MIC2 L(-) ORANGE MIC3 R(+) GREEN MIC1 O(-) WHITE OUT A MIC1 O(+) MIC3 R(-) BLUE STP cable STP cable (MIC1-MIC3) (MIC4 / LED Control) BLACK BLACK...

  • Page 3: Led Control

    LED control • To control the LED indicator ring, connect the LED Control terminals of the RJ45 breakout cable to the GPIO port of the automatic mixer or other logic device. • When using the product with a mixer with no GPIO terminal, the LED ring can be kept permanently lit by connecting the black (BK) or violet (VT) wire to the GND terminal. When the black wire is shorted, the LED ring will be green.
  • Page 4 Parts, name and installation Seismic cable Release bar Make sure to attach the included seismic cable to the ceiling to prevent the ceiling mount from falling. Cable Retaining nut Ceiling mount (AT8554) Tie-wrap Latch RJ45 connector Isolator (receiver) Using a tie wrap, fix the remaining cable to the inside of the ceiling mount to prevent the microphone from falling.

  • Page 5: Installation

    Notices • When installing the product, a hole must be cut into the ceiling tile so the ceiling mount can be fixed in place. Remove the ceiling tile first if possible. • To mount the threaded bushing in a ceiling tile without the isolators: 20.5 mm (0.81") diameter hole is required and the ceiling tile can be up to 22 mm (0.87") thick.
  • Page 6 Mute Mute • The Audio-Technica logo is located on the front of the microphone. The microphone must be oriented correctly to operate properly. 6. Using the “Tilt” function, you can adjust the directivity on the vertical plane to adjust the angle depend- ing on whether the talker is sitting or standing.
  • Page 7 Using with other compatible mixer When connecting and using the product with a mixer other than the ATDM-0604, directivity can be controlled by adjusting the output of each channel according to the follow- ing mixing matrix. Mixing matrix Normal Wide Directivity Directivity direction...

  • Page 8: Specifications

    210° LEGEND 180° 0°, 50 cm LEGEND 1kHz 106.0 SCALE IS 5 DECIBELS PER DIVISION 36.6 102.0 (Unit: mm) Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan ©2018 Audio-Technica Corporation Global Support Contact: www.at-globalsupport.com Made in Japan 142419270-01-01 ver.1 2018.11.15...
