Features
• Ideal, cost-effective solution for huddle rooms, conference rooms and
other meeting spaces.

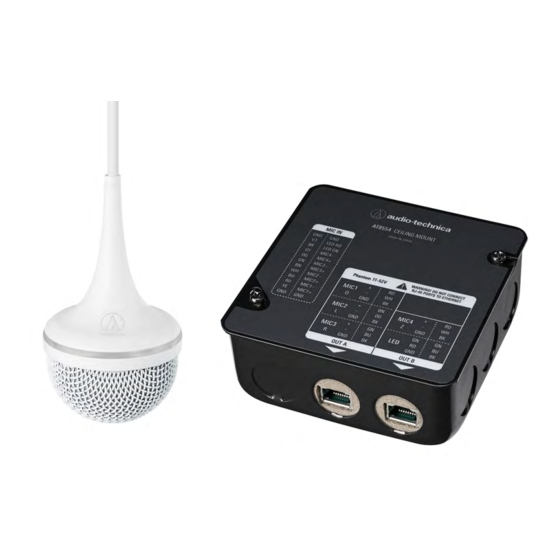

• Quad-capsule steerable microphone array designed for use with the
ATDM series DIGITAL SMARTMIXER™ and other compatible mixers.
• When controlled by a compatible mixer, provides 360° coverage from
a potentially limitless number (bound by mixer channel count) of virtual
hypercardioid or cardioid pickups that can be steered in 30° increments
to clearly capture every person speaking in a room by using original
synthetic technology (PAT.).
• Mixer-controlled tilt function provides a vertical steering option to
accommodate ceilings of different heights.
• Includes UL 2043 plenum-rated AT8554 Ceiling Mount with RJ45
connectors and push-type wire terminals for simple, secure installation
with seismic cable to secure to a drop ceiling grid.
• Integral, logic-controlled red/green LED ring provides clear indication of
mute status.
• High-output design with low self-noise delivers strong, natural-sounding
vocal reproduction.
• Low-reflective white finish matches ceiling tiles in most environments
• Includes two 46 cm (18") breakout cables: RJ45 (female) to three 3-pin
Euroblock connector (female), RJ45 (female) to 3-pin Euroblock connector
(female) and unterminated LED conductors.
• The 3.0 m (9.8') microphone cable is secured at the celing tile with a
locking grommet for quick microphone height adjustment.
• Audio-Technica's proprietary RFI-shielding technology thoroughly
eliminates radio frequency interference (RFI).
• Requires 11 V to 52 V DC phantom power.
Trademarks
TM
• SMARTMIXER is a trademark or registered trademark of Audio-Technica
Corporation.
Introduction
Thank you for purchasing this product. Before using the product, read through the
user manual to ensure that you will use the product correctly.
Safety precautions
Although this product was designed to be used safely, failing to use it correctly may
result in an accident. To ensure safety, observe all warnings and cautions while
using the product.
Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot,
humid or dusty place.
• Do not install the product close to air conditioner or lighting apparatus to prevent
malfunction.
• Do not pull on the product with excessive force nor hang on it after it is installed.
1
ES954
User Manual
Hanging Microphone Array
