Summary of Contents for Audio Technica FREEWAY ATW-701

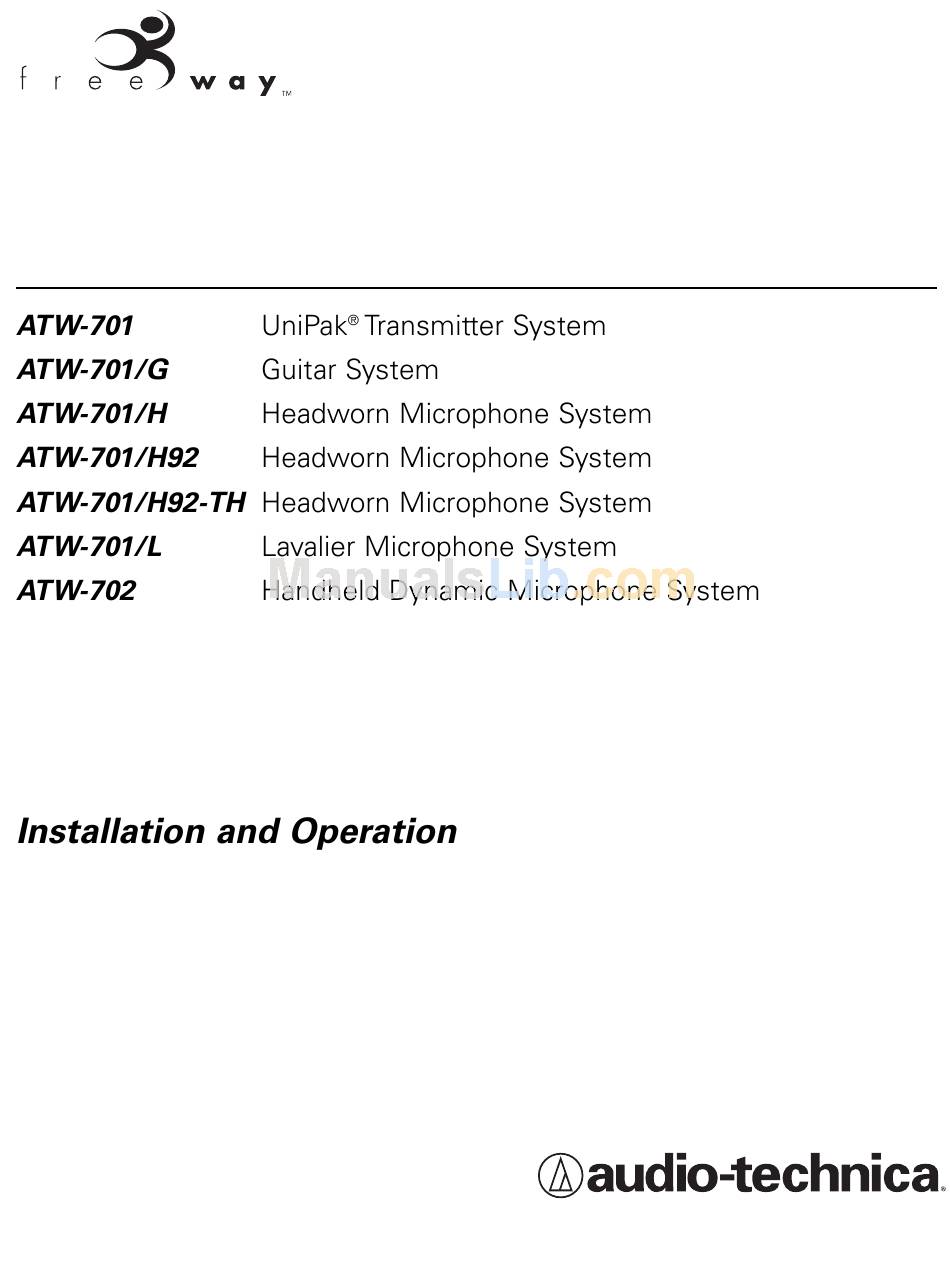

- Page 1 700 Series Professional UHF Wireless Systems...
- Page 2 Professional UHF Wireless Systems any medical-device disruption will cease when the RF transmitting source is turned off...
- Page 4 UniPak ® Transmitter Battery Installation RF Power Select Switch Transmitter Door Transmitter Channel Door Catch Selector Switch Handheld Transmitter Battery Installation Transmitter Door (Open Positon) Screwdriver Battery Compartment Battery Screwdriver Compartment...
- Page 5 Power/Mute/ Power/Mute/ Battery Indicator Battery Indicator Input Connector Antenna Power Switch Power Switch ATW-T702 Handheld Transmitter To change channel manually To change channel automatically unmuted muted...
- Page 6 ATW-T702 Handheld Transmitter Trim Control (Volume) Channel Selector Switch Screwdriver ATW-T701 UniPak ® Transmitter Instrument Trim RF Power Control (Volume) Select Switch Microphone Trim Control (Volume) Transmitter Door Catch...
Need help?
Do you have a question about the FREEWAY ATW-701 and is the answer not in the manual?
Questions and answers
how do i pair the mic to the transmitter
To pair the Audio Technica FREEWAY ATW-701 microphone to the transmitter, follow these steps:
1. Power on the Receiver: Ensure the receiver is turned on and set to a specific channel.
2. Select the Same Channel on the Transmitter: Use the transmitter’s channel selector switch to match the frequency of the receiver.
3. Install Batteries in the Transmitter: Insert two fresh 1.5V AA alkaline batteries, ensuring correct polarity.
4. Power on the Transmitter: Press and hold the power button until the battery indicator LED turns green.
5. Adjust Audio Levels: Set the receiver's AF Level control to maximum and adjust the transmitter's microphone or instrument trim control as needed.
6. Test the Connection: Speak into the microphone or play an instrument, and check the AF peak indicator on the receiver. Adjust input levels if distortion occurs.
The transmitter and receiver must be set to the same frequency for successful pairing.
This answer is automatically generated
