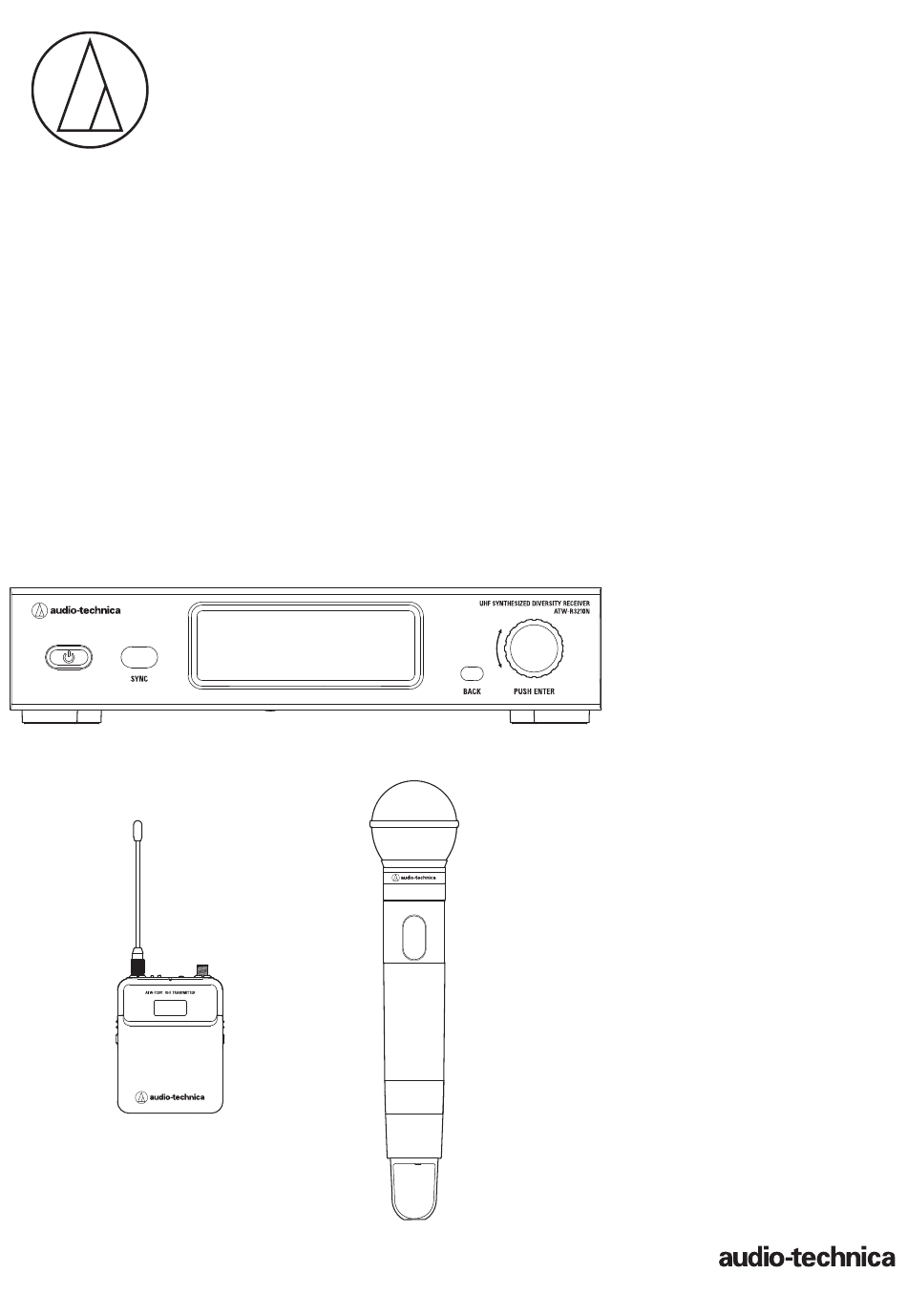

3000 Series
User Manual
UHF Wireless Systems
ATW-R3210N
Receiver
ATW-T3201
Body-Pack Transmitter
ATW-T3202
Handheld Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATW-R3210N and is the answer not in the manual?

Questions and answers

Summary of Contents for Audio Technica ATW-R3210N

  • Page 1 3000 Series User Manual UHF Wireless Systems ATW-R3210N Receiver ATW-T3201 Body-Pack Transmitter ATW-T3202 Handheld Transmitter...
  • Page 2: Table Of Contents

    Achieving stable reception ............28 Notes on use ................3 Rack-mounting the receiver............28 Maintenance ................3 Troubleshooting .................29 Part names and functions ............4 ATW-R3210N ....................29 ATW-R3210N ....................4 ATW-T3201/ATW-T3202 ................. 29 ATW-T3201 ...................... 6 Dimensions ................30 ATW-T3202 ...................... 7 ATW-R3210N ....................30 How to insert batteries ..............8...
  • Page 3: Introduction

    Introduction Thank you for purchasing this Audio-Technica product. Before using the product, read through this user manual to ensure that you will use the product correctly. Please keep this manual for future reference. Important information Warning: For customers in the USA •...
  • Page 4: Notes On Use

    Notes on use • Be sure to read the user manual for any microphone or cable that you attach to the product. • Disconnect the AC adapter from the outlet when this product is not in use. • Turn off the power of this product before connecting or disconnecting cables. •...
  • Page 5: Part Names And Functions

    Part names and functions ATW-R3210N Front panel ❶ ❷ ❸ ❹ ❺ ❶ Power button ( Use to turn the receiver on or off. ❷ IR sync window Use to IR SYNC with the transmitter (ATW-T3201, ATW-T3202). ❸ Display Displays the receiver state and setting menus.
  • Page 6 Part names and functions Rear panel ❻ ❶ ❷ ❸ ❹ ❺ ❶ Antenna input jack Each jack supplies DC12 V to a connected antenna. Additionally other compatible accessories (sold separately) can be connected. ❷ Ground lift switch This switch isolates the GND pin of the balanced/unbalanced output from the ground. Normally this is kept in the GND position, but if a hum develops due to a ground loop, switch to the LIFT side.
  • Page 7: Atw-T3201

    ⓮ ❼ ⓫ ⓬ ⓯ ⓭ ❶ ❼ Transmission antenna SYNC button Use to IR SYNC with the receiver (ATW-R3210N). ❷ ❽ MUTE switch UP button Switches audio mute on and off. Use to select various settings. ❸ ❾ Indicator BACK button LED that shows the status of the transmitter.
  • Page 8: Atw-T3202

    ⓮ ❶ ❾ Interchangeable microphone capsule SYNC button ❷ Use to IR SYNC with the receiver (ATW-R3210N). Display ❿ Power switch Shows the current status. If no buttons are pressed for a period of 30 seconds, the display Use to turn the power on or off.
  • Page 9: How To Insert Batteries

    How to insert batteries ATW-T3201 ATW-T3202 Slide the battery cover latches down. Rotate the grip case of the battery compartment. Open the battery cover. • Put your finger on the hook of the battery cover and pull it to open the battery cover.
  • Page 10: How To Attach And Detach The Interchangeable Microphone Capsule (Only For Atw-T3202)

    How to attach and detach the interchangeable microphone capsule (only for ATW-T3202) How to attach Attach the microphone capsule to the body of the transmitter. Rotate the microphone capsule clockwise to tighten it. How to remove Rotate the microphone capsule counterclockwise to loosen it. Detach the microphone capsule from the body of the transmitter.
  • Page 11: How To Read The Display

    How to read the display ATW-R3210N Main screen ❶ ❷ ❸ ❹ ❺ ❻ VOCAL1 000.000 G :00 C : 00 ❼ ❽ ❾ ❿ ⓫ ⓬ ❶ ❼ Transmitter information display area Group indicator Information on the connected transmitter is displayed. Refer to ❽...
  • Page 12 How to read the display Level meter screen ❶ ❷ -74 dBm TX - RF PWR -40 -30 -24 -18 -15 -12 -10 -8 -6 -4 -2 0 +2 +4 +6 dBu ❸ ❹ ❺ ❻ ❶ ❹ RF power indicator (transmitter) Audio output indicator (receiver) ❷...
  • Page 13: Atw-T3201/Atw-T3202

    How to read the display ATW-T3201/ATW-T3202 The main screen is displayed when the power is switched on. If you press the UP/Down button on the main screen, the screen display is switched. ❶ ❻ ❼ ❽ 000.000 VOCAL1 00 Ch ❷...
  • Page 14: Network

    Network By connecting a receiver to a Windows PC/Mac, you can monitor and control the status of the receivers and the transmitters using a dedicated application, Wireless Manager. What is Wireless Manager? Wireless Manager is software that supports the setup, control, and monitoring of compatible Audio-Technica wireless devices. It allows the user to configure settings in the Device List tab, RF planning in the Frequency Coordination tab and keep track of critical system levels and alerts in the monitor tab.
  • Page 15: How To Operate

    How to operate Basic operation Using IR SYNC Turn on the power button of the receiver (ATW-R3210N). This function allows you to make settings on the receiver that are specified for the transmitter. • The display lights and the main screen is displayed.
  • Page 16: Settings

    Various settings can be made from the menu screen shown on the ATW-T3201/ATW-T3202 display. Press the SET button. • The menu screen appears. ATW-R3210N ATW-T3201 ATW-T3202 Press the control dial. • The main menu screen appears. Turn the control dial to select the item you wish to set.
  • Page 17: Setting Atw-R3210N

    Setting ATW-R3210N List of setting items Setting by group/channel From the menu screen, turn the control dial, select FREQUENCY MANUAL Set the operating frequency. [FREQUENCY] and then press the control dial. Gr/Ch NAME Set the channel name. Select [Gr/Ch] and press the control dial.
  • Page 18: Setting The Audio Output Level

    Setting ATW-R3210N Setting the audio output level Setting transmitters via IR SYNC From the menu screen, turn the control dial, select [AUDIO] and This function allows you to make transmitter settings on the receiver then press the control dial. and then automatically configure the transmitter via IR SYNC. The following are the available settings and setting values: Turn the control dial to set the audio output level.
  • Page 19: Setting The Squelch Level

    Setting ATW-R3210N Setting the squelch level Setting the system-related functions Setting automatically Setting the lock Set this function to prevent the receiver settings from being changed. From the menu screen, turn the control dial, select [SQUELCH] • The default setting is [Unlock].
  • Page 20 Setting ATW-R3210N Setting group/channel editing Setting the backup frequency mode Setting group/channel If you set the backup frequency in advance, you can switch the frequency of the transmitter and receiver with the transmitter. It is Aside from the ten preset groups, there are two additional user-defined convenient to set this function when you want to switch the frequency scan groups: U1 and U2.
  • Page 21 Setting ATW-R3210N Setting the AF level meter on the main screen Resetting Switch the AF level meter on the main screen between [Rx] (Receiver) This returns the receiver settings to their factory defaults. and [Tx] (Transmitter). • The default setting is [Rx].
  • Page 22: Setting Network

    Setting ATW-R3210N Setting network Setting the log message Set whether to send the log message to the Syslog server. By connecting a receiver to a Windows PC/Mac, you can monitor and control the status of the receivers and the transmitters using a From the menu screen, turn the control dial, select [NETWORK] dedicated application, Wireless Manager.
  • Page 23 Setting ATW-R3210N Setting MAC address From the menu screen, turn the control dial, select [NETWORK] and then press the control dial. Turn the control dial, select [MAC ADDRESS].
  • Page 24: Setting Atw-T3201/Atw-T3202

    Setting ATW-T3201/ATW-T3202 List of setting items Setting by group/channel FREQUENCY MANUAL Set the transmission frequency. From the menu screen, press the UP/DOWN button to select Gr/Ch [FREQUENCY], and then press the SET button. NAME Set the channel name. FREQUENCY GAIN Set the gain.
  • Page 25: Adjusting The Gain

    Setting ATW-T3201/ATW-T3202 Adjusting the gain Setting lock From the menu screen, press the UP/DOWN button to select From the menu screen, press the UP/DOWN button to select [GAIN], and then press the SET button. [LOCK], and then press the SET button. GAIN LOCK Unlock...
  • Page 26: Setting The Mute Mode (Only For Atw-T3201)

    Setting ATW-T3201/ATW-T3202 Setting the mute mode (only for ATW-T3201) Setting the indicator The indicator LED can be turned [On] or [Off]. Set the function of the MUTE switch. • The default setting is [On]. From the menu screen, press the UP/DOWN button to select From the menu screen, press the UP/DOWN button to select [MUTE MODE], and then press the SET button.
  • Page 27 Setting ATW-T3201/ATW-T3202 Resetting This returns the transmitter settings to their factory defaults. From the menu screen, press the UP/DOWN button to select [UTILITIES], and then press the SET button. UTILITIES Press the UP/DOWN button to select [RESET] and press the SET button.
  • Page 28: How To Attach The Transmitter (Atw-T3201)

    How to attach the transmitter (ATW-T3201) The ATW-T3201 transmitter is equipped with a clip that can be used to attach the transmitter to a belt, etc. You can reverse the direction of the input connector by Pull both sides of the clip firmly to the outside to remove attaching the clip in the opposite direction.
  • Page 29: Achieving Stable Reception

    Achieving stable reception Low RF signal may result if there are obstructions between receiver antennas and transmitter(s). In such a case, reposition the antennas to get better reception. Use external antennas (sold separately) if the installation space is limited. Rack-mounting the receiver •...
  • Page 30: Troubleshooting

    Troubleshooting ATW-R3210N Symptoms Causes and countermeasures Reference page The power can't be turned on. Confirm that the AC adapter is correctly connected. There is no voice output. The voice output level is low. Confirm that the transmitter/receiver channels are correct (p.
  • Page 31: Dimensions

    Dimensions ATW-R3210N 210.0 (Unit: mm)
  • Page 32: Atw-T3201

    Dimensions ATW-T3201 (Unit: mm) ATW-T3202 (Unit: mm)
  • Page 33: Specifications

    *2 Open range environment with no interfering signals. *3 Frequency response depends on attached microphone element. *4 For assistance with multi-band operation or other frequency coordination issues, Contact your local audio-technica dealer. *5 Region and band dependent ATW-R3210N Receiving system True diversity Image rejection...
  • Page 34: Atw-T3202

    Specifications ATW-T3202 RF output power High: 30 mW, Low: 10 mW (switchable), at 50 ohms Spurious emissions Following federal and national regulations Microphone capsule Interchangeable industry standard thread High-pass (low-freq. roll-off) 150 Hz, 6dB/octave Batteries Two 1.5V AA, not included High: 8.0 hours (alkaline) Low: 9.0 hours (alkaline) Battery life*...
  • Page 35 Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2020 Audio-Technica Corporation ver.1 2019.12.15 Global Support Contact: www.at-globalsupport.com 232417280-02-02 ver.2 2020.04.01...
