Summary of Contents for Audio Technica 1200 Series
Page 1

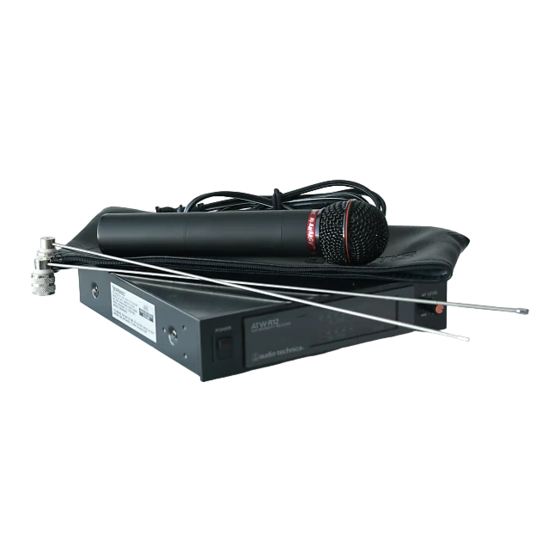

1200 Series Professional VHF Wireless Systems ATW-1235 UniPak ™ Transmitter System ATW-1236 Handheld Dynamic Microphone System ATW-1237 Handheld Condenser Microphone System Installation and Operation...
Professional VHF Wireless Systems Installation and Operation Receiver Installation This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does Location not cause harmful interference. For best operation the receiver This device complies with INDUSTRY CANADA R.S.S. should be at least 3 ft.
Page 3
Receiver Controls And Functions Fig. C Receiver Front Panel Fig. D Receiver Rear Panel Front Panel Controls and Functions (Fig. C) Rear Panel Controls and Functions (Fig. D) 1 POWER SWITCH/INDICATOR: Press switch on, and 7 TUNER “B” ANTENNA JACK: Antenna connector for the “power”...
Transmitter Setup Battery Selection Battery Condition Indicator An alkaline 9-volt battery is recommended. After the battery is installed, turn the power on. The battery ™ condition indicator LED (Fig. I/J) should flash momentarily. UniPak Transmitter Battery Installation If it does not, the battery is installed incorrectly or it is dead. 1.
System Operation Turn down the AF Level of the receiver as well as the mixer. UniPak Input Level Adjustment Switch on the receiver only. Do not switch on the transmitter Trimmer adjustments in the UniPak transmitter (Fig. K) will yet. enable you to use microphones with different output levels or guitars that have built-in preamps.
Page 6
Specifications Optional System Accessories † OVERALL SYSTEM MICROPHONES AND CABLES Operating Frequency VHF high band, 169.505 to 213.800 MHz AT829cW AT829 miniature cardioid condenser microphone only, terminated for use with UniPak transmitter. Includes Frequency Stability ±0.005%, single-frequency clothing clip and windscreen. crystal-controlled MT830cW MT830R subminiature omnidirectional condenser...
Page 7
Wireless Operating Frequencies Frequency Selection RF Interference Each transmitter/receiver system operates on a single factory- If you encounter receiving interference (from other than an aligned, crystal-controlled frequency. Available frequencies are operating TV station), often it can be eliminated by adjusting shown in the chart below.
Page 8
One-Year Limited Warranty Audio-Technica professional wireless systems purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. ( A. T .U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.
