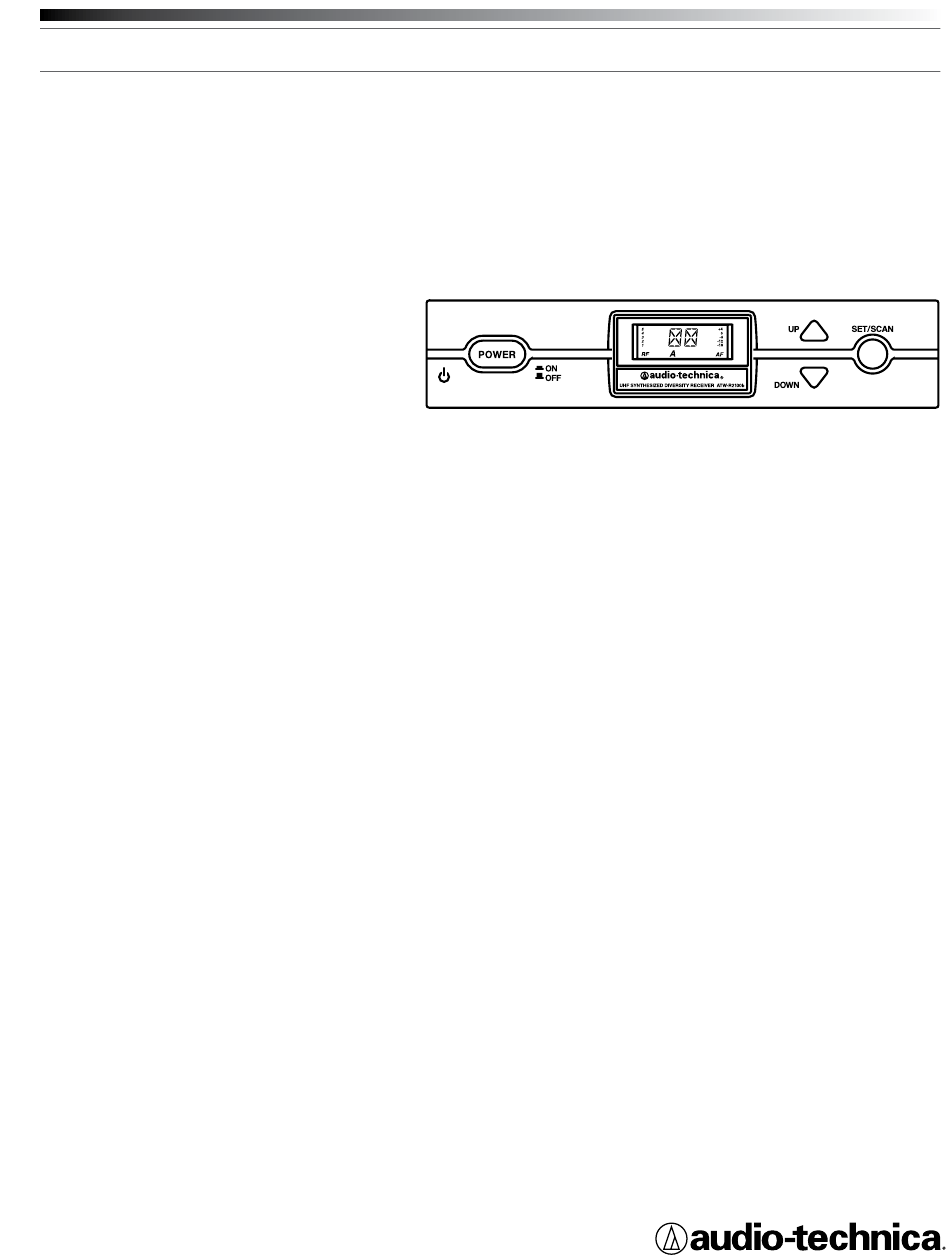

- Page 1 2000 Series Frequency-agile True Diversity UHF Wireless System Installation and Operation...
- Page 2 2000 Series Installation and Operation This device complies with part 15 of the FCC Rules. Operation is regulations. Do not attempt to open the receiver or transmitter. subject to the condition that this device does not cause harmful To do so will void the warranty, and may cause improper operation. interference.
-
Page 3: Receiver Installation
2000 Series Installation and Operation Switchable antenna power is also provided. Soft-touch controls provide Output Connections convenient access to selection of operating frequency and automatic There are two audio outputs on the back panel: balanced and scanning, while an LCD information display provides constant unbalanced. - Page 4 2000 Series Installation and Operation Receiver Controls and Functions Fig. B – Front Panel Controls and Functions Fig. C – Receiver LCD Window Display 1. POWER SWITCH: Press the Power switch in to turn the receiver on. The LCD window will light, and the operating channel number will be displayed in the window.
- Page 5 2000 Series Installation and Operation Fig. D – Rear Panel Controls and Functions 60mA 60mA 15. AF LEVEL CONTROL: Adjusts audio output level of both AF output 10. ANTENNA INPUT JACK: BNC-type antenna connector for jacks. Factory setting maximum output—fully clockwise. Tuner “B.
-
Page 6: Transmitter Controls And Functions
2000 Series Installation and Operation Transmitter Controls and Functions Handheld Transmitter Battery Installation 1. While holding the upper part of the transmitter body below the ball- screen, unscrew the lower body cover, slide it downward, and Battery Selection remove it to expose the battery compartment. Two 1.5V AA alkaline batteries or rechargeable AA NiMH batteries for use with Audio-Technica’s ATW-CHG2 Recharging Station are 2. -
Page 7: System Operation
2000 Series Installation and Operation System Operation Setting Levels Correct adjustment of transmitter audio input, receiver audio output, and mixer/amplifier input and output levels is important for optimum Switch on the receiver. Do not switch on the transmitter yet. system performance. Receiver On…... - Page 8 2000 Series Installation and Operation Setting Levels (Continued) Fig. E – UniPak Transmitter Open ® ATW-T210a UniPak Transmitter ® Trimmer adjustments in the UniPak transmitter (Fig. E ) will enable you ® to use microphones or instruments with different output levels. 1.
-
Page 9: Specifications
2000 Series Installation and Operation Specifications † Overall System ATW-T210a UniPak Transmitter ® UHF Operating Frequencies RF Power Output (50 ohms) High: 30 mW, Low: 10 mW Frequency Range Number of Channels (switchable) Band D: 656.125 to 678.500 MHz Spurious Emissions Following federal and national Band E: 795.500 to 805.875 MHz 10... - Page 10 2000 Series Installation and Operation 2000 Series Frequency Channel Plan Band U (A)* Channel Frequency-MHz Band D 607 . 625 Channel Frequency-MHz 608 . 875 656 . 125 609 . 575 659 . 375 610 . 400 660 . 000 611 .
-
Page 11: Statement Of Compliance
EU declaration of conformity is available at the following internet address: Με το παρών , η Audio Technica Corp., δηλώνει ότι τα ATW-T210a , ATW-T220a και ATW-R2100b συμφωνούν με την οδηγία 1999/5/EK . Το πλήρες κείμενο της οδηγίας της EU ( Δήλωση Συμμόρφωσης ) , είναι διαθέσιμο στην παρακάτω διεύθυνση διαδικτίου. - Page 12 To reduce the environmental impact of a multi-language printed document, product information Per evitare l’impatto ambientale che la stampa di questo documento determinerebbe, le is available online at www.audio-technica.com in a selection of languages. informazioni sui prodotti sono disponibili online in diverse lingue sul sito www.audio-technica.com. Afin de réduire l’impact sur l’environnement de l’impression de plusieurs langues, les Der Umwelt zuliebe finden Sie die Produktinformationen in deutscher Sprache und weiteren informations concernant les produits sont disponibles sur le site www.audio-technica.com dans...
