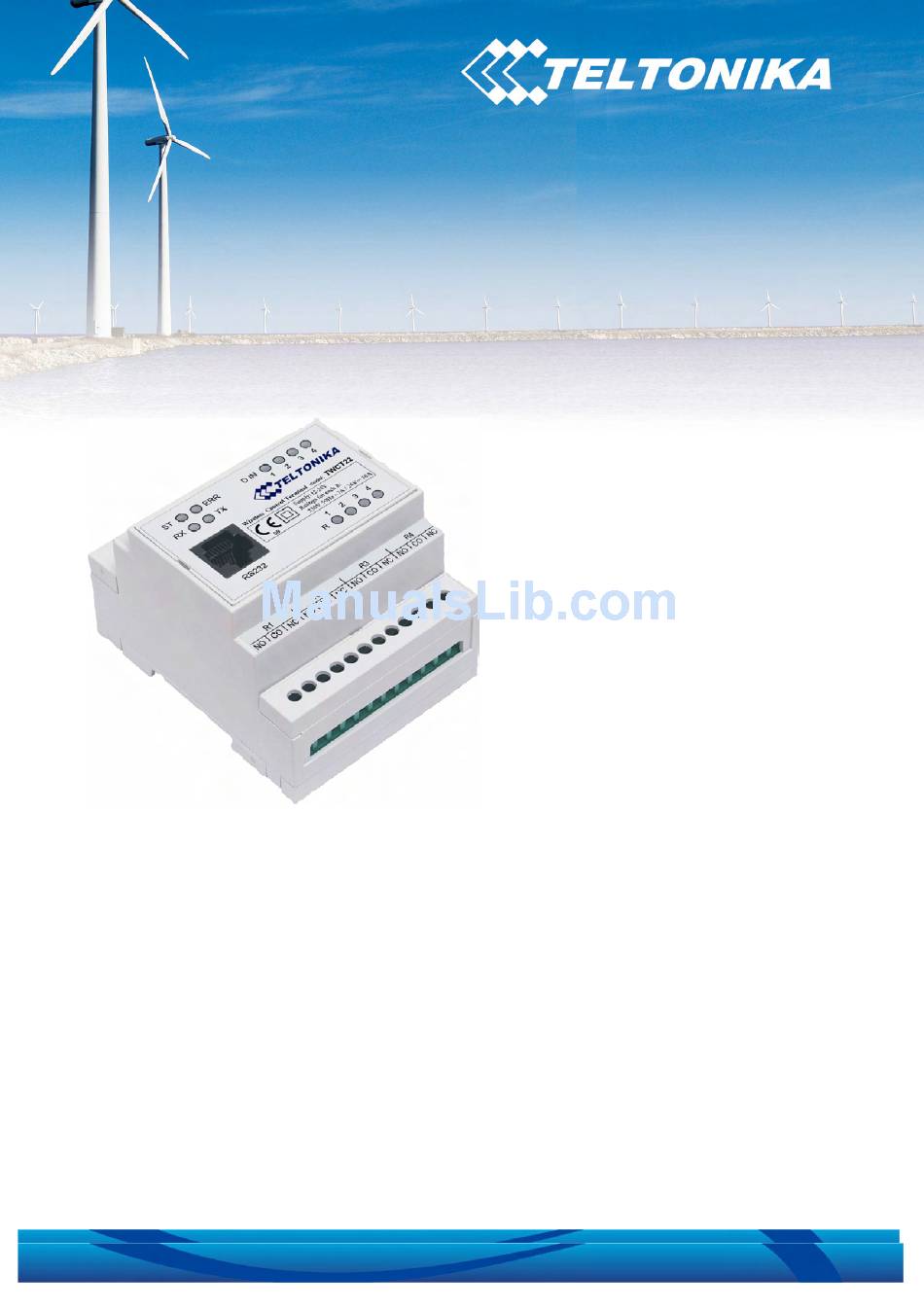

- Page 1 ALARM MONITORING & CONTROL SYSTEM TWCT22 USER MANUAL 1.6 UAB TELTONIKA Saltoniskiu str. 10C, LT-08105, Vilnius, Lithuania Phone: +370 5 2127472 Fax: +370 5 2761380 info@teltonika.lt www.teltonika.eu...
- Page 2 Copyright © 2012 UAB „Teltonika“. Disclaimer: The use of Alarm Monitoring and Control System TWCT22 is at sole discretion of the user. Teltonika cannot be held responsible for any damages arising due to use of Alarm Monitoring and Control System...
-
Page 3: Table Of Contents
CONTENT ATTENTION ............................4 SAFETY INSTRUCTIONS........................4 DISCONNECTIONS FROM THE MAIN SUPPLY ..............5 INTRODUCTION ..........................5 TECHNICAL SPECIFICATION ......................5 MECHANICAL INTEGRATION......................6 PACKAGE CONTENTS......................6 DIMENSIONS ..........................6 FRONT PANEL..........................7 CONNECTORS PIN-OUT ........................8 CONNECTORS FRONT UP PIN-OUT..................8 CONNECTORS FRONT DOWN PIN-OUT ................ -
Page 4: Attention
LEDs provide information about the working modes and conditions of the device. Signal level of the TWCT22 depends on the environment in which it is working. If the device fails to work properly only qualified personnel may repair this product. We recommend to disconnect the device and forward it to repair centre or to the manufacturer. -
Page 5: Disconnections From The Main Supply

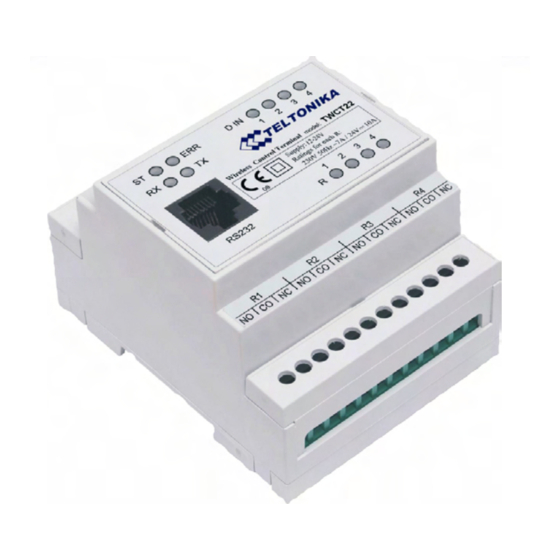

(figure 7.3.1). 3 INTRODUCTION TWCT22 is a compact alarm monitoring and remote control device for electronic equipments with support of Short Messages (SMS), phone calls, e-mails and GPRS connections. The device is configurable through internal WEB server interface via GSM network and RS232 interface. Multiple users can interrogate TWCT22 or be notified on configurable events. -
Page 6: Mechanical Integration
When a place for TWCT22 is being planned, it should be considered that GSM antenna, which is supplied in your package, should NOT be placed in metal case. If you plan to mount TWCT22 into a metal case, please mount the antenna outside of the metal case. If cable length is not enough, contact our sales department to order antennas with longer cables. -
Page 7: Front Panel
4 relay outputs state LED Figure 5.3.1 ST – Power LED turns on when power is applied to TWCT22. It also shows the device’s working status: • LED ON; • LED blink low (0.2s ON, 0.6s OFF) – the device is registered in GSM network;... -
Page 8: Connectors Pin-Out
6 CONNECTORS PIN-OUT 6.1 CONNECTORS FRONT UP PIN-OUT Figure 6.1.1 Table 6.1.1. Connector pin-out Pin name Description A IN 1 - Analog input 1. Input voltage range is from 0 to 10Vdc in voltage mode or input A IN 1 + current range is 4-20mA in current mode. -
Page 9: Connectors Front Down Pin-Out
6.3 SERIAL PORT (RS232 INTERFACE) Serial port is used for communication with internal WEB server. Internal WEB server allows editing configured data. RS232 port is used just for configurations of TWCT22 and it is not able to communicate with additional devices via RS232 port. -
Page 10: Sample Electrical Connection
Serial port parameters: • Interface format RS232C • Logic levels (RS232C levels) • Speed: 115200 bauds • Format: 8 bits • Parity: none • Stop bits: 1 Figure 6.3.1. RJ45 connector • Flow control: hardware The communication connector is an eight way RJ45 PLUG style connector. Table 6.3.1. -
Page 11: Installation And Starting
Figure 6.4.2. Sample scheme 7 INSTALLATION AND STARTING 7.1 INSTALLING A SIM CARD • Remove the cover with screwdriver (see the figure 7.1.1). • Slide the SIM card holder toward its hinge to unlock it (see the figure 7.1.2). • Lift the SIM card holder. •... -
Page 12: Dip Switch Settings
Figure 7.2.1 7.3 CONNECTION TO PC There are two possible ways to PC connection for TWCT22 configurations, the first is single RS232 connection and the second one is via GPRS, both connections are done with TWCT.EXE program. 7.3.1 PC Connections via RS232: 1. -
Page 13: Pc Connections Via Gprs
Figure 7.3.2 TWCT.EXE software in RS232 mode 7. You can find possible port to which is connected TWCT22 device by pressing the button Autodetect and Internet explorer window will run automatically. If a window (see below) is appeared that means that COM port is opened by another program. - Page 14 2. Run TWCT.EXE program. Short Message with text “CONNECT x.x.x.x.:PortNo” is sent to TWCT22 device's phone number. Here x.x.x.x. – external IP address of the computer and PortNo – port number. TWCT22 will try to connect to specified IP address and port number once.
- Page 15 In this case it’s necessary to change port number settings If TWCT22 is not able to connect to TWCT.EXE program, there could be several reasons: 1. External connection is blocked by the local computer or remote firewall. It must be unblocked for TWCT.EXE to work properly.
-
Page 16: Data Configuration
8 DATA CONFIGURATION Data configuration is executed by the internal WEB server application. You need to connect TWCT22 to PC and the server program should be run. 8.1 APPLICATION‘S LOGICAL ELEMENT System log Events Actions 4 IN Logics RELAY Users,... -
Page 17: Logics
In Picture 1. you can see the example. It shows relationship between Events and Actions. It means that after call, TWCT22 set light to ROUT 2 and send SMS to users or groups of users. This depends on configuration in menu Actions and Users. -
Page 18: Events
“ctrl”. 8.4 EVENTS One of the main function elements of TWCT22 is to alert you whenever digital/analog inputs to the TWCT22cross their predefined value. Events define conditions of the digital inputs (DIN), analog inputs (AIN), received messages, time events and errors. -
Page 19: Digital Event
← The name of events does not have any role in execution of the event. It's just used as identification, so you are free to give any name. You are able to use text, numbers, special characters. ← Select the digital type from the list: Analog UP, Analog DOWN, Analog HIGH, Analog LOW. - Page 20 Picture 8.4.3 ← The name of events does not have any role in execution of the event. It's just used as identification, so you are free to give any name. You are able to use text, numbers, special characters. ← Select the digital type from the list: Digital UP, Digital DOWN, Digital HIGH, Digital LOW.
-
Page 21: Message Event
8.4.3 Message Event - Press button . Then you will see the new item “no name” (picture 8.4.4). Click it and configure parameters. Picture 8.4.4 ← The name of events does not have any role in execution of the event. It's just used as identification, so you are free to give any name. -
Page 22: Special Markers
Answer: 7,4 V, 1, 0, 0, 17 V, 2009.11.09 2. Also there is a possibility to change TWCT22 e-mail subject by writing in the Action Message in message field on the first string text: Subject: xxxxxx – there “xxxxxx” is the preferred subject text in e-mail. -
Page 23: Timer Event
Timer events are used to set exactly time, when some actions should be taken. For example, you are far from place, where the TWCT22 is located. You can get the information about this device condition by SMS, call or e-mail. You just need to set start time, end time and repetition time (if you want that this event should be repeated). -
Page 24: Actions
Actions define operations for the device to perform. For example, then you using Timer Events, you can set there that TWCT22 should do at exactly date and time. The device could take Rout actions, make calls, send short messages or e-mails. -
Page 25: Message
← It's name of action and does not have any effect on operation of action. It's just for easy identification in case you have more than one action. You are free to give any name using text, numbers, special characters. ←... - Page 26 ← It's name of action and does not have any effect on operation of action. It's just for easy identification in case you have more than one action. You are free to give any name using text, numbers, special characters. ←...
-
Page 27: Users
8.6 USERS - User is authorized person wich is allowed to use the device TWCT22. The users entered here would have the privileges to receive alarm alerts or control the actions of TWCT22through short message or Phone calls. User element is made of user name, telephone number and email address. The user list can be edited by adding or deleting users. -
Page 28: Settings
← Changing of PIN or PIN forbid is possible in the PIN item. If it is necessary to protect SIM card in the TWCT22 by PIN number, to area SIM PIN it is written PIN number and it is confirmed by button Store PIN. - Page 29 ← Dynamic DNS settings are used to access TWCT22 from the Internet. Please fill settings if the Dynamic DNS account is used. IP Update time is accounted in seconds, it cannot be less 300 ← In this area you can change SMS Center Number if the default number is not good.
-
Page 30: Status
The item GPRS in menu contains information about PLMN (code of operator), cell, channel and signal (information by a single application find out on power up TWCT22). In bottom of window hereof windows it is GPRS Connection Log, where there are information about make up GPRS connection and pertinent problems on this formation. -
Page 31: System Log
8.9 SYSTEM LOG Log is the events registration. There's also the list of errors. ← To see the latest actions – press button REFRESH. It is not necessary contain information about action, so delete it with button ERASE. Picture 8.9.1... -
Page 32: Tests
8.10 TESTS Test describes the device status review. To acsess into tests meanu: http://localhost:5000/test ← To test relay outputs and analog inputs status just select it and press Apply button. Picture 8.10.1... -
Page 33: Support
9 SUPPORT Before contacting for support, make sure that you went through the above manual thoroughly. If you are still facing problems, feel free to contact our technical support team at support@teltonika.lt we would be glad to help you.
