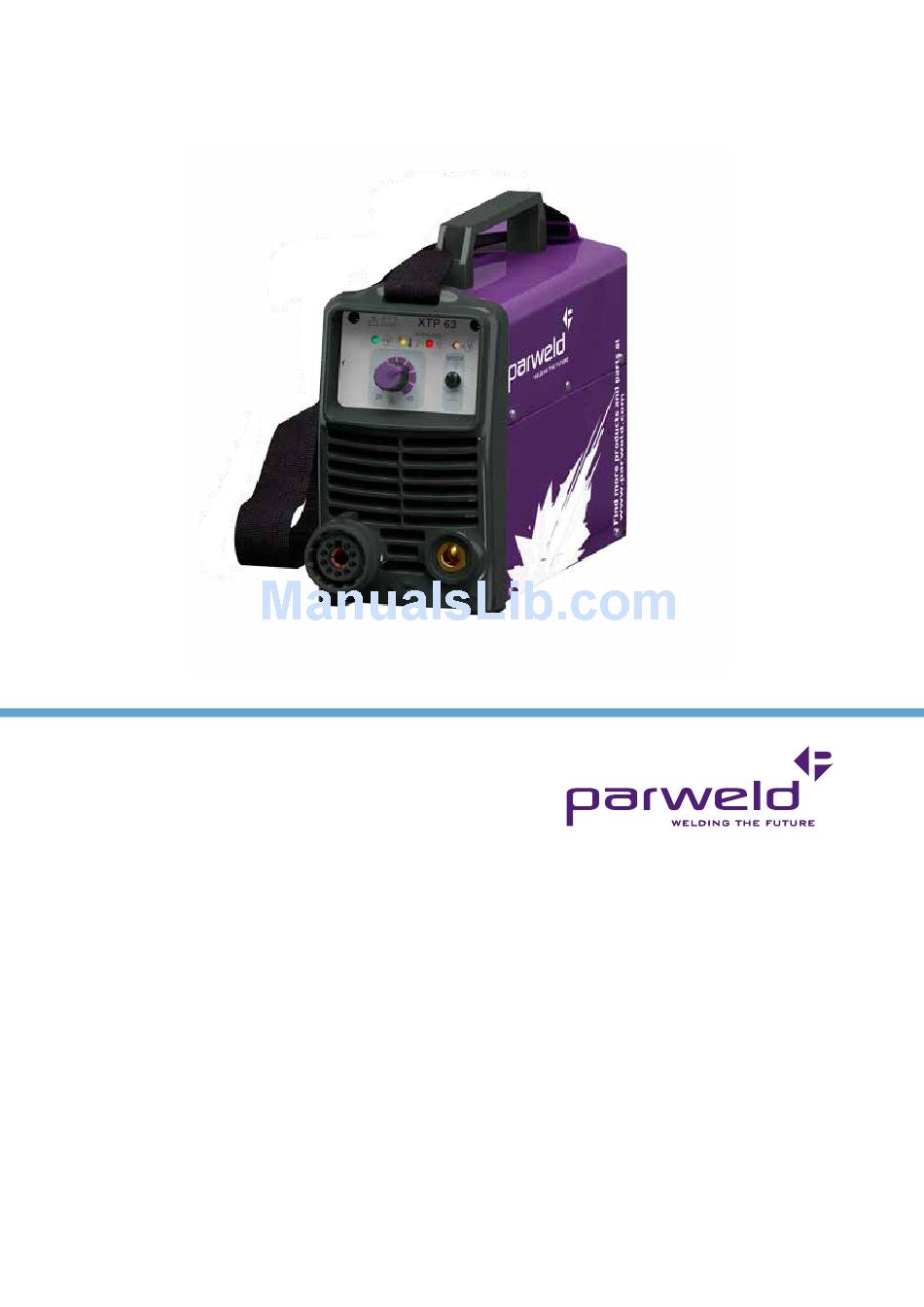

- Page 1 XTP-63 OperatOr Manual ISSue 1...
- Page 2 Thank you and congratulations on choosing Parweld. This Owner’s Manual is designed to help you get the most out of your Parweld products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards in the workplace. With proper maintenance this equipment should provide years of reliable service.
-
Page 3: Table Of Contents
Contents Page 1.0 Safety precautions 2.0 product description 3.0 Technical Specifications 4.0 Description of controls 5.0 Installation 5.1 Unpacking the Machine 5.2 Location 5.3 Input and grounding connection 5.4 Torch Installation 5.5 Work return lead connection 6.0 Operation 6.1 Consumable parts 6.2 switching on the machine 6.3 Setting the Air pressure 6.4 Getting ready to Cut... -
Page 4: Safety Precautions
Protect yourself and others from flying sparks and hot metal. contact with any metal object. Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Watch for fire, and keep a fire extinguisher nearby. Be aware that www.parweld.com... -
Page 5: Product Description
Turn face away from valve outlet when opening cylinder valve. Use the right equipment, correct procedures, and sufficient number of persons to lift and move cylinders. www.parweld.com... -
Page 6: Description Of Controls

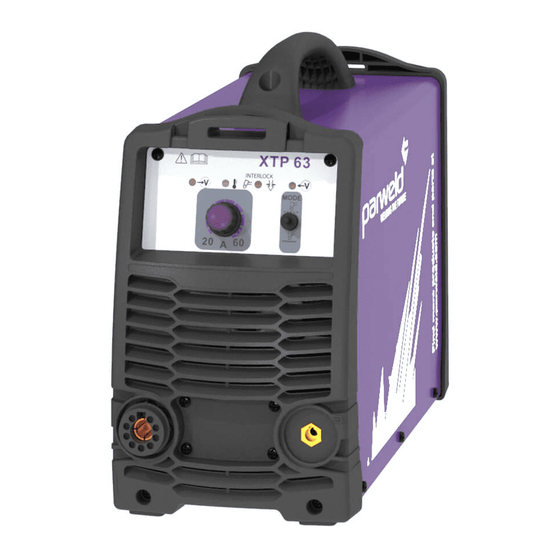

The XTP-63 machine can be used on 400V supply and will automatically adjust itself depending upon the voltage applied. 3) Power light This indicates mains power is applied to the machine and that the machine is currently switched on when the light is Refer to the specifications table for voltage tolerances. -
Page 7: Torch Installation
The life of the electrode is dependant upon the cut amperage and the number of starting operations performed. The higher start frequency and cutting power will give the shortest electrode life. Check the electrode condition every 30 minutes of cutting www.parweld.com... -
Page 8: Cut Quality
Refer to the flow chart below for the or moisture operating sequence. buildup (do not activate torch) Heavy dross on under- Cutting power is to low Increase side of plate cutting power www.parweld.com... - Page 9 To clean the unit, remove the screws securing the outer cover, lift off the outer cover and use a vacuum cleaner to remove any accumulated dirt and dust. The unit should also be wiped clean, if necessary; with solvents that are recommended for cleaning electrical apparatus. www.parweld.com...
-
Page 10: Accessories
8.0 Accessories Parweld XT4000 Rating: 60A @ 80% Duty Cycle, EN60974-7 Technical Data Consumables Stock Code Description Voltage Class Standard Length XT4008 Double Pointed Spacer Air Consumption 110 l/min XT4007 Retaining Cap Air Pressure 5 Bar XT4005-08 Cutting Tip 0.8mm 20-30A... -
Page 11: Ec Declaration Of Conformity
9.0 eC declaration of conformity Hereby we declare that the machines as stated below Type: XTP-63 Conform to the EC Directives: Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC Harmonised European standard: EN/IEC 60974-1 This is to certify that the tested sample is in conformity with all provisions of the above detailed EU directives and product standards. -
Page 12: Weee Statement
WEE compliance outside the UK please contact your supplier/Importer Parweld is registered with a compliance scheme Official registration number is WEE/FD0255QV When your equipment reaches the end of its service life you should return it to Parweld where it will be reconditioned or processed for recycling. - Page 13 www.parweld.com...
