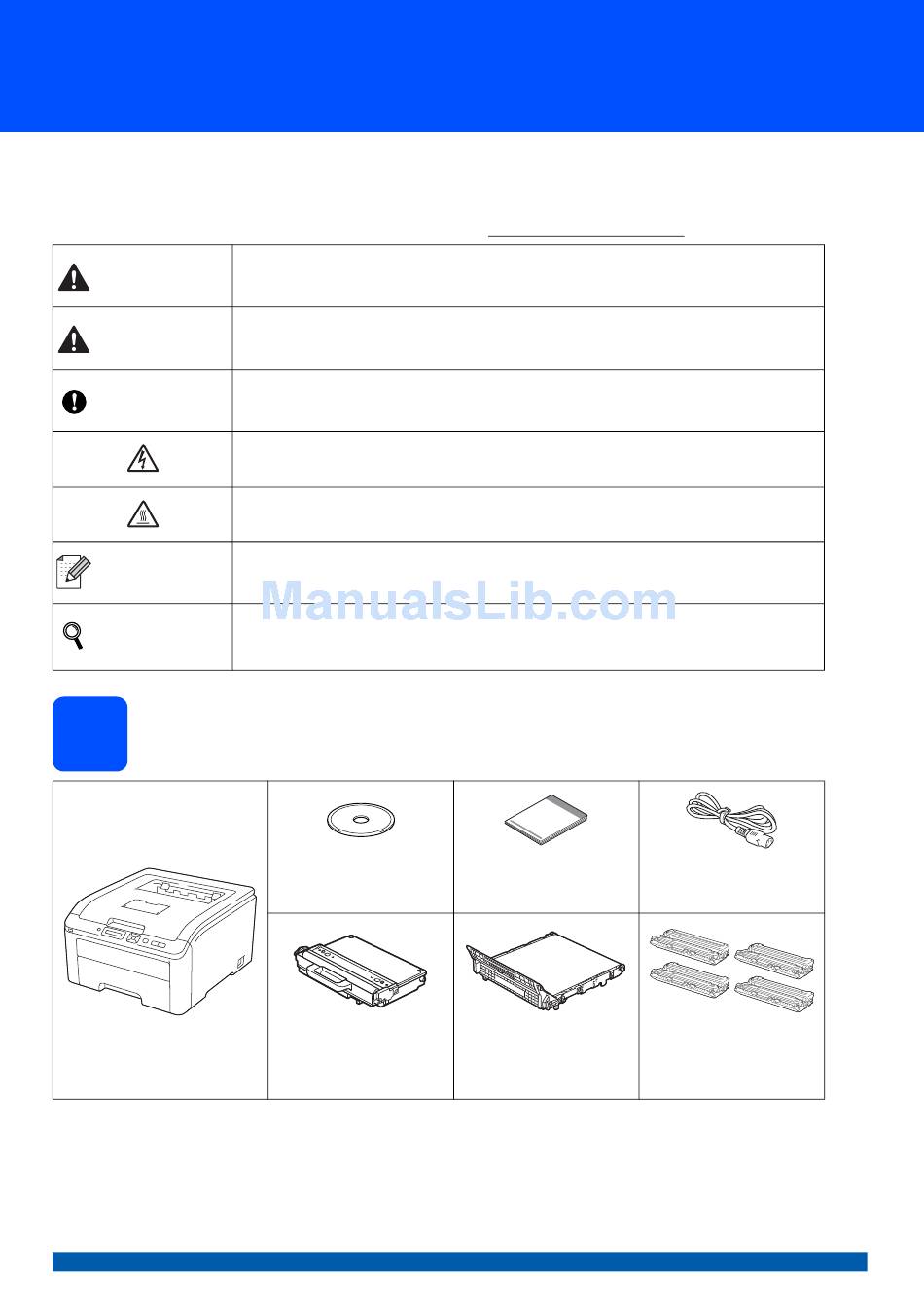

Quick Setup Guide
Start Here
Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product
is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.
Before using the printer, read this Quick Setup Guide for the correct setup and installation.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
WARNING
CAUTION
IMPORTANT
Note
User's Guide
Network User's
Guide
1
Unpack the printer and check the components
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injuries.
IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in
damage to property or loss of product functionality.
Electrical Hazard icons alert you to a possible electrical shock.
Hot Surface icons warn you not to touch printer parts that are hot.
Notes tell you how you should respond to a situation that may arise or give tips about how the
operation works with other features.
Indicates reference to the User's Guide or Network User's Guide which is on the CD-ROM we
have supplied.
CD-ROM
(including User's Guide and
Network User's Guide)
Waste Toner Box
(pre-installed)
Quick Setup Guide
Belt Unit
(pre-installed)
(Black, Cyan, Magenta and
HL-3075CW
AC Power Cord
Drum Unit and Toner
Cartridge Assemblies
Yellow)
ENG Version 0
1
