Assembly Instructions and Parts List
Please read and save these instructions. Read carefully before attempting to assem-
ble, install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.

Specifications

Cleaning
Model Power
PW1580 2550

Assembly Instructions

1. Attach black handle with enclosed
screws as shown. The longest
screw goes into the top hole of
the handle.
2. Assemble wheels to the bottom of
pressure washer as shown.
3. Attach foot to bottom of pressure
washer as shown.
4. Attach hose and cord holder with
enclosed screws as shown.
5. Stand pressure washer upright on
wheels and foot. Put chemical suc-
tion tube in detergent bottle and
push detergent bottle into back of
pressure washer.
© 2003 Campbell Hausfeld
Max Pressure
with
Standard Maximum (Single
Lance Capacity
1500 psi 1.7 GPM 14 Amps
For parts, product & service information
visit www.chpower.com
Electric Pressure
Washer
NOTE: REFER TO PRODUCT MANUAL
FOR ALL SAFETY INSTRUCTIONS
Motor
Power
Phase) Voltage

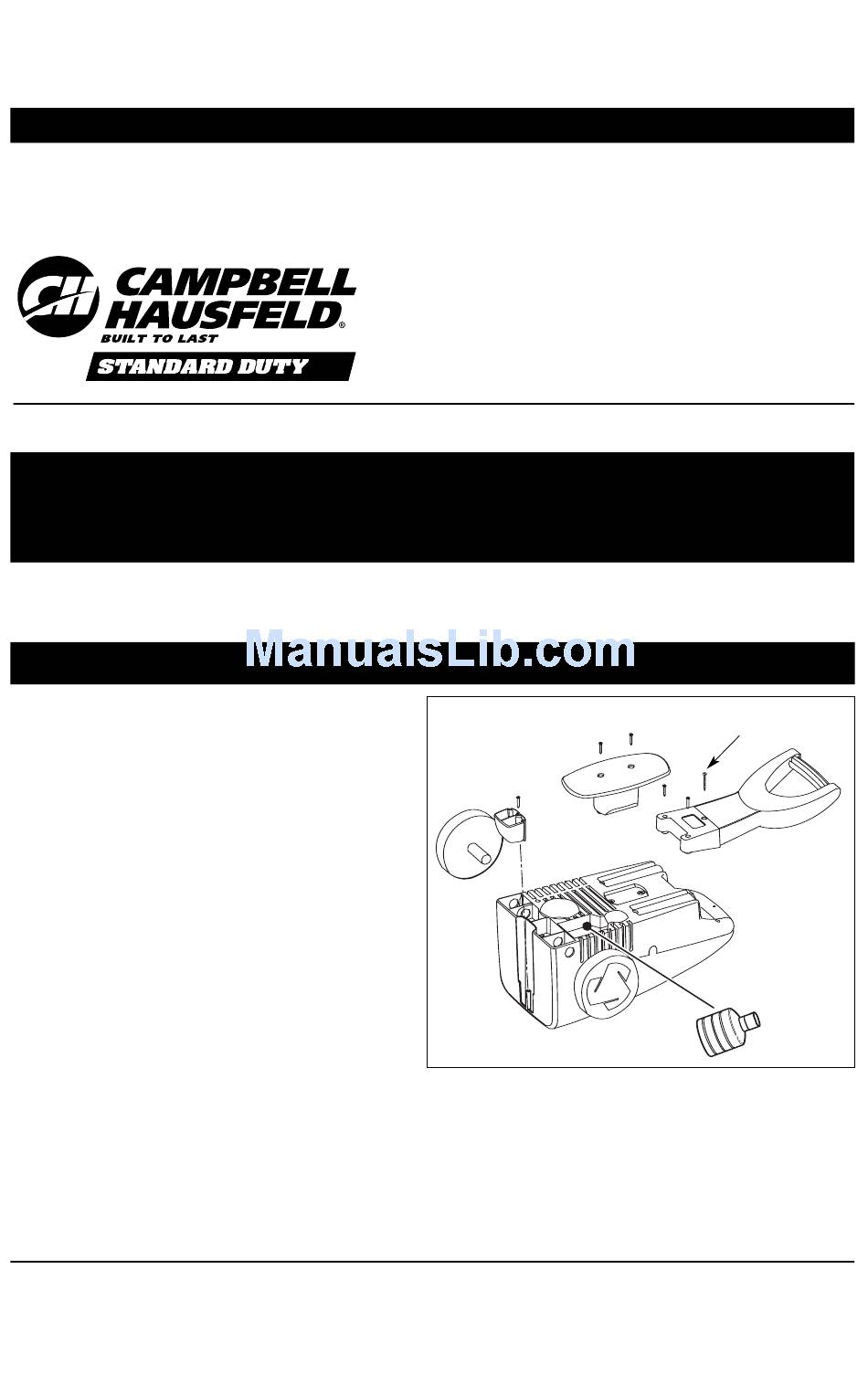

Figure 1
PW1580
Maximum
Inlet
Water
Temp.
120V 100˚F
Longest Screw
IN463200AV 10/03
Unit
Weight
25 lbs.
