With the Mounting Plate and the hanging screws (for the FX Inverter/Chargers) inserted,
install the FXs.
• Start with the top FX.
• Hang the FX on the hanging screws, but continue to hold onto it.
• Loosely install four M6 X 20 mm screws, included with the FW-MP, one in each corner; tighten
them when all four are installed and the FX is aligned.
• Install the remaining FX in the same manner.
AC side DC side

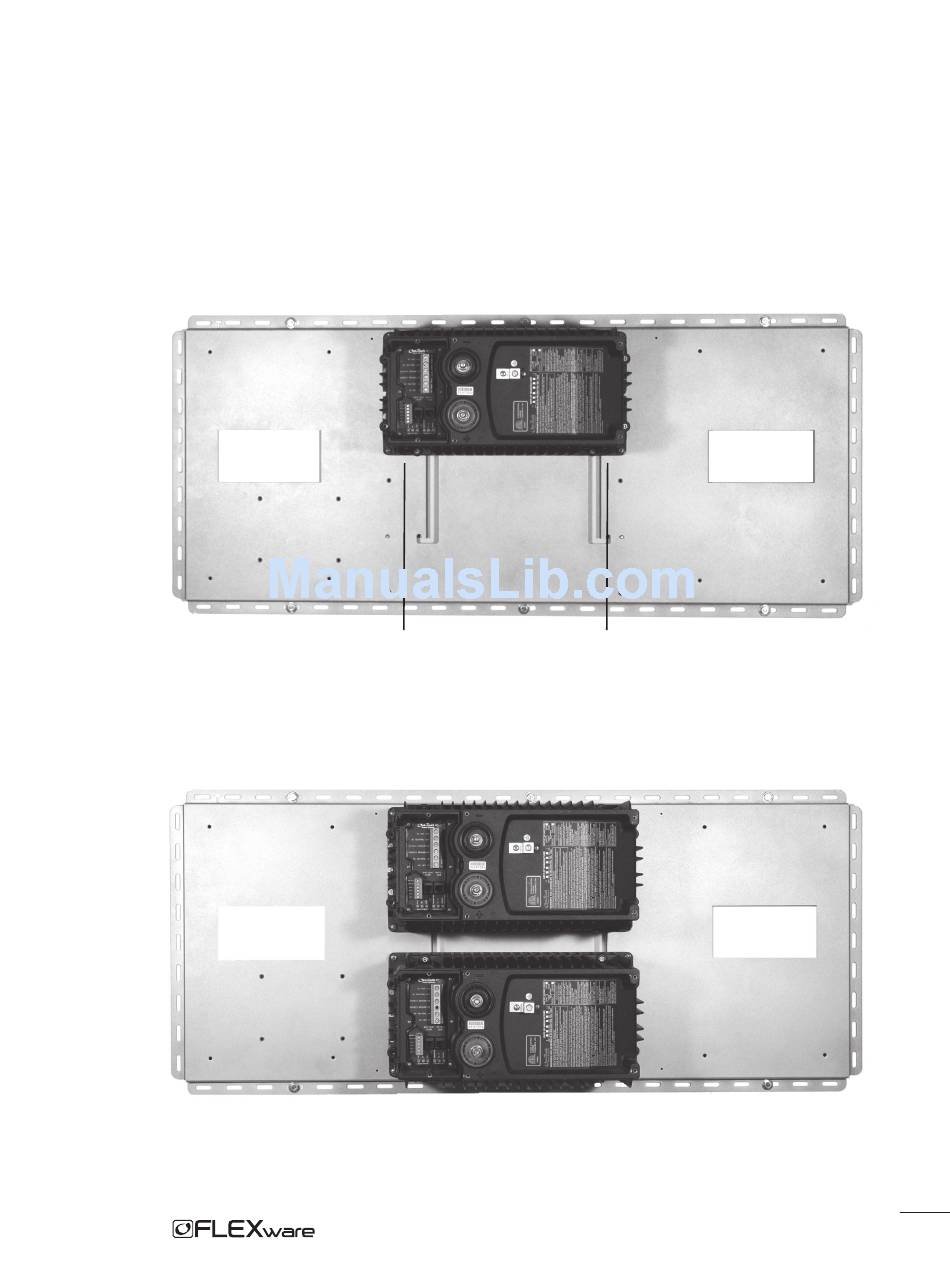

Figure 4: First FX installed
Figure 5: Both FXs installed
