Installation of the AC Chassis and DC Chassis
To install the chassis:
• Hold each chassis up to its respective mounting holes on the FW-MP.
• Place one M6 X 10mm machine screw (provided with the FW-MP) in each corner, tightening
only enough to keep the chassis in place.
AC side
DC side
AC Chassis
DC Chassis
Mounting Holes
Mounting Holes

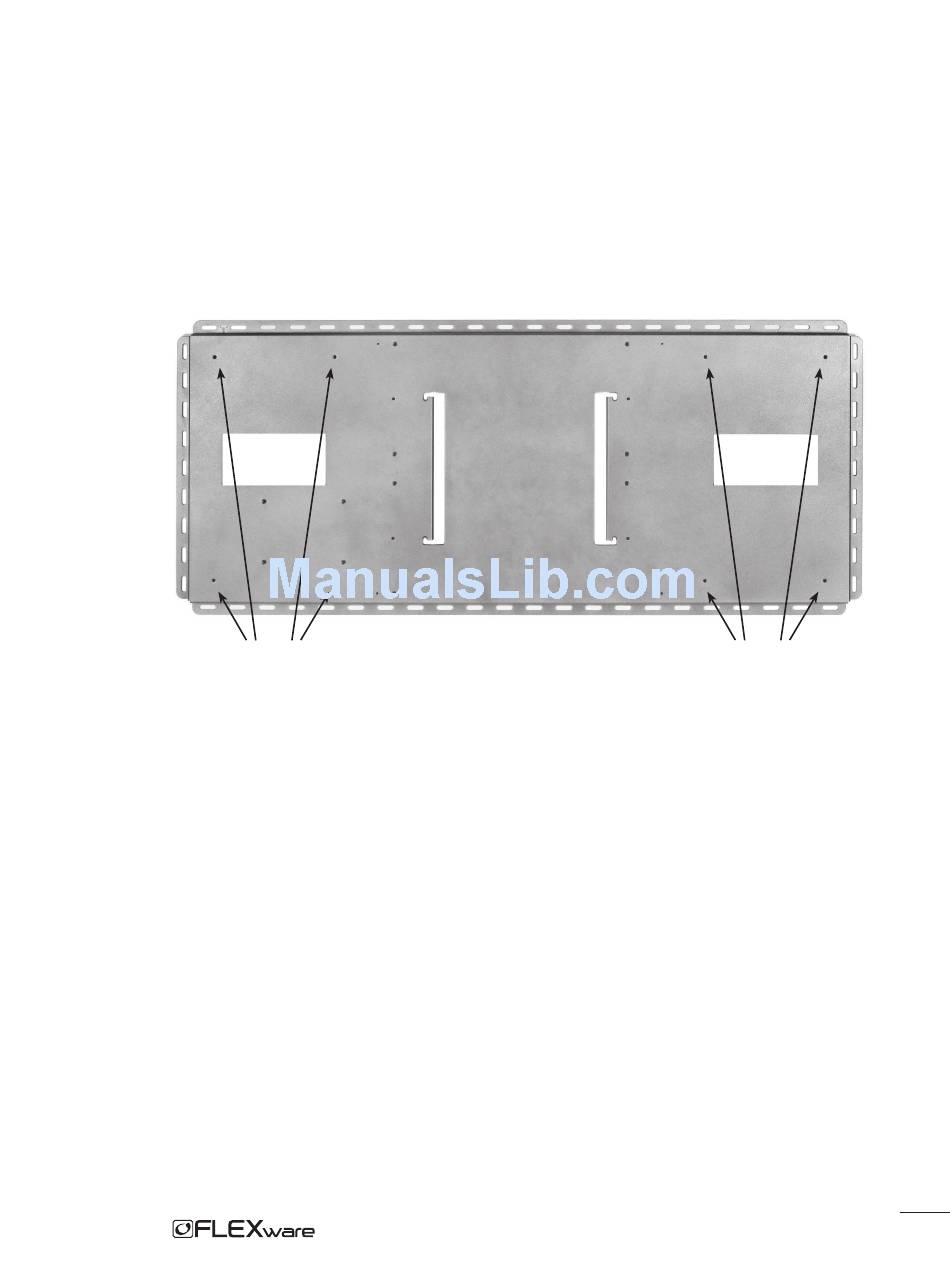

Figure 7: Chassis Mounting Holes
