MX60 Installation
A FLEXware 500 System will normally have up to two MX Charge Controllers installed on the
FW500-DC. The chassis accommodates both side and top installation. Newer MXs have rear
knockouts allowing them to be mounted directly to the side of the enclosure without the need for
additional mounting brackets. Mounting brackets are available for top installation of all MX models
and for side installation less recent models.
Bracket screw locations are
shown below

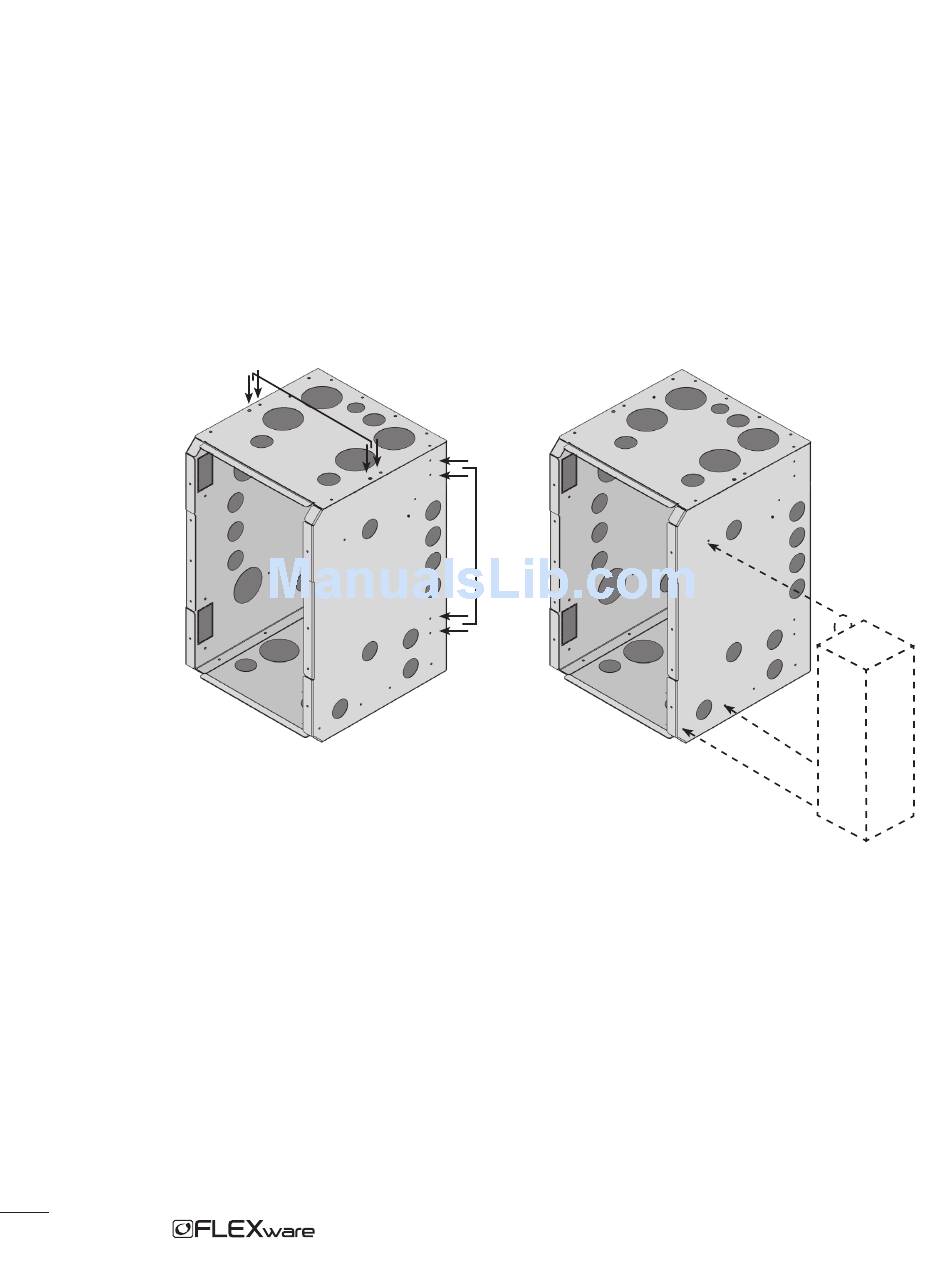

Figure 13:
MX Charge Controller mounting options
14
Screw locations for directly attaching an
MX Charge Controller are shown below
