AUDIO MONITORING

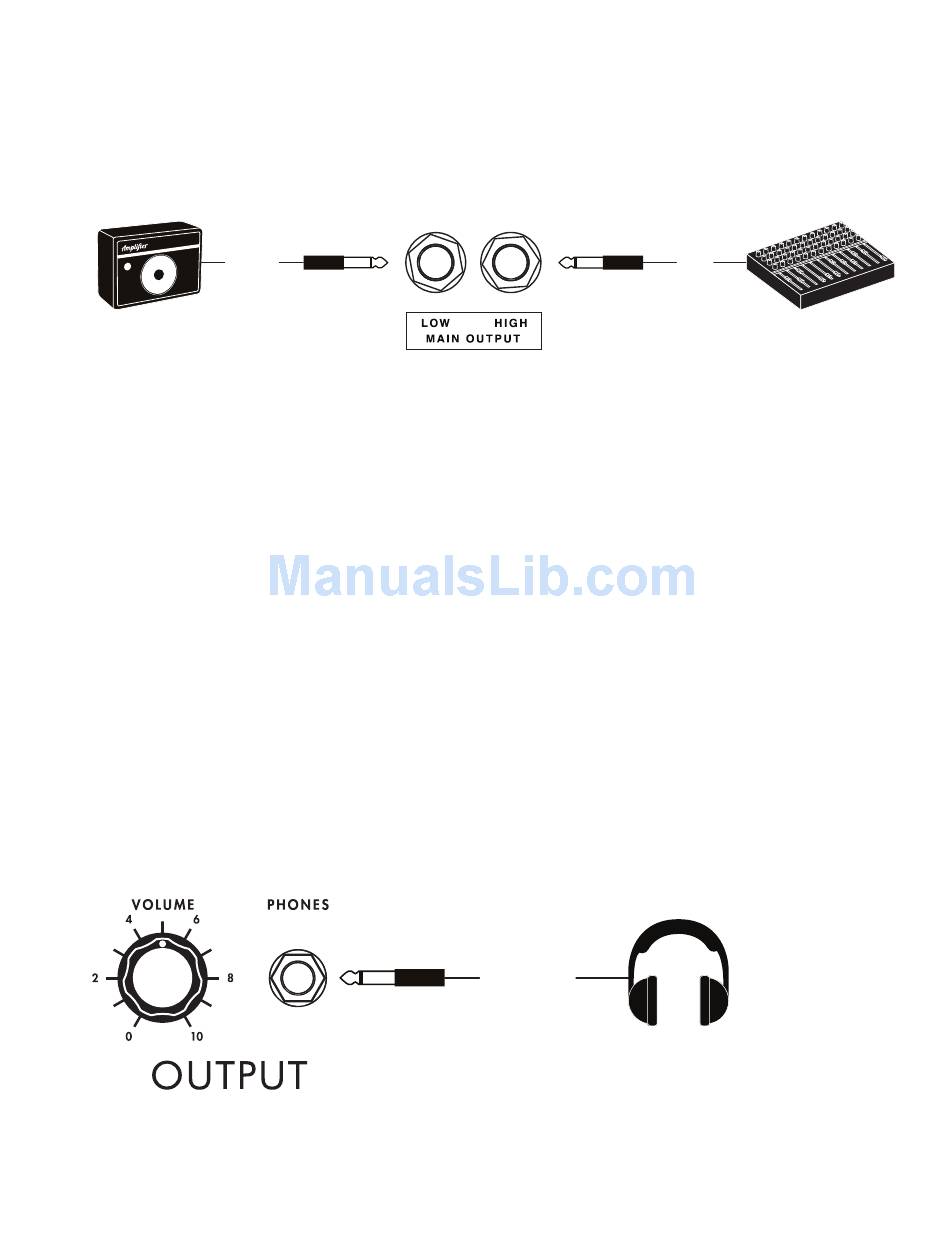

Connect the Minimoog Model D to an instrument amplifier, powered speaker, or other monitoring
system. On the top panel, two 1/4" TS outputs are provided. One is a high-level output suitable for
connection to the line input of a mixer, recording setup, or other audio system. The other is a high
impedance, low-level output that can connect to to an instrument amplifier or other high gain, high
impedance input.
Amplifier
1. Begin with the monitoring system off and the Minimoog Model D VOLUME knob set to zero.
2. Use the appropriate output to connect the Minimoog Model D to the audio monitoring system.
3. Turn the Minimoog Model D on.
TIP: To test the audio system and set your levels without taking the time to program a sound, at this
stage simply flip On the A-440 switch in the output section. This will provide a reference tone controlled
by the VOLUME knob.
4. Turn the MAIN OUTPUT switch On and raise the VOLUME knob to about 6.
5. Now turn on the monitoring system, and raise the levels to an appropriate audio level.
NOTE: Because the Minimoog Model D is an analog instrument, please allow it to warm up for 10-20
minutes before use. This will best ensure the most stable performance.
HEADPHONE MONITORING
The Minimoog Model D also features a headphone output jack with an independent Volume control.
Plug your headphones into the PHONES jack and adjust the level using the PHONES Volume knob.
Headphones
8
Mixer
