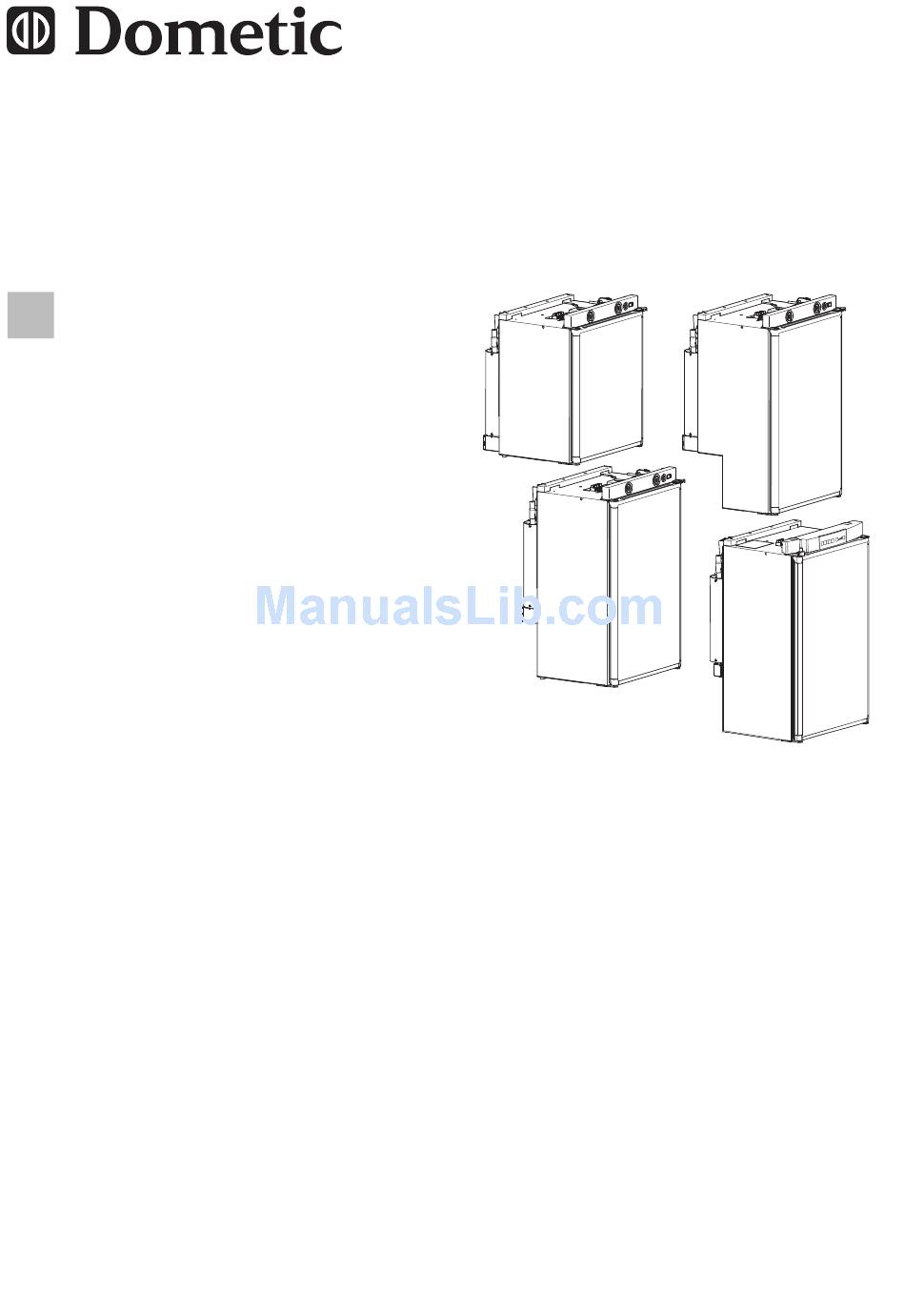

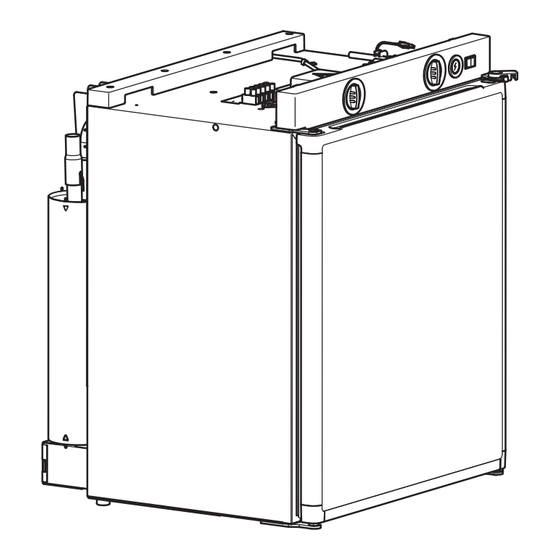

- Page 1 Absorber refrigerator Operating manual ....9 RM5310, RM5330, RM5380, RM5385...
- Page 3 RM5310 – RM5385 MOD. NO. PROD. NO. SER. NO. TYPE C 40/110 CLIMATE CLASS BRUTTOINHALT VERDAMPFERFACH NUTZINHALT TOTAL CAP. FREEZER COMP. USEFUL CAP. VOLUME BRUT VOLUME COMPT BT VOLUME NET 10R – 047358 0085 MADE IN GERMANY 00094200762...
-
Page 4: Rm 5310, Rm 5330, Rm 5380
RM5310 – RM5385 RM 5310, RM 5330, RM 5380 RM 5310, RM 5330, RM 5380 RM 5385 RM 5310, RM 5330, RM 5380... -
Page 5: Rm 5310, Rm 5330, Rm
RM5310 – RM5385 RM 5310, RM 5330, RM 5385 RM 5380... - Page 6 RM5310 – RM5385...
- Page 7 RM5310 – RM5385...
- Page 8 RM5310 – RM5385 2 – 3 mm...
-
Page 9: Table Of Contents
RM5310 – RM5385 Please read this manual carefully before starting up and store it in a safe place. If you pass on the device to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols ........10 Safety instructions . -
Page 10: Explanation Of Symbols
Explanation of symbols RM5310 – RM5385 Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. - Page 11 RM5310 – RM5385 Safety instructions This refrigerator can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised or have been instructed how to use the refrigerator safely and are aware of the resulting risks.
- Page 12 Safety instructions RM5310 – RM5385 Safe operation CAUTION! Close the refrigerator door before beginning a journey. The refrigerator unit at the back of the refrigerator gets very hot during operation. Protect yourself from coming into contact with hot parts when removing ventilation grilles.
-
Page 13: Scope Of Delivery
RM5310 – RM5385 Scope of delivery Safety when operating with gas WARNING! Only operate the refrigerator at the pressure shown on the type plate. Use a DIN-DVGW-approved pressure regulator with a fixed setting in accordance with DIN EN 12864. Never store liquid gas cylinders in unventilated areas or below ground level (funnel shaped holes in the ground). -
Page 14: Accessories
Accessories RM5310 – RM5385 Accessories Available as accessories (not included in the scope of delivery): Description Item no. Ventilation grille LS100 with exhaust gas routing and winter cover white 9105900012 beige 9105900011 Ventilation grille LS200 without exhaust gas routing, with winter cover... -
Page 15: Technical Description
RM5310 – RM5385 Technical description Technical description Description The refrigerator is an absorption refrigerator. The refrigerator is designed to operate with different types of power and can be run on an AC power supply, a DC power supply or with butane/propane gas. For DC operation, the vehicle battery or a solar system built on the vehicle can be used. -
Page 16: Control Elements
2, page 3 Model number Product number Serial number Electrical connection values Gas pressure Control elements The RM5310, RM5330 and RM5380 refrigerators have the following control elements: No. in Description fig. 3, page 4 Energy selection switch Temperature controller... - Page 17 RM5310 – RM5385 Technical description The RM5385 refrigerator has the following illuminated control elements: No. in Description fig. 5, page 4 ON/OFF button Operating with AC power supply Gas operation Operating with DC power supply Automatic mode Setting the temperature...
-
Page 18: Operating The Refrigerator
Operating the refrigerator RM5310 – RM5385 Operating the refrigerator NOTICE! Make sure that you only put items in the refrigerator which may be kept at the selected temperature. Food may only be stored in its original packaging or in suitable containers. - Page 19 RM5310 – RM5385 Operating the refrigerator Switching on the refrigerator (RM5310, RM5330, RM5380) Operating with AC power supply ➤ Switch the refrigerator on by turning the power selection button to the position. Operating with DC power supply ➤ Switch the refrigerator on by turning the power selection button to the position.
- Page 20 Operating the refrigerator RM5310 – RM5385 Switching on the refrigerator (RM5385) ➤ Press and hold the button for two seconds. ✓ The refrigerator starts with the last type of power selected. Operating with AC power supply ➤ Press the button.
-
Page 21: Selecting The Temperature
For ambient temperatures of +15 °C – +25 °C, select the medium setting (fig. 7 1, page 5). The cooling unit operates in the optimum power range. RM5310, RM5330, RM5380 only: In DC power mode, the refrigerator works without thermostatic control (permanent operation). - Page 22 Operating the refrigerator RM5310 – RM5385 Information on storing food CAUTION! Only store heavy objects such as bottles or cans in the refrigerator door or on the bottom shelf. The refrigerator shelves are recommended for the following foods: No. in Food fig.
-
Page 23: Switching Off The Refrigerator
Replacing the 2-button door lock with the rotary door lock ➤ Replace the door lock as shown (fig. b, page 7). Switching off the refrigerator Proceed as follows: ➤ RM5310/RM5330/RM5380: Turn the power selector switch to the position. ➤ RM5385: Press and hold the button for three seconds. -
Page 24: Defrosting The Refrigerator
Operating the refrigerator RM5310 – RM5385 7.11 Defrosting the refrigerator NOTICE! Do not use mechanical tools to remove ice or to free objects frozen onto the device. NOTE Over time, frost will develop on the cooling fins inside the refrigerator. Once the layer of frost is about 3 mm thick, you should defrost the refrigerator. -
Page 25: Troubleshooting
➤ Mount the winter covers on both ventilation grilles (3). 7.13 Replacing the battery on the ignition (RM5310, RM5330, RM5380) Proceed as follows (fig. g, page 8): ➤ Using a screwdriver, press the cap on the battery igniter in two or three mm and turn it 90°... - Page 26 Troubleshooting RM5310 – RM5385 Problem Possible cause Suggested remedy With gas operation: The gas cylinder is empty. Replace the gas cylinder. The refrigerator does The gas valve is closed. Twist the valve open. not work. Air is in the supply line.
- Page 27 RM5310 – RM5385 Troubleshooting Displayed faults and signal tone (RM5385 only) Faults are indicated by the flashing of individual buttons on the control panel, a beep or a combination of both. Display Problem Suggested remedy The AC heating Contact the authorised flashing, element is defective.
-
Page 28: Cleaning And Maintenance
Cleaning and maintenance RM5310 – RM5385 Cleaning and maintenance WARNING! Always disconnect the refrigerator from the mains before you clean and service it. NOTICE! Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator. -
Page 29: Maintenance
RM5310 – RM5385 Maintenance Maintenance WARNING! Work on gas and electronic installations may only be performed by a certified specialist. NOTE Have the refrigerator serviced after the vehicle has been out of commission for a longer period of time. Contact customer service to do so. -
Page 30: Disposal
Disposal RM5310 – RM5385 Disposal WARNING! Children beware! Before disposing of your old refrigerator: Dismantle the drawers. Leave the shelves in the refrigerator so that children cannot climb inside. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. -
Page 31: Technical Data
RM5310 – RM5385 Technical data Technical data RM5310 RM5330 RM5380 RM5385 Voltage: 230 Vw, 12 Vg Gross capacity: 60 l 70 l 80 l 80 l Net capacity: 55 l 65 l 75 l 75 l Freezer compartment: Connection 125 W (230 Vw),... - Page 32 Dometic DO Brasil LTDA MEXICO Regional Office Avenida Paulista 1754, conj. 111 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa SP 01310-920 Sao Paulo Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park +55 11 3251 3352 Colonia Ciudad Satélite...
