Dometic RM 5310 Installation Instructions Manual

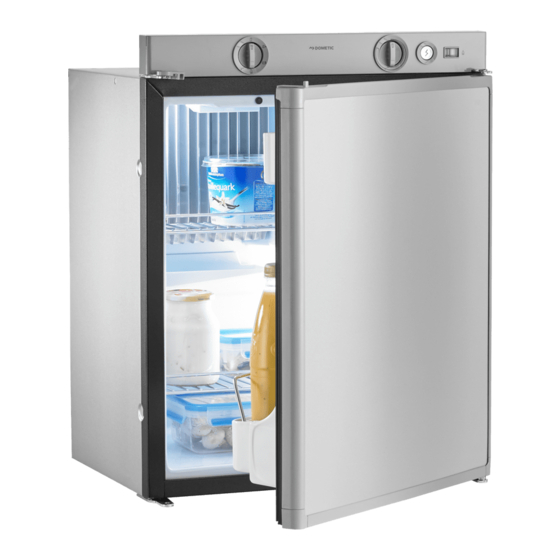

Absorption refrigerator for recreation vehicles
Hide thumbs
Also See for RM 5310:
- Operating instructions manual (20 pages) ,
- Operating manual (156 pages) ,
- Short operating manual (152 pages)
Related Manuals for Dometic RM 5310
Summary of Contents for Dometic RM 5310
- Page 1 Installation instructions Absorption Refrigerator for Recreation Vehicles RM 5310 RM 5330 RM 5380 MBA 11/2011 AUS / NZ Type C40 / 110 821 2690 - 99...
-
Page 2: Table Of Contents
Wiring diagrams ..............Dometic GmbH In der Steinwiese 16 D-57074 Siegen www.dometic.com © Dometic GmbH - 2011 - Subject to change without notice... -
Page 3: Unpacking And Transport
WARNING! WARNING! Most LP gas appliances used in recreational vehicles are vented to the outside of the vehicle. When parked close to a gasoline pump, it is possi- ble that the gasoline fumes could enter this type of DO NOT USE A FLAME TO CHECK appliance and ignite from the burner flame, FOR GAS LEAKS CAUSING A FIRE OR AN EXPLOSION. -
Page 4: General
No part of these instructions may be reprodu- bol) indicates a potentially hazardous situation ced, copied or utilised in any other way wit- which, if not avoided, may result in damage to the appliance. hout written authorisation by Dometic GmbH, Siegen. -
Page 5: Warranty
Dometic reserves the right to make rator. changes at any time which are deemed to be in the interest of improving the product and Environmental Tips safety. -
Page 6: Safety Instructions
Safety instructions 2.0 Safety instructions Application according to DANGER! regulations Never use an unshielded flame to check This refrigerator is designed for installation in gas bearing parts and pipes for leakage! recreation vehicles such as caravans or motorhomes. The appliance has been type- There is a danger of fire or explosion. -
Page 7: Description Of Model
Description of model 3.0 Description of model Refrigerator rating plate Model identification The rating plate is to be found on the inside of Example : the refrigerator. It contains all important details RM 5 3 1 0 of the refrigerator. You can read off from this the model identification, the product number and the serial number. -
Page 8: Technical Data
Description of model Technical data RM 5380 RM 5310 RM 5330 Fig. 2 Fig. 3 Fig. 4 Model Dimensions Gross capacity Rating details Consumption * Ignition H x W x D (mm) freezer mains/battery electricity/gas weight Piezo Automat Depth incl. door... -
Page 9: Installation Instructions
If the door/grille distance is between 25 mm The electrical installation must comply and 45 mm, we recommend installing a with national and local regulations. Dometic ventilation kit to achieve an optimal cooling performance in high ambient tempera- Electrical wiring regulations tures. -
Page 10: Side Installation With Floor-Roof Ventilation
Fig. 9 provided. Fig. 8 Dometic strongly recommends carrying this Another unfavourable method of rear installa- out using a flexible seal (in order to simplify tion is to install the air intake and exhaust gril- later removal and installation of the unit for les (Fig. -
Page 11: Draught-Proof Installation
Installation installation recess above the refrigerator. Affix Proposal 2 the this plate to the caravan wall, do NOT Fasten the sealing lips to a stop bar on the attach to the refrigerator ! rear side (1), e.g. by gluing. Attach the deflector plate so that the heated air escapes through the top ventilation grill into the open air and no heat build-up can be pro- duced. -
Page 12: Ventilation And Air Extraction Of The Refrigerator
Fig. 16 enters at the bottom, extracts the heat and exits through the upper vent grille (chimney Position ventilation grilles / RM 5310, 5330 effect). The upper ventilation grille should be positioned as high as possible above the condenser (1,2 , Fig.17). Install the lower... -
Page 13: Installing The Ventilation System
Installing the ventilation system Insert frame and screw into position 4.3.1 Ventilation systems Dometic recommends the A 1625 ventilation and flue gas extraction system which has been tested and approved for this purpose. Fig. 24 These ventilation grills provide the required open cross-section of at least 250 cm². -
Page 14: Exhaust Gas Duct And Installing The Fume Flue
Installation To install the ventilation grilles, cut two rectan- Exhaust gas duct and instal- gles (451 mm x 156 mm) in the outer wall of ling the fume flue the vehicle ( for position of the cuts, see point 4.2 ). The exhaust gas duct system must be made in such a manner as to achieve a complete extraction of combustion products to the out-... -
Page 15: Installation Recess
Installation 4.5.2 Recess dimensions Fig. 26 Fig. 25 Model RM 5310 Height Width Depth 620 mm 490 mm 450 mm Installation recess Model RM 5330 Height Width Depth The refrigerator must be installed draught- proof in a recess (also refer to Section "4.1.4"). -
Page 16: Securing The Refrigerator
Fig. 27 CAUTION! Decor panel dimensions : Always insert screws through the sleeves provided as otherwise components laid in foam, such as cables etc., could be dama- Model RM 5310 ged. Height Width Thickness 532 +/-1 mm 453 +/-1 mm max. -
Page 17: Gas Installation
Installation correct method of operation. In case the Gas installation appliance fails to operate correctly after all checks have been carried out, refer to the aut- horised service provider in your area. WARNING! The gas connection shall be carried out by specialised personnel* only. -
Page 18: Electrical Installation
12V DC power supply to be protected by a 2A fuse. Should the connection cable be dama ged, have it replaced by Dometic Customer Services or by qualified per sonnel to avoid hazards. CAUTION! If the appliance is installed in a caravan... -
Page 19: Terminal Strip
Installation 4.9.3 Terminal block Connections : mains connections Fig. 35 12V- connection appliance without interior lighting Fig. 36 12V- connection appliance with interior lighting Fig. 37 A = Ground heating element DC B = Positive connection, h.e. DC C = Ground interior lighting D = Positive connection, interior lighting... -
Page 20: Wiring Diagrams
Installation 4.9.4 Wiring diagrams Wiring diagram RM 5xx0 without interior lighting Fig. 38 Connections A = ground heating element 12VDC B = plus heating element 12VDC... - Page 21 Installation Wiring diagram RM 5xx0 with interior light Fig. 39 Connections A = ground heating element 12VDC B = plus heating element 12VDC C = ground interior light 12VDC D = plus interior light 12VDC...
- Page 24 www.dometic.com...
