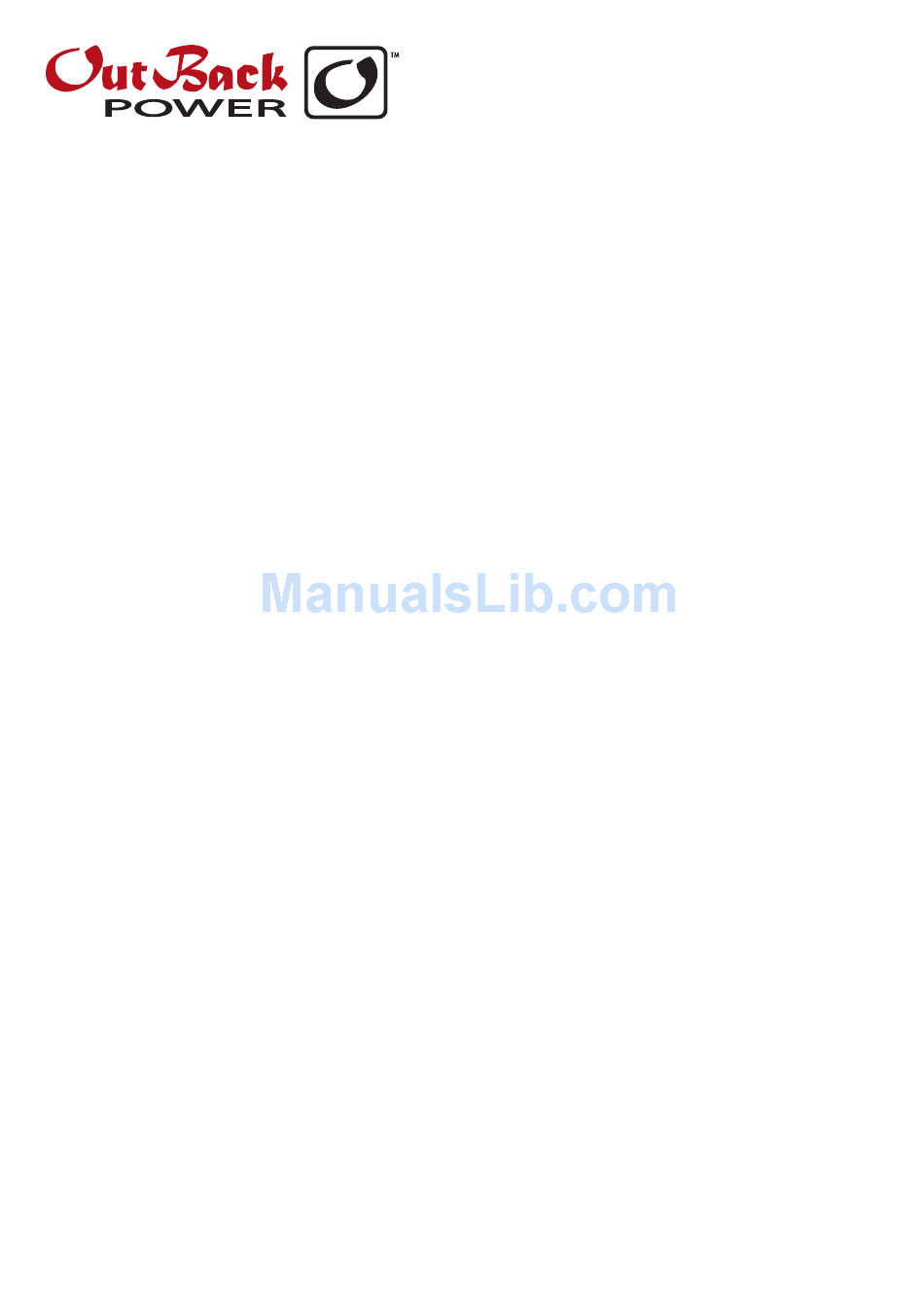

  • Page 1 International Series GTFX and GVFX Grid-Interactive Inverter/Charger Installation Manual...

  • Page 2: Contact Information

    USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK. Warranty Summary OutBack Power Systems Inc. warrants that the products it manufactures will be free from defects in materials and workmanship for a period of five (5) years subject to the conditions set forth in the warranty detail found inside the back cover of this manual.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS The International Series GTFX and GVFX Grid-Interactive Inverter/Charger ...............2 International Series GTFX and GVFX Inverter/Charger Models ....................2 Parts Included..........................................2 Safety Instructions........................................3 System Protection........................................5 DC Wiring Origination......................................5 AC Wiring Origination......................................6 AC Wiring Compartment Board..................................6 Low Voltage Terminals ......................................7 AC and DC Grounding Requirements.....................

  • Page 4: The International Series Gtfx And Gvfx Grid-Interactive Inverter/Charger

    Please read all of the following instructions and the instructions that come with any other OutBack components that make up your power system. Further instructions on individual FX set-ups as well as systems assemblies are included with the FLEXware manuals.

  • Page 5: Safety Instructions

    • Passing inspection • Requiring a licensed electrician to do the work when mandated OutBack Power Systems cannot be responsible for system failure, damages, or injury resulting from improper installation of their products. Use only the recommended DC and AC wire sizes or greater. Be sure all wires are in good condition.
  • Page 6 WARNING: EXPLOSION HAZARD. WORKING NEAR LEAD ACID BATTERIES CAN BE DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. Design the battery enclosure to prevent accumulation and concentration of hydrogen gas in “pockets” at the top of the enclosure. Vent the battery compartment from the highest point to the outside. A sloped lid can also be used to direct the flow of hydrogen to the vent opening. CAUTION To reduce risk of injury, charge only deep-cycle lead acid, lead antimony, lead calcium, gel cell or absorbed glass mat type rechargeable batteries.

  • Page 7: System Protection

    All wired electrical systems require circuit breakers or fuses for protection. OutBack offers both breakers and fuses for over- current protection. If they are provided by other vendors, they must be properly rated.

  • Page 8: Ac Wiring Origination

    AC WIRING ORIGINATION Lexan cover protects AC Wiring Compartment Board AC Wiring Board AC WIRING COMPARTMENT BOARD AC Terminal Block--secures AC connections to the FX using set screws ���������� • AC HOT OUT supplies power to the loads. �������������� • AC NEUTRAL OUT acts as neutral leg for loads supplied by the FX.

  • Page 9: Low Voltage Terminals

    LOW VOLTAGE TERMINALS ���������� �������������� Note: Keep Control ����������������� Wiring Terminal Block screws tight and the ����������������� block itself secured tightly Control Wiring to AC Board. Otherwise, ������������� Terminal Block the FX can malfunction. ��������� The Terminal Block can be Jumper unplugged for easier wire installation and removal/...

  • Page 10: Ac And Dc Grounding Requirements

    • For all installations, the negative battery conductor should be bonded to the grounding system at one (and only one) point in the system. • OutBack products are not designed for use in a positive grounded system. Please contact OutBack Technical Support for further information. the equipment ground on each is marked with this symbol: Box lug for grounding the FX chassis...

  • Page 11: Fx Parts And Accessories

    DC current shunt • Can be used with or without the DCA • This is an optional accessory. FW-ACA (AC CONDUIT ADAPTER) • Extends the AC wiring compartment • Connects to OutBack’s FLEXware enclosures • Protects and secures flexible cable with strain relief • Houses the FLEXware Surge Protector • Knockouts are intended for cables/strain relief • This is an optional accessory. TURBO FAN COVER • Included in place of a DCC on sealed FXs DCA (DC CONDUIT ADAPTER) • Allows the connection of two-inch TSC (Trade Size...

  • Page 12: Mounting

    It is easier for two people to install the FX due to its weight. • OutBack FX inverters can be mounted in any position, but they perform better in locations offering plenty of air circulation. • Note: If using an OutBack FLEXware Mounting Plate, avoid large air gaps behind the plate which can result in louder mechanical noise during inverting/charging under heavy loads. • Due to the variance in other mounting methods, OutBack only endorses the use of FLEXware or...

  • Page 13: Wire Connections

    This breaker should be sized to protect the wire you are using, but should not exceed the maximum AC input current of the FX model used in the system (see FX product specifications, beginning on page 36). The breaker should be installed inside of a metal chassis such as OutBack’s FLEXware series or an existing panel.

  • Page 14: Torque Requirements

    • Use crimped and sealed copper ring terminal lugs with 0.79 cm (5/16”) hole or compression-type lug to connect battery cables to DC terminals. Soldered cable lugs are also acceptable. • Use recommended cable sizes (see page 42) to reduce losses and ensure high performance of FX (smaller cables can reduce performance and possibly damage the unit). • Keep cables together (e.g., using a tie-wrap) as much as possible. • Ensure cables pass through the same knockout and conduit fittings. This helps to cancel the effects of self-induction in the cables. TORQUE REQUIREMENTS CONNECTION TORQUE AC and PV breakers to 2.48 Nm/22 inch-lbs...

  • Page 15: Battery Wiring Examples

    BATTERY WIRING EXAMPLES In renewable energy systems, batteries are connected to each other in one of three ways: • Series (voltage increases, amperage stays the same as a single battery) • Parallel (voltage stays the same as a single battery, amperage increases) • Series/Parallel (both voltage and amperage increase) 12 Vdc 12 Vdc 12 Vdc 12 Vdc 200 Amp-hours 200 Amp-hours 200 Amp-hours 200 Amp-hours 12 V + 12 V + 12 V + 12 V = 48 Vdc Amp-hours remain at 200 12 Vdc 12 Vdc...
  • Page 16 6 Vdc Battery Wiring Examples 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) SERIES/12 Vdc SYSTEM 12 Vdc INVERTER/CHARGER 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours SERIES STRING 1 CONNECTS TO SERIES STRING 1 INVERTER/CHARGER’S POSITIVE TERMINAL 6Vdc 6Vdc 200 Amp-Hours...
  • Page 17 6Vdc 6Vdc 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) SERIES/24 Vdc SYSTEM 24 Vdc INVERTER/CHARGER 6Vdc 6Vdc 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours SERIES STRING 1 SERIES STRING 1 CONNECTS TO INVERTER/CHARGER’S POSITIVE TERMINAL 6Vdc...
  • Page 18 6Vdc 6Vdc 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 6Vdc 6Vdc 6Vdc 6Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) SERIES/48 Vdc SYSTEM 48 Vdc INVERTER/CHARGER...
  • Page 19 12 Vdc Battery Wiring Examples 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) 24 Vdc INVERTER/CHARGER SERIES/24 Vdc SYSTEM 12 Vdc 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) 12 Vdc INVERTER/CHARGER PARALLEL/12 Vdc SYSTEM...
  • Page 20 12 Vdc 12 Vdc 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours DC DISCONNECT (FUSE OR CIRCUIT BREAKER) SERIES/48 Vdc SYSTEM 48 Vdc INVERTER/CHARGER 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours SERIES STRING 1 CONNECTS TO SERIES STRING 1 INVERTER/CHARGER’S POSITIVE TERMINAL...
  • Page 21 12 Vdc 12 Vdc 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours SERIES STRING 1 SERIES STRING 1 CONNECTS TO INVERTER/CHARGER’S POSITIVE TERMINAL 12 Vdc 12 Vdc 12 Vdc 12 Vdc 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours 200 Amp-Hours SERIES STRING 2 SERIES STRING 2 CONNECTS...
  • Page 22 NOTES:...

  • Page 23: Ac Wiring Notes

    AC WIRING NOTES AC HOT OUT • AC hot output conductor (brown) wire gauge must be sized to the breakers and loads. ���������� AC NEUTRAL OUT/AC NEUTRAL IN • Both neutral terminals are common with �������������� each other within the FX. • Only one neutral needs to connect at the ����������������� terminal if a separate common neutral bus bar is installed.

  • Page 24: Low Voltage Wiring

    LOW-VOLTAGE WIRING This six-position terminal block can be unplugged to make wiring easier and to simplify the removal and reinstallation of an FX. It must be securely and completely plugged ���������� in for proper FX functioning. Otherwise, operational errors can occur. ��������������...

  • Page 25: Auxiliary Output (Aux+ / Aux-)

    You want to confirm the system is in good working order. Should you decide to install an OutBack MATE at a later date, bear in mind the installed switch overrides the control provided by the MATE if the switch is set to OFF. If the switch is set to ON, the MATE will function normally and control the inverter(s).

  • Page 26: Rts, Mate/Hub Wiring

    ����������������� AC Wiring Compartment’s Lexan cover, fitting into a small indentation in the aluminum casting between ����������������� the battery terminals. ONLY USE THE OUTBACK RTS; OTHER BRANDS YIELD INCORRECT READINGS. ������������� **If the system has multiple FX inverters and/or ���������...

  • Page 27: Stacked Fx Systems

    • Three FX inverters can be stacked to supply three-phase power. This will provide the wattage of three units on a 230/400 Vac bus. • Parallel stacking requires the use of the OutBack HUB4. The HUB10 can be used if other devices need to be networked along with the inverters.

  • Page 28: Installation Types

    INSTALLATION TYPES SINGLE FX SYSTEM • All FX AC wiring must be sized to handle 30 amps AC or more. • A 30-amp input breaker must be used for all FX models. • A single FX can continuously power 2.0 kW to 3.0 kW of loads depending on which model is used. AC LOADS AC SOURCE...

  • Page 29: Parallel Dual Fx System

    PARALLEL DUAL FX SYSTEM • All AC wiring from the AC source and to the AC loads must collectively handle 60 amps AC or more. • All other AC wiring capacity must equal 30 amps AC. • A paralleled dual FX system can continuously power 4-6 kW of loads depending on which model is used. Note: Program the lowest-installed FX as Master (1-2ph MASteR) and the second FX as an out- Back L1 Slave (oB SLAVe L1).

  • Page 30: Parallel Quad Fx System

    PARALLEL QUAD FX SYSTEM • All AC wiring from the AC source and to the AC loads must collectively handle 100 amps AC or more. • All other AC wiring must handle a capacity of 30 amps AC. • This system can continuously power 8-12 kW of loads depending on which model is used. • Connecting more load than the continuous rating of the FX may cause breakers to trip or the FX to shut off its AC output.
  • Page 31 Parallel Quad System...

  • Page 32: 3-Phase System

    THREE-PHASE FX SYSTEM • This system produces 230 Vac per phase and 400 Vac from phase to phase. • All FX AC wiring must be sized to handle 30 amps AC or more. • This system can power continuously up to 9 kW of loads depending on which model is used. • Connecting more power than the continuous rating of the FX may cause breakers to trip or the FX to shut off its AC output. • The jumper in the HUB must be left in the standard position (usually called the “series/parallel” position) for three-phase configuration with International Series grid-tied models. (This instruction is specific for these FX models, and may conflict with the HUB Installation and User Guide.) Note: Program the bottom FX as Master and the two upper FXs as 3-phase Slaves (3p Classic B and 3p Classic C).
  • Page 33 Three-Phase System...
  • Page 34 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 35: Generator Auto Start

    GENERATOR AUTO START The following schematic shows how to hook up a relay that interfaces with the two-wire start generator. Three-wire start generators require an adapter like the Atkinson GSCM available at www.atkinsonelectronics.com. TWO WIRE START GENERATOR HOOK UP GENERATOR INVERTER 12V RELAY ON/OFF...

  • Page 36: Multiple Ac Sources

    MULTIPLE AC SOURCES WITH THE FX INVERTER When a system has the option of using either a generator or the utility grid as their AC input: • Both the AC “Hot” and AC “Neutral” lines must be connected to the appropriate source. • A connection can be made using a single-pole, double-throw switch (available from electrical component suppliers) which has one connection each for AC hot wire. • This switch must be rated to handle the system’s maximum AC voltage and AC current.

  • Page 37: Installation Check List

    System installed according to local codes? System inspected? System permanently grounded? Did the installer use OutBack recommended wire type and gauge adjusted for temperature ratings and length? All AC wiring rated for 75 °C or higher? Battery cables rated 75 °C or higher? 10.0 mm...

  • Page 38: Specifications

    SPECIFICATIONS GTFX2012E Nominal DC Input Voltage Range 12 Vdc Output AC Voltage / Frequency 230 Vac / 50 Hz Continuous Power Rating at 25 °C Ambient 2000 VA Continuous AC RMS Output at 25 °C 8.7 amps AC Idle Power - Full AC Output ≈...
  • Page 39 GTFX2348ET Nominal DC Input Voltage Range 48 Vdc Output AC Voltage / Frequency 230 Vac / 50 Hz Continuous Power Rating at 25 °C Ambient 2300 VA Continuous AC RMS Output at 25 °C 10.0 amps AC Idle Power - Full AC Output ≈...
  • Page 40 GVFX2612E Nominal DC Input Voltage Range 12 Vdc Output AC Voltage / Frequency 230 Vac / 50 Hz Continuous Power Rating at 25 °C Ambient 2600 VA Continuous AC RMS Output at 25 °C 11.3 amps AC Idle Power - Full AC Output ≈...
  • Page 41 GVFX3048E Nominal DC Input Voltage Range 48 Vdc Output AC Voltage / Frequency 230 Vac / 50 Hz Continuous Power Rating at 25 °C Ambient 3000 VA Continuous AC RMS Output at 25 °C 13.0 amps AC Idle Power - Full AC Output ≈...

  • Page 42: Voltage, Power, And Frequency Ranges

    An FX Series Inverter/Charger’s model number indicates its maximum continuous output power by changing the last two digits to zeros. For instance, a GTFX2024ET has a maximum continuous output power of 2000 VA (volt-amps). GTFX2012E 2000 VA GTFX2024E 2000 VA...

  • Page 43: Current Ranges

    The battery charger has an efficiency in excess of 80%. Other factors, such as cable loss, might reduce efficiency. MAXIMUM AND DEFAULT AC INPUT AND DC (bulk stage) OUTPUT VALUES GTFX2012E AC Max = 6 Aac (Default = 5 Aac) DC Max = 100 Adc...

  • Page 44: Recommended Dc Breaker And Cable Sizes

    If damaged or malfunctioning, the FX should be repaired by a qualified user, installer, or service center following OutBack Power Systems’ instructions and guidelines. Please contact your energy dealer for assistance. Incorrect repairs and/or reassembly risks malfunction, electric shock or fire.

  • Page 45: Fx Default Values

    FX Default Values (subject to change with FX upgrades) 12 Vdc System DEFAULT MINIMUM MAXIMUM Charger Float Voltage 13.6 Vdc 12 Vdc 15 Vdc Absorb Voltage 14.4 Vdc 13 Vdc 16 Vdc EQ Voltage 14.6 Vdc 14 Vdc 17 Vdc ReFloat 12.5 Vdc 12 Vdc...
  • Page 46 24 Vdc System DEFAULT MINIMUM MAXIMUM Charger Float Voltage 27.2 Vdc 24 Vdc 30 Vdc Absorb Voltage 28.8 Vdc 26 Vdc 32 Vdc EQ Voltage 29.2 Vdc 28 Vdc 34 Vdc ReFloat 25 Vdc 24 Vdc 26 Vdc LBCO 21 Vdc 18 Vdc 24 Vdc LBCI...
  • Page 47 48 Vdc System DEFAULT MINIMUM MAXIMUM Charger Float Voltage 54.4 Vdc 48 Vdc 600 Vdc Absorb Voltage 57.6 Vdc 52 Vdc 64 Vdc EQ Voltage 58.4 Vdc 56 Vdc 68 Vdc ReFloat 50 Vdc 48 Vdc 52 Vdc LBCO 42 Vdc 36 Vdc 48 Vdc LBCI...

  • Page 48: Comparative Wire Sizes

    COMPARATIVE WIRE SIZES The following chart contains information on wire sizes, the DC resistance of the wires and the corresponding diameters and areas of these wires. This information can be used to calculate the voltage drop of the wires or to find an equivalent wire size. SIZE CROSS-SECTIONAL AREA APPROXIMATE DIAMETER...
  • Page 49 • Any product whose serial number has been altered, defaced or removed; or • Any other event not foreseeable by OutBack. OutBack’s liability for any defective Product, or any Product part, shall be limited to the repair or replacement of the Product, at OutBack’s discretion. OutBack does not warrant or guarantee workmanship performed by any person or firm installing its Products. This Warranty does not cover the costs of installation, removal, shipping (except as described below), or reinstallation of Products or parts of Products.

  • Page 50: Troubleshooting

    Authorization (RMA) number. Troubleshooting In the event of a Product failure, the customer will need to work with an OutBack Technical Support representative to perform the necessary troubleshooting. This is a required step before a return can be performed. Internal troubleshooting requires a qualified technician to be present at the site of the Product, with a quality voltmeter that measures both DC and AC.

  • Page 51: Warranty

    If Product fails in ninety (90) or fewer days from original purchase date, OutBack will replace with a new Product. If Product fails after ninety (90) days and up to expiration of warranty, OutBack will, at its discretion, either repair and return a Product, or ship a replacement Product.
  • Page 52 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 53: Product Registration

    Product Registration Your purchase of an OutBack Power Systems product is an important investment. Registering our products will help us maintain the standard of excellence you expect from us in terms of performance, quality and reliability. Please take a moment to register and provide us with some important information.
  • Page 54 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 55 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 56 Corporate Office European Sales Office 19009 62nd Avenue NE +34.93.654.9568 Arlington, WA USA 1.360.435.6030 www.outbackpower.com 900-0101-01-00 REV A...
