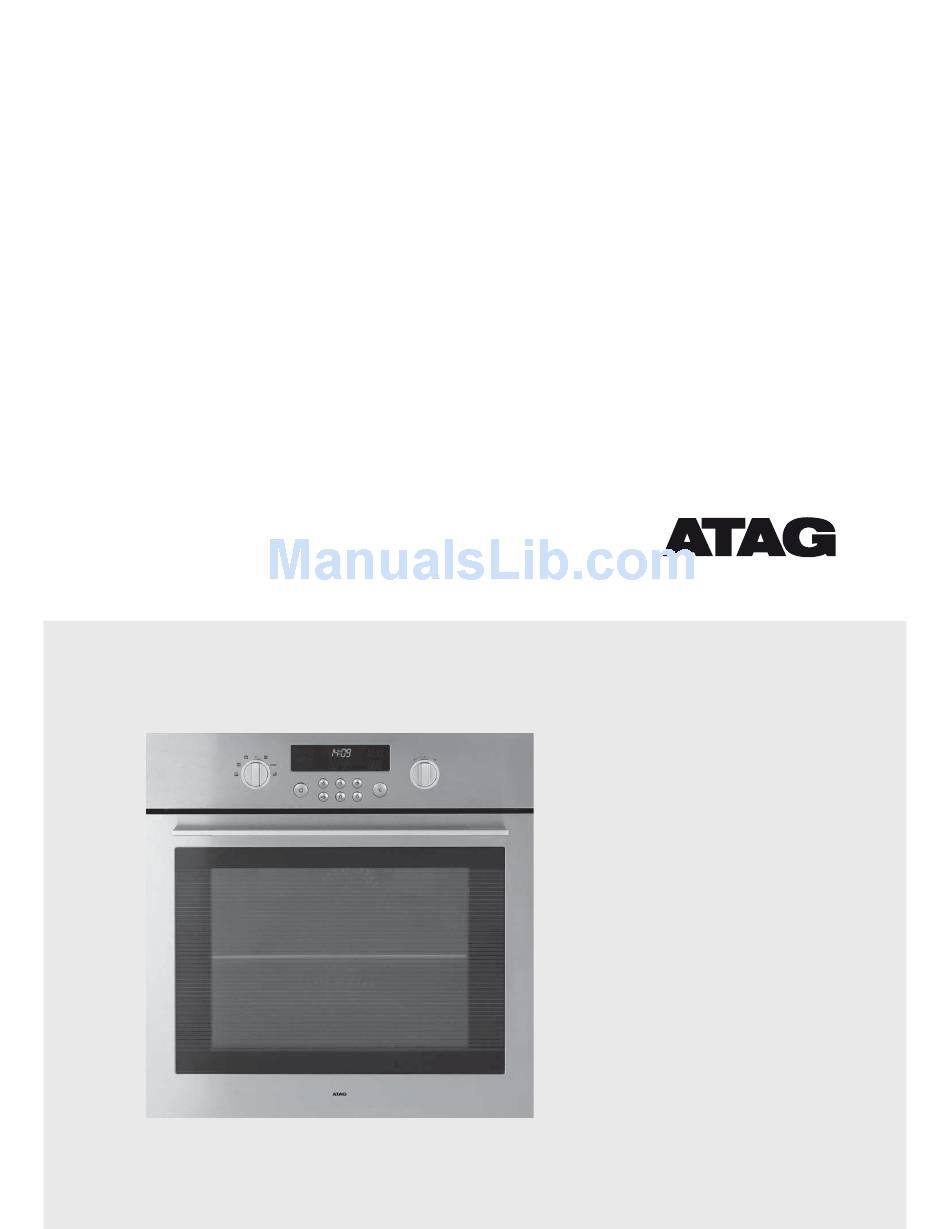

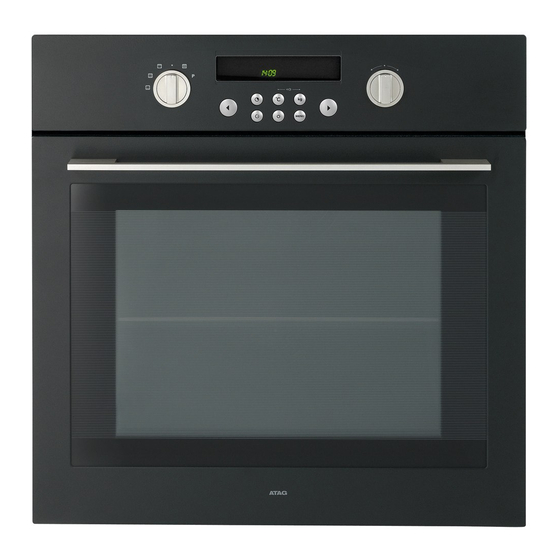

- Page 1 DX6211B DX6211F/DX6292F DX6292K/DX6211K manual...
-
Page 2: Table Of Contents
8 Auto Menu Programmes for DX6211F/DX6292F ......37 - 39 9 Auto Menu Programmes for DX6211B/DX6211K/DX6292K ....40 - 41... - Page 3 Attaching the oven door ..........47 Oven door glass (only for DX6211B/DX6211F/DX6292F) ..... . . 48 Oven door glass (only for DX6211K/DX6292K) .
-
Page 4: Control Panel
Control Panel DX6211B/DX6211F/DX6292F DX6211K/DX6292K 1. CAVITY SELECT KNOB 7. CLOCK BUTTON 2. WINDOW DISPLAY 8. KITCHEN TIMER BUTTON 3. TIME / TEMP CONTROL KNOB 9. COOK TIME BUTTON 4. OVEN FUNCTION BUTTON 10. END TIME BUTTON 5. LAMP BUTTON 11. TEMPERATURE BUTTON 6. -
Page 5: Oven Features
Oven Features 1. Control panel 7. Level 4 2. Telescopic slide guide 8. Level 3 3. Oven light 9. Level 2 4. Glass door 10. Level 1 5. Top heating elements 11. Door handle 6. Level 5 Note Shelf levels are numbered from the bottom up. ●... -
Page 6: Accessories
Accessories The following accessories are provided with your oven: Front Front Baking tray Deep baking tray The baking tray could be used for the The deep baking tray should be used preparation of cakes, cookies and for roasting or collecting meat juices other pastries. -
Page 7: Using The Accessories
Using The Accessories Note When using the deep baking tray or the baking tray to collect drippings from cooking ● foods, ensure that the tray is properly placed in the telescopic slide guides. Allowing these accessories to contact the bottom surface of the oven can damage the enamel of the sur- face. - Page 8 Using The Accessories (Continued) Telescopic slide guides (only for DX6211F/DX6292F) Telescopic slide guides and other oven accessories might get very hot! Use kitchen gloves or other suitable protection! Telescopic slide guides are located inside the oven to the right and to the left in two different levels. To insert the baking tray or wire rack, first slide out the telescopic guides for one particular ●...
-
Page 9: Using This Manual
Repairs should be performed by a licensed technician only. Improper repair may result ● in considerable danger to you and others. If your oven needs repair, contact the Atag Customer Service or your dealer. If the supply cord is defective, it must be replaced by a special cord or assembly available ●... -
Page 10: Safety During Operation
Safety Instructions (Continued) Safety during operation This oven has been designed only for the cooking of household foods. ● During use, the oven interior surfaces become hot enough to cause burns. Do not touch ● heating elements or interior surfaces of the oven until they have had time to cool down. Never store flammable materials in the oven. -
Page 11: Installation And Connection
Installation and Connection Safety instructions for the installation This oven may be installed only by an approved electrician. The installer is responsible for connecting the appliance to the mains and in so doing for observing the relevant safety regulations. Ensure protection from live parts when installing the oven. ●... -
Page 12: Connecting To The Mains Power Supply
Installation and Connection (Continued) Fix the oven on both sides using screws. ● After installation, remove the vinyl ● protective film from the door to the appliance and the protective film from the interior surfaces of the oven. Connecting to the mains power supply Electrical connections must be made as per the connection plate fixed to the back of the appliance by an electrical fitter who... -
Page 13: Before You Begin
Before You Begin Setting the Clock When power is first supplied to the oven, the display on the control panel will light briefly. After 3 seconds, you will see ‘12:00’ in the display. Press the Clock Button. Example: to set 1:30. The ‘... -
Page 14: Initial Cleaning
Before You Begin (Continued) Initial cleaning Clean the oven thoroughly before using for the first time. Do not use sharp or abrasive cleaning materials. These could damage the oven surface. ● For ovens with enamel fronts, use commercially available cleaning agents. To clean the oven 1. -
Page 15: Oven Use
Oven Use Oven modes The following table represents the various oven modes and settings of your oven. Use the cooking guide tables for these modes in the following pages as guidelines for cooking. Conventional Food is heated by top and bottom heating elements. This setting is suitable for baking and roasting. -
Page 16: Setting The Divider Mode
Oven Use (Continued) Setting the divider mode For upper, twin and lower modes, insert the divider at the ‘OFF’ position of Divider Select Knob. For single mode, remove the divider at the ‘OFF’ position. Turn the Divider Select Knob to Press the Oven Function Button. - Page 17 Oven Use (Continued) Upper mode Only the upper heating element operates. The divider should be inserted. Convection Top Heat + Convection Large Grill You can choose to operate the lower mode also after some time (see Twin mode). Lower mode Only the lower heating element operates.
-
Page 18: Twin Mode
Oven Use (Continued) Twin mode The upper and lower modes operate at the same time. It is possible to set which mode activates first. When one of the dishes has finished cooking in twin mode and you would like to change the cooking time or temperature of the other partition, turn the Divider Select Knob to select the mode (upper or lower) that you would like to continue operating. -
Page 19: Single Mode
Oven Use (Continued) Single mode Convection Top Heat + Convection Conventional Large Grill Grill Bottom Heat + Convection... -
Page 20: Setting The Oven Temperature
Oven Use (Continued) Setting the oven temperature In single, upper and lower modes Press the Temperature Button. Turn the Time / Temp Control Knob to adjust the temperature in incre- ments of 5 °C. Single Mode 40 °C – 250 °C (40 °C –... -
Page 21: Switching The Oven Off
Oven Use (Continued) Switching the oven off To switch the oven off, turn the Divider Select Knob to the ‘Off’ position. End time You can set the end time during cooking. In single, upper and lower modes Press the End Time Button. Turn the Time / Temp Control Knob Example: current time is 12:00. -
Page 22: End Time
Oven Use (Continued) End time You can set the end time during cooking. In twin mode End times for the upper and lower modes can be selected using the End Time Button and the Time / Temp Control Knob. Press the End Time Button twice Turn the Time / Temp Control Knob (lower mode). -
Page 23: Cook Time
Oven Use (Continued) Cook time You can set the cook time during cooking. In single, upper and lower modes Press the Cook Time Button. Turn the Time / Temp Control Knob to set the desired cook time. Press the Cook Time Button. The oven operates with the selected cook time unless the Cook Time Button is pressed within 5 seconds. -
Page 24: Cook Time
Oven Use (Continued) Cook time You can set the cook time during cooking. In twin mode Cook times for the upper and lower modes can be selected by using the Cook Time Button and the Time / Temp Control Knob. Press the Cook Time Button twice Turn the Time / Temp Control Knob (lower mode). -
Page 25: Delayed Start
Oven Use (Continued) Delayed start Case 1 - Cook time is entered first If the end time is entered after the cook time has already been set (see page 23), the cook time and the end time are calculated and if necessary the oven sets a delayed start point. Press the End Time Button. -
Page 26: Delayed Start
Oven Use (Continued) Delayed start Case 2 - End time is entered first If the cook time is entered after the end time has already been set, the cook time and the end time are calculated and if necessary the oven sets a delayed start point. Press the Cook Time Button. -
Page 27: Kitchen Timer
Oven Use (Continued) Kitchen timer Press the Kitchen Timer Button Turn the Time / Temp Control Knob once. to set the desired time. ‘ ‘ flashes. Example: 5 minutes Press the Kitchen Timer Button to start the kitchen timer. When the set time has elapsed, an audible signal sounds. -
Page 28: Child Safety Function
Oven Use (Continued) Child safety function Press the Child Lock Button. Hold Press the Child Lock Button. Hold for for 3 seconds. ( ) will appear in 3 seconds again to unlock. the display field. When locked, all buttons and knobs except the Divider Select Knob and the Child Lock ●... -
Page 29: Auto Cook
Oven Use (Continued) Auto Cook Turn the Divider Select Knob to Auto Press the Oven Button. Cook. Select the desired recipe by turning Select the desired weight by turning the Time/Temp control knob to the the Time/Temp control knob to the right and left. -
Page 30: Oven Functions
Oven Functions 1. Conventional The conventional function is ideal for baking and roasting foods arranged on one rack. Both the top and bottom heating elements operate to maintain the oven temperature. We recommend to preheat the oven in conventional mode. Temperature Food Item Shelf Level... -
Page 31: Top Heat + Convection
Oven Functions (Continued) 2. Top Heat + Convection The top heating element is in operation and the fan operates to constantly circulate the hot air. We recommend to preheat the oven with Top Heat + Convection mode. Temperature Time Food Item Shelf Level Accessory (°C) -
Page 32: Convection
Oven Functions (Continued) Convection This function bakes foods placed on up to three shelves and is also appropriate for roasting. Cooking is achieved by the heating element on the rear wall and the fan distributes the heat. We recommend to preheat the oven in convection mode. Temperature Time Food Item... -
Page 33: Large Grill
Oven Functions (Continued) 4. Large Grill The large grill function grills large quantities of flat foods, such as steaks, schnitzels and fish. It is also suitable for toasting. Both the top heating element and the grill are on in this mode. We recommend to preheat the oven using Large Grill mode. -
Page 34: Small Grill
Oven Functions (Continued) 5. Small Grill This setting is for grilling smaller amounts of flat foods, such as steaks, schnitzels, fish and toast, placed in the middle of the tray. Only the top element is in operation. Put food in the centre of accessory. -
Page 35: Bottom Heat + Convection
Oven Functions (Continued) 6. Bottom Heat + Convection The Bottom Heat + Convection mode is for recipes calling for a moist topping and a crisp base, as with foods like pizzas, quiches lorraine, German-style open fruitcakes and cheesecakes. We recommend to preheat the oven in Bottom Heat + Convection mode. Time Food Item Shelf Level... -
Page 36: Twin Mode
Oven Functions (Continued) 7. Twin Mode Using twin mode you can cook two different food items in your oven. When cooking in upper and lower cavity you can use different temperatures, cooking modes and cooking times. For example, you can grill steaks and bake gratin simultaneously. Using the divider, you can cook gratin in the lower and steaks in the upper part of the oven. -
Page 37: Auto Menu Programmes For Dx6211F/Dx6292F
Oven Functions (Continued) 8. Auto Menu Programmes for DX6211F/DX6292F The following table presents 27 Auto Programmes for Cooking, Roasting and Baking. Those can be used in the single cavity of your oven. Always remove the divider. It contains its quantities, weight ranges and appropriate recommendations. Cooking Modes and times have been pre-programmed for your convenience. - Page 38 Oven Functions (Continued) Food Item Weight/kg Accessory Shelf Level 1. 1.0 - 1.1 Roast wire rack Whole Chicken 2. 1.2 - 1.3 Deep baking tray Brush whole chicken with oil and spices and put on roast wire rack. Turn over, as soon as the oven beeps.
- Page 39 Oven Functions (Continued) Food Item Weight/kg Accessory Shelf Level Apple Pie 1. 1.2 - 1.4 Wire rack Prepare apple pie (Dutch style) in a round black metal dish with a diameter 24 cm. 1. 0.5 - 0.6 Bundt Cake 2. 0.7 - 0.8 Wire rack 3.
-
Page 40: Auto Menu Programmes For Dx6211B/Dx6211K/Dx6292K
Oven Functions (Continued) 9. Auto Menu Programmes for DX6211B/DX6211K/DX6292K The following table presents 16 Auto Programmes for Cooking, Roasting and Baking. Those can be used in the single cavity of your oven. Always remove the divider. It contains its quantities, weight ranges and appropriate recommendations. Cooking Modes and times have been pre-programmed for your convenience. - Page 41 Oven Functions (Continued) Food Item Weight/kg Accessory Shelf Level Loaf Cake 1. 0.7 - 0.8 Wire rack Put dough into a rectangular, buttered, black metal baking dish, with a length of 30 cm. Apple Pie 1. 1.2 - 1.4 Wire rack Prepare apple pie (Dutch style) in a round black metal dish with a diameter 24 cm.
-
Page 42: Cleaning And Care
Cleaning and Care Pyrolitic Self Cleaning (only for DX6211K/DX6292K) This mode is for cleaning the oven automatically. It burns the leftover grease in the oven so that it can be wiped out when the oven cools down. During the Pyrolitic Self Cleaning the oven door is locked automatically. When the oven temperature heats up to 300 °C, the door will Door locking ( ) be locked automatically for safety. -
Page 43: Aqua Cleaning
Cleaning and Care (continued) Aqua cleaning Remove all accessories from the oven, including the telescopic slide guides (see page 51). Pour approximately 400 ml (3 / 4 pint) of water onto the bottom of the empty oven. Use normal water only, no distilled water. Close the oven door. -
Page 44: Aqua Cleaning
Cleaning and Care (continued) After deactivating the Aqua Cleaning Tips Take care when opening the door before the end of the steam cleaning procedure; ● the water on the bottom is hot. Never leave the residual water in the oven for any length of time, for example, overnight. ●... -
Page 45: Rapid Drying
Cleaning and Care (Continued) Warning Make sure the oven and accessory is cool before cleaning. ● Do not use high - pressure water cleaners or steam jet cleaners to clean the oven. ● Rapid drying 1. Leave the oven door ajar at an angle of approximately 30°. 2. -
Page 46: Cleaning The Oven Door
Cleaning and Care (Continued) Cleaning the oven door For normal use, the oven door should not be removed but if removal is necessary, for example, for cleaning, follow these instructions. The oven door is heavy. Removing the door 1. Flip open the clips at both hinges. 2. -
Page 47: Attaching The Oven Door
Cleaning and Care (Continued) Attaching the door 1. With the clips still flipped open, align the door hinges into the hinge holes. 2. Rotate the door toward the horizontal line and flip the clips closed. The hinge is normally inserted. Hinge Hinge hole... -
Page 48: Oven Door Glass (Only For Dx6211B/Dx6211F/Dx6292F)
Cleaning and Care (continued) Oven door glass (only for DX6211B/ DX6211F/DX6292F) The oven door is equipped with three sheets of glass placed against each other. The inner & middle sheets can be removed for cleaning. WARNING: Whenever the door is separated from the oven, the clips should be flipped open. -
Page 49: Oven Door Glass (Only For Dx6211K/Dx6292K)
Cleaning and Care (Continued) Oven door glass (only for DX6211K/DX6292K) The oven door is equipped with four sheets of glass placed against each other. The inner & middle sheets can be removed for cleaning. WARNING Whenever the door is separated from the oven, the clips should be flipped open. ●... - Page 50 Cleaning and Care (Continued) 5. Detach the glass #3 from the door Glass #3 Door bracket Spring bracket (Right and Left) Glass #1 Glass #2 Glass #3 Glass #4 Clean the sheets with warm water or washing-up liquid and polish dry with a soft clean ●...
-
Page 51: Cleaning The Telescopic Slide Guides
Cleaning and Care (Continued) Telescopic slide guides To clean the interior of the oven, the Telescopic slide guides can be removed. Detaching the Telescopic slide guides Press central part of Rotate the telescopic Pull the telescopic the telescopic slide slide guide by slide guide out of guide top portion. -
Page 52: Cleaning The Top Heater (Only For Dx6211B/Dx6211F/Dx6292F)
Cleaning and Care (Continued) Cleaning the top heater (only for DX6211B/ DX6211F/DX6292F) Remove the upper nut circular by The front of the top heater inclines turning it anti-clockwise while holding downwards. the top of the heater. When the cleaning has been done,... -
Page 53: Changing The Lamp
Protect the oven light bulb and the glass cap by laying a cloth on the bottom of the oven ● compartment. Bulbs can be purchased from the ATAG Customer Service. ● Replacing the rear oven lamp and cleaning the glass cap 1. -
Page 54: Troubleshooting
Troubleshooting If you have problems with your oven, try the solutions suggested below. They may save you the time and inconvenience of an unnecessary service call. What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: The oven may not be switched on. -
Page 55: Error And Safety Codes
The usage of the divider is not correct. Refer to the ‘Setting the divider mode’ (see page 16). For upper, twin and lower mode, the divider should be inserted, and for single mode, the divider should be eliminated. If any of these errors occur, please contact ATAG Customer Service. -
Page 56: Technical Specifications
Technical Specifications Model DX6211B/DX6211F/DX6292F DX6211K/DX6292K Power Source 230 V ~ 50 Hz 230 V ~ 50 Hz Output Rating max. 3650 W max. 3650 W Dimensions (W x H x D) 598 x 595 x 566 mm 598 x 595 x 566 mm... - Page 57 Note...
- Page 58 Note...
- Page 59 Note...
- Page 60 Het toestel-identificatieplaatje bevindt zich aan de binnenkant van het toestel. La plaque d’identification de l’appareil se trouve sur l’intérieur de l’appareil. Das Gerätetypenschild befindet sich an der Innenseite des Gerätes. The appliance identification card is located on the inside of the appliance. Plak hier het toestel-identificatieplaatje.
